Comprehensive Guide On How To Compression Test A Diesel Engine

Performing a compression test on a diesel engine requires a high-pressure gauge capable of handling readings up to 1000 PSI, as diesel powerplants operate at compression ratios between 15:1 and 22:1. This diagnostic procedure measures the mechanical integrity of the cylinders, valves, piston rings, and head gaskets to diagnose hard starting, excessive blow-by, or power loss.

Preparation and Tooling Requirements for Diesel Compression Testing

Executing a reliable compression test on a compression-ignition engine demands specialized heavy-duty instrumentation compared to a standard gasoline engine. Because diesel engines rely on extreme heat generated by air compression to self-ignite fuel, minor deviations in sealing or mechanical wear cause significant drops in operating efficiency. Technicians must prepare the workspace, ensure the engine is at the correct temperature, and disable auxiliary systems before cranking.

• Essential Gear, Tools, and Materials:

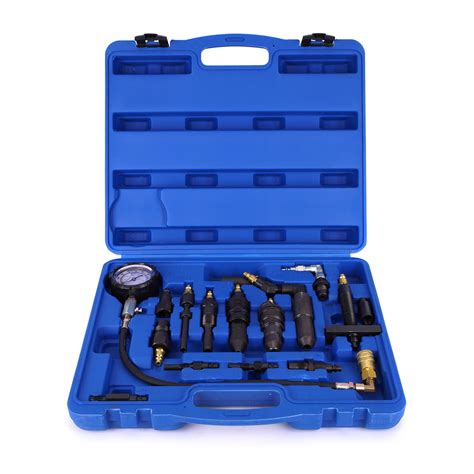

  • Heavy-duty diesel compression tester rated to at least 1000 PSI with a high-pressure hose and quick-disconnect fittings.
  • Vehicle-specific glow plug adapters or fuel injector adapters (dummy injectors) matching thread pitch and reach.
  • A remote starter switch or auxiliary relay jumper wire to crank the engine safely from the engine bay.
  • A fully charged 12V or 24V auxiliary jump pack to maintain consistent cranking speed (minimum 250 RPM).
  • Basic hand tools (ratchets, extensions, deep sockets, torque wrench) for removing intake plumbing, glow plugs, or injectors.
  • Clean shop rags, compressed air for blowing out debris around glow plug wells, and a torque wrench for reassembly.
• Prerequisite Knowledge and Standards:


  • Thorough understanding of high-pressure fuel systems, common rail safety, and electrical disconnects.
  • Factory service manual access to verify specific manufacturer baseline compression numbers and maximum allowable variance across cylinders.
• Estimated Budget and Duration Benchmarks:


  • Professional kit rental or purchase ($100 to $400 depending on adapter coverage); time investment of 2 to 4 hours depending on intake manifold and glow plug accessibility.

Step-by-Step Diesel Compression Testing Workflow

Step 1: Engine Warm-Up and Safety Prep

Bring the diesel engine up to standard operating temperature (approximately 180°F / 82°C) by running it for 15 to 20 minutes if possible, as this allows metal components to expand to running clearances. Shut down the engine, disconnect the negative battery terminals to prevent electrical shorts, and remove any decorative engine covers or intake piping blocking access to the cylinder head.

Warning: Never perform a compression test on a running engine. Ensure the fuel injection system is entirely disabled so that un-atomized fuel is not sprayed into the engine bay or exhaust stream during cranking.

Step 2: Disable Fuel Delivery and Ignition Sources

Disconnect the electrical connectors from the electronic fuel injection (EFI) pump, common rail fuel injectors, or remove the fuel shut-off solenoid fuse. For mechanical injection systems, secure the fuel rack in the no-fuel or stop position. This step prevents the engine from accidentally starting and ensures that raw fuel does not wash down the cylinder walls, which would artificially lower compression readings.

Step 3: Remove Glow Plugs or Injectors

Thoroughly clean the area surrounding each glow plug or fuel injector using compressed air and a vacuum to prevent carbon or debris from falling into the combustion chambers. Carefully remove all glow plugs or injectors from every cylinder simultaneously to allow the starter motor to spin the engine freely without resting against un-tested compression loads. Keep the removed components organized in order of their cylinder numbers.

Pro-Tip: Apply a small amount of penetrating fluid to stubborn, carbon-locked glow plugs hours before starting the job to prevent shearing the threaded tips off inside the cylinder head.

Step 4: Install the Compression Tester Adapter

Thread the correct vehicle-specific adapter securely into the first target cylinder's glow plug or injector port. Tighten the adapter by hand and use the appropriate tool to snug it down firmly, ensuring the built-in O-ring or copper crush washer forms an airtight seal. Connect the high-pressure compression gauge hose directly to the adapter quick-connect fitting.

Step 5: Crank and Record Baseline Readings

Connect the remote starter switch to the starter solenoid or have an assistant crank the engine. Allow the engine to crank continuously for 5 to 7 compression strokes (typically 3 to 5 seconds), watching the gauge needle climb rapidly until it stabilizes at peak pressure. Record the maximum value shown on the gauge, then depress the pressure release valve to reset the gauge. Repeat this exact process sequentially for every cylinder in the firing order.

Step 6: Perform a Wet Compression Test (If Needed)

If any cylinder registers a reading significantly below the manufacturer's threshold, perform a wet test to isolate the failure point. Squirt approximately one teaspoon of clean engine oil directly into the low-compression cylinder through the adapter hole, then immediately repeat the cranking procedure. If the pressure rises substantially, worn or stuck piston rings are the primary culprit; if the pressure remains low, the issue lies in leaking valves, a damaged head gasket, or a cracked head.

Common Testing Pitfalls and Field Fixes

• Root Cause: Low cranking RPM caused by a weak starter or discharged battery resulting in falsely depressed pressure numbers.


  • Actionable Fix: Connect a heavy-duty jump pack or battery charger in supply mode, ensure battery terminals are clean, and verify starter amperage draw before re-testing.
• Root Cause: Air leakage past the adapter fitting due to a missing, worn, or damaged sealing washer.


  • Actionable Fix: Replace the copper sealing crush washer or rubber O-ring on the adapter and torque down securely. Listen for hissing sounds during the cranking phase.
• Root Cause: Carbon buildup on valve seats preventing complete valve closure during the compression stroke.


  • Actionable Fix: Run an induction cleaning service, use high-grade fuel detergents, or remove the cylinder head for a professional valve job and decarbonization.
• Root Cause: Restricted airflow through a clogged air filter or blocked intake manifold runner during the intake stroke.


  • Actionable Fix: Remove all upstream intake obstructions and clean the intake plenum thoroughly before conducting diagnostic evaluations.

Frequently Asked Questions

What is a good compression pressure for a diesel engine?

Most modern diesel engines operate healthily with compression pressures falling between 350 and 550 PSI, depending on the specific engine design and forced induction configuration. Always consult the factory service manual for the exact baseline specification of your engine model.

Why must all glow plugs be removed during the test?

Removing all glow plugs ensures that the starter motor can turn the engine crankshaft at a consistent, high RPM across every stroke. If only one glow plug is removed at a time, the remaining cylinders will fight against internal compression, dragging down the cranking speed and skewing the diagnostic data.

Can I test compression through the fuel injector ports?

Yes, using dummy fuel injector adapters is standard practice on direct-injection diesel engines that lack glow plugs or where glow plugs are inaccessible. These adapters thread directly into the cylinder head using the factory clamp locations and replicate the exact seating depth of the original injectors.

What causes a high variance between cylinders?

A variance greater than 10% to 15% between the highest and lowest cylinder usually indicates localized mechanical wear, such as burnt valves, scored cylinder walls, stuck piston rings, or a blown head gasket separating adjacent cylinders. Wet testing helps differentiate between ring wear and valve train leaks.

How do I reset the engine computer after testing?

Clearing diagnostic trouble codes (DTCs) triggered by disconnecting the fuel system or sensors requires an OBD2 diagnostic scanner capable of clearing diesel powertrain control module memory. Ensure all electrical connections and fuses are restored to their factory positions before turning the ignition key to the ON position.
