How To Clear HomeLink Garage Door Opener: A Complete Technical Reset Guide
Clearing the HomeLink system involves a standardized master reset procedure that wipes all programmed device codes from the vehicle’s non-volatile memory. This universal reset is a mandatory prerequisite before pairing new garage door openers, gate systems, or home automation lighting protocols to ensure signal integrity and prevent memory buffer conflicts.
Pre-Procedure Requirements and Vehicle Preparation
Before initiating the reset sequence, ensure the vehicle is parked in a safe, well-lit location, ideally within range of the garage door motor unit if you intend to reprogram immediately following the wipe. The HomeLink system is integrated into the vehicle’s internal electrical architecture, meaning it requires a stable power supply. Ensure your vehicle’s ignition is in the Accessory or On position to provide the necessary current to the transmitter module.

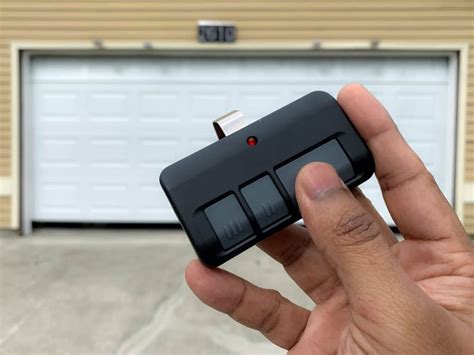

- Essential Equipment: A functional garage door remote control (for subsequent programming), a step ladder (for accessing the motor unit learn button), and, if applicable, a secondary individual to assist with the motor unit sync.
- Prerequisite Knowledge: Understanding that clearing the HomeLink memory is a global action. It will delete all stored codes for every button on the module simultaneously; individual button clearing is not supported by standard HomeLink hardware.
- Estimated Duration: The master reset takes approximately 20 to 30 seconds to execute.
- Cost Benchmark: Zero; this is a manufacturer-standard procedure requiring no proprietary tools or external software diagnostic equipment.
Master Reset Sequence for HomeLink Transmitters
The master reset function is designed to return the HomeLink module to its factory-default state. Follow these precise steps to purge the internal memory buffer of your transmitter.
Step 1: Identifying the Universal Command Buttons
Locate the three buttons on your vehicle’s rearview mirror, overhead console, or visor. These are designated as buttons I, II, and III. You will need to press and hold the two outer buttons (usually button I and button III) simultaneously. If your vehicle layout differs, look for the two buttons furthest apart from each other.
Step 2: Initiating the Memory Purge
Press and hold both outer buttons at the same time. Do not release them. Maintain firm, consistent pressure on both buttons. You are effectively signaling the HomeLink microcontroller to bypass the buffer and clear the encrypted registers associated with previously stored radio frequency (RF) codes.
Step 3: Monitoring the Indicator Light
Watch the HomeLink status LED closely. Initially, the light will remain off or solid. After approximately 15 to 20 seconds of continuous pressure, the LED will begin to flash slowly, then transition to a rapid, strobe-like blink. This rapid flashing signifies that the system is currently erasing the volatile data stored in the memory chips.
Warning: Do not release the buttons until the indicator light transitions from a slow blink to a rapid, continuous flash. Releasing too early may result in a partial reset, leaving residual data that interferes with new code synchronization.
Step 4: Finalizing the Factory Reset
Once the indicator light is flashing rapidly, remove your fingers from both buttons. The HomeLink module is now cleared. To confirm the reset was successful, attempt to press any of the individual buttons. If the indicator light does not glow or blink in response to a single press, the memory is successfully wiped.
Auto-Dimming Mirror with Homelink Garage Door Opener Installed! DIY how ...
Technical Specifications and Compatibility Matrix
HomeLink technology operates primarily on the 300MHz to 434MHz frequency range, utilizing rolling-code encryption standards to ensure security. The following table illustrates the compatibility and operational states during the reset and programming phases.
| Operational State | Indicator LED Behavior | System Status | Memory Buffer |
|---|---|---|---|
| Factory Reset Mode | Rapid Flashing | Clearing All Codes | Empty / Null |
| Learning Mode | Slow Continuous Blink | Ready to Receive | Ready to Write |
| Successful Pairing | Solid/Steady Glow | Sync Complete | Data Occupied |
| Rolling Code Sync | Double Blink Interval | Handshake Active | Encrypted State |
Troubleshooting Common Pairing and Memory Errors
Even after a successful master reset, interference or hardware synchronization issues can prevent the system from operating as expected. Use the following diagnostic steps to resolve common field failures.
- Root Cause: Persistent Rolling Code Interference. If the system fails to recognize the motor unit after the reset, the rolling code handshake may have timed out.
- Actionable Fix: Clear the HomeLink memory again. Then, initiate the "Learn" button on the garage door motor unit first. Return to the vehicle within 30 seconds to press the programmed HomeLink button three times in rapid succession to complete the rolling code handshake.
- Root Cause: Low Battery in Handheld Remote. If you are attempting to clone an original remote during the setup phase, a weak battery will produce a signal that is too low in amplitude for the HomeLink module to interpret.
- Actionable Fix: Replace the 12V or coin-cell battery in your handheld remote before attempting to re-program the HomeLink after a reset.
- Root Cause: RF Signal Blocking. Metal-framed garages or dense wall materials can cause signal attenuation, preventing the car from "talking" to the motor unit.
- Actionable Fix: Ensure the vehicle is parked as close as possible to the motor unit during the synchronization phase, ideally with the garage door open to minimize RF reflection off the panel.
Frequently Asked Questions
Can I clear only one button on my HomeLink?
No. HomeLink modules are designed with a global memory management system. When you execute the reset procedure, it purges the entire memory buffer, meaning all three buttons will be cleared simultaneously.
Does resetting HomeLink delete my garage door motor unit memory?
No. Resetting the HomeLink in your vehicle only removes the codes stored within the car’s hardware. It does not erase the paired devices stored in the garage door opener’s motor head. You will, however, need to re-pair the remote and the car to the motor unit as if they were new devices.
How do I know if the reset worked?
After performing the reset steps, press any of the HomeLink buttons. If the indicator light does not respond, or responds only to the initial hold and then stays dark, the memory has been successfully cleared of previous programming data.
Will the reset affect other devices like gates or lights?
Yes. Because the reset is a system-wide wipe, any external gates or home automation lighting systems previously programmed to buttons I, II, or III will be disconnected. You must re-program each device individually following the reset.
Is there a limit to how many times I can reset the system?
There is no hard limit on the number of resets; the non-volatile memory in the HomeLink module is rated for thousands of write-erase cycles. You can reset and re-program as often as necessary without degrading the hardware.
Ensure your home security and vehicle connectivity are fully optimized by following the manufacturer’s pairing protocol immediately after your system reset. Verify the synchronization by cycling the door through at least three full opening and closing operations to ensure the rolling code sequence is correctly established.
