How To Clean A Valve Cover: The Complete Engine Bay Restoration Guide

Cleaning a valve cover is a critical mechanical maintenance task that removes baked-on carbon, sludge, and old gasket material to prevent oil leaks and restore engine bay aesthetics. Success requires completely stripping the component down to bare metal, using chemical degreasers matched to the material composition, and ensuring zero particulate contamination enters the valvetrain upon reinstallation.

Preparation and Equipment Checklist

Before unbolting your engine's valve cover, assembling the correct chemical agents, hand tools, and safety gear prevents frustrating delays and ensures a leak-free seal upon reassembly. Valve covers are typically cast from aluminum, stamped steel, or magnesium, each demanding specific handling to prevent pitting, warping, or chemical degradation.

• Essential Gear and Tools: Heavy-duty nitrile gloves, safety glasses, a dual-action parts washing brush, nylon and brass detail brushes, a razor blade scraper or plastic gasket scraper, a torque wrench measured in inch-pounds, and clean shop rags.
• Chemicals and Materials: Heavy-duty automotive solvent or engine degreaser, aerosol brake cleaner, a large plastic storage bin or parts washing tank, boiling water (if using an immersion tank with safe cleaners), fresh valve cover gasket set, and high-temp RTV silicone sealant if specified by the manufacturer.
• Prerequisite Knowledge and Standards: Familiarity with proper torque sequences, torque specifications (typically between 7 to 12 foot-pounds or 84 to 144 inch-pounds depending on the platform), and the health hazards associated with petroleum-based aerosol solvents.
• Budget and Duration Benchmarks: Estimated cost runs between twenty to fifty dollars for chemicals and gaskets if doing the work DIY. Budget two to four hours of active labor, plus additional drying and curing time if painting or reinstalling.

Step-by-Step Valve Cover Restoration Workflow

Step 1: Extraction and Initial Debris Clearance

1. Disconnect the negative battery terminal to eliminate electrical sparks.
2. Unclip and remove any wiring harness brackets, ignition coil packs, spark plug wires, and PCV (Positive Crankcase Ventilation) hoses attached to the valve cover.
3. Using compressed air or a soft brush, thoroughly sweep away loose dirt, sand, and leaf debris resting around the perimeter of the valve cover sealing flange.

Warning: Never allow loose debris to drop into the open cylinder head when lifting the cover away. Cover the exposed valvetrain immediately with clean shop rags.

Step 2: Stripping Hardware and Gaskets

1. Loosen the valve cover retaining bolts in an alternating, criss-cross pattern starting from the outer edges and working inward to prevent casting distortion.
2. Lift the valve cover off the cylinder head gently. If it resists due to stuck gasket material, tap the side lightly with a rubber mallet—never pry against aluminum mating surfaces with a steel screwdriver.
3. Peel away the old rubber or cork gasket. Scrape away hardened RTV silicone or baked-on gasket material from the valve cover channel using a plastic scraper or a carefully angled brass scraper.

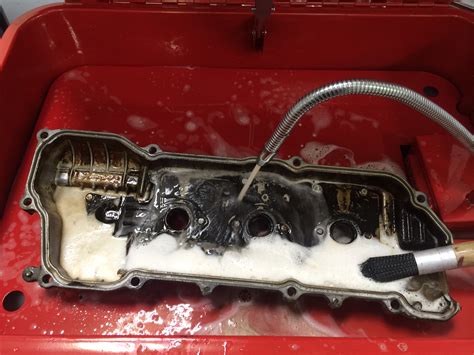

Step 3: Degreasing and Carbon Breakdown

1. Submerge the valve cover in a basin or spray it down liberally with a high-strength industrial engine degreaser or hot water mixed with a professional-grade aqueous parts washer detergent.
2. Agitate heavy sludge accumulations inside the baffle plates and exterior surfaces using stiff nylon brushes.
3. For stubborn carbon deposits on the underside, apply a dedicated carbon-chasing spray or soak the affected areas in a concentrated solvent bath for thirty to sixty minutes.

Pro-Tip: If your valve cover features an internal oil baffle plate secured by rivets or small fasteners, do not remove it unless absolutely necessary. Instead, flush solvent aggressively through the baffle drain holes until the runoff flows completely clear.

Step 4: Metal Conditioning and Final Rinse

1. Rinse the entire valve cover with high-pressure hot water or a heavy stream of brake cleaner to flush away dissolved oils, metal shavings, and chemical residue.
2. Inspect the sealing rail with a straight edge to verify the metal has not warped from historic overheating or over-torquing.
3. Dry the component instantly using compressed air, paying special attention to blind bolt holes and internal baffling where moisture loves to hide.

Valve Cover Material Properties and Cleaning Matrix

Common Restoration Failures and Field Fixes

• Persistent Oil Seep Post-Installation:


  • Root Cause: Failure to clean old RTV out of the corners, or tightening bolts out of sequence.
  • Actionable Fix: Remove the cover, clean the mating surface down to bare metal with acetone, apply tiny dabs of RTV only at factory-specified timing cover joints, and torque to exact specification in a spiral pattern.
• Flash Rust on Stamped Steel Covers:


  • Root Cause: Water left inside blind areas after a pressure wash, combined with bare metal exposure.
  • Actionable Fix: Immediately blow out all recesses with compressed air and coat bare steel surfaces with a light layer of WD-40 or high-temp primer/paint.
• Blown Gaskets Due to Blocked PCV Baffles:


  • Root Cause: Sludge buildup inside the internal baffle blocks crankcase pressure relief, blowing out the new rubber gasket.
  • Actionable Fix: Soak the internal baffle chamber in parts cleaner overnight, then compressed-air test the PCV port to ensure unobstructed airflow.

Frequently Asked Questions

Can I put my aluminum valve cover in the dishwasher?

While dishwasher detergent and hot water will strip grease effectively, dishwasher cycles leave a white, chalky aluminum oxide residue due to harsh caustic salts. Furthermore, residual engine oil and heavy metals will contaminate your household appliance. Use a dedicated parts washer or a large plastic tote instead.

Should I use RTV silicone when installing a new rubber gasket?

Generally, modern molded rubber or cork-lamination gaskets are designed to be installed completely dry. However, manufacturers usually specify adding small dabs of high-temperature RTV silicone exclusively at sharp corners, half-moon thrust areas, or where the cylinder head meets the timing chain cover.

How do I remove baked-on oil varnish from aluminum?

Baked-on varnish requires chemical intervention rather than scraping. Use an aerosol gasket remover or a dedicated aluminum-safe engine degreaser, letting it dwell for fifteen minutes before scrubbing with a non-scratch brass wire brush to preserve the factory casting finish.

Is it safe to sandblast a valve cover?

Sandblasting is safe for steel and aluminum valve covers only if you completely plug all ports and remove internal baffles first. Glass beads or aluminum oxide grit trapped inside the oil baffles will circulate directly into your engine bearings upon startup and cause catastrophic engine failure.

What is the correct way to torque a valve cover down?

Always follow a multi-stage torque sequence starting from the center bolts and working outward toward the ends. Tighten the fasteners in two progressive steps (e.g., step one to 50 percent specification, step two to 100 percent) using a calibrated inch-pound torque wrench to prevent pinching the gasket.
