The Complete Guide To Cleaning A Lawn Mower Air Filter: Maintenance Steps For Peak Engine Performance

To clean a lawn mower air filter, identify whether the unit utilizes a pleated paper, foam, or dual-element system before removing the housing cover and inspecting for structural integrity or heavy saturation. Foam elements require washing in warm, soapy water and re-oiling with SAE 30 oil, while paper filters should be gently tapped or cleaned with low-pressure compressed air from the inside out to maintain the critical 14.7:1 air-to-fuel ratio required for efficient combustion.

Pre-Maintenance Preparation and Tool Requirements

A lawn mower engine is essentially a massive air pump. For every gallon of gasoline burned, the engine requires approximately 10,000 gallons of air. When the air filter becomes clogged with organic debris, dust, and carbon particulates, the engine suffers from "strangulation," leading to incomplete combustion, increased fuel consumption, and premature wear on the cylinder walls. Before beginning the cleaning process, it is vital to understand the specifications of your specific machine, whether it is a walk-behind rotary mower, a zero-turn, or a lawn tractor.

Most modern small engines from manufacturers like Briggs & Stratton, Honda, Kohler, and Kawasaki use standardized filtration housings, but the internal media varies. You must ensure the engine is completely cool to the touch to prevent thermal shock to the carburetor components or skin burns. Furthermore, the mower must be parked on a flat, level surface. If you are working on a walk-behind mower that requires tilting, always tilt the mower with the air filter and carburetor side facing upward. Tilting it the opposite way allows engine oil to flow into the intake tract, saturating the filter and potentially hydro-locking the engine.

Essential Equipment and Materials Checklist

• Safety Gear: Nitrile gloves and eye protection (to guard against pressurized dust and oil).
• Cleaning Agents: Mild liquid dish soap (grease-cutting) or a dedicated non-flammable parts cleaner.
• Lubrication: Fresh SAE 30 engine oil (required specifically for foam filters).
• Hand Tools: A 5/16-inch or 8mm nut driver, a flat-head screwdriver, or a clean cloth, depending on the housing fasteners.
• Pressurized Air: A compressor with a regulator set to under 30 PSI or a can of compressed air.
• Replacement Benchmarks: A clean lint-free shop towel and a shallow basin for washing foam elements.
• Estimated Duration: 15 to 30 minutes.
• Technical Standard: Filters should be inspected every 25 hours of operation or once per season, whichever occurs first. In extremely dusty conditions, inspection should occur every 5 hours.

Professional Workflow for Air Filter Inspection and Restoration

Step 1: Disabling the Ignition System

Before touching any mechanical component near the intake, you must disconnect the spark plug wire. This is a non-negotiable safety standard in small engine repair. By removing the lead from the spark plug and tucking it away from the terminal, you eliminate the possibility of an accidental engine start if the blade is turned or if the compression cycle is engaged while you are working near the carburetor.

Step 2: Accessing the Filtration Housing

Locate the air filter assembly, typically found on the side or top of the engine near the carburetor. Most housings are secured by a plastic thumb screw, a metal clip, or a series of hex-head bolts. Carefully unscrew the fasteners and lift the cover away.

Warning: Note the orientation of the cover and the filter itself. Many filters are asymmetrical; installing them backward can create gaps in the seal, allowing "dirty air" to bypass the filter and enter the combustion chamber directly, which can ruin an engine in a matter of hours.

Step 3: Assessing Filter Viability

Remove the filter and hold it up to a bright light source (sunlight or a shop light).

1. For Paper Filters: If you cannot see light passing through the pleats, or if the paper is stained dark with oil or soot, the filter is "loaded" and must be replaced rather than cleaned.
2. For Foam Filters: Check for "fretting" or crumbling. If the foam feels brittle or pieces break off when squeezed, the material is degrading due to UV exposure or chemical breakdown and must be discarded.

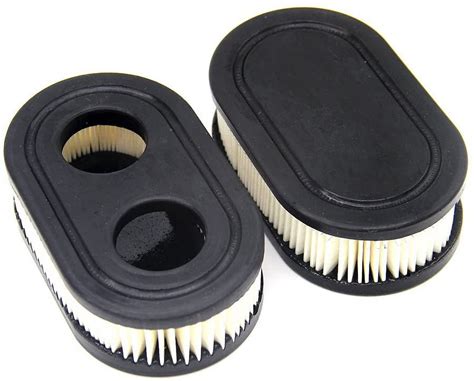

Step 4: Cleaning Pleated Paper Elements

Paper filters are made of cellulose fibers designed to trap particles as small as 10 to 20 microns. They are delicate and cannot survive liquid cleaning.

1. Mechanical Agitation: Tap the filter gently against a hard, flat surface with the dirty side facing down. This dislodges larger clumps of grass and dried mud.
2. Directional Airflow: Use compressed air (regulated to 30 PSI or less) to blow through the filter from the inside out. Never blow air from the outside in, as this drives the particulates deeper into the paper fibers, permanently reducing airflow.
3. Visual Inspection: If the paper remains dark or greasy after these steps, the microscopic pores are blocked. A paper filter is a "surface-loading" medium; once the surface is saturated, its efficiency drops exponentially.

Step 5: Sanitizing and Re-Oiling Foam Elements

Foam filters are "depth-loading" media that rely on a thin film of oil to catch dust.

1. The Wash: Submerge the foam element in a mixture of warm water and grease-cutting dish soap. Squeeze the foam repeatedly to agitate the dirt out.
2. The Rinse: Rinse under cool running water until the water runs clear and no soap suds remain.
3. The Drying Phase: Wrap the foam in a clean shop towel and squeeze firmly to absorb moisture. Do not wring or twist the foam, as this can cause micro-tears in the cellular structure. Allow it to air dry completely.
4. Re-Oiling: Once dry, apply 1–2 tablespoons of fresh SAE 30 engine oil to the foam. Squeeze the filter repeatedly to distribute the oil evenly. The goal is for the filter to be damp with oil but not dripping.
5. Blotting: Place the oiled filter back in a clean paper towel and squeeze one last time to remove any excess oil. Excess oil can be sucked into the carburetor, causing blue smoke and fouled spark plugs.

Step 6: Cleaning the Intake Plenum and Housing

While the filter is removed, use a clean, damp cloth to wipe out the inside of the plastic air box.

Pro-Tip: Be extremely careful not to push any dirt into the carburetor throat (the hole leading into the engine). Many technicians place a clean rag over the carburetor opening while cleaning the housing to prevent accidental contamination. Check the rubber gasket or "O-ring" that seals the housing; if it is cracked, air will leak past the filter.

Step 7: Final Reassembly and Testing

Seat the cleaned or new filter back into the housing, ensuring it fits snugly against the sealing beads. Replace the cover and tighten the fasteners. Reconnect the spark plug wire. Start the engine and observe the exhaust. If the engine was previously "hunting" or surging (fluctuating RPMs), a clean filter should stabilize the idle by providing a consistent volumetric flow of oxygen.

Filtration Media Specifications and Maintenance Metrics

The following table outlines the technical differences between the primary filtration types found in residential and commercial lawn equipment.

Common Failure Scenarios and Field Resolutions

Even with regular cleaning, air intake systems can fail due to environmental factors or incorrect maintenance procedures. Understanding these failure modes is essential for long-term engine health.

• Scenario: The "Oil-Soaked" Paper Filter




  • Root Cause: This usually occurs when the mower is tilted incorrectly during a blade change or deck cleaning, allowing crankcase oil to travel through the breather tube into the air box.
  • Actionable Fix: A paper filter saturated with oil is non-functional because oil closes the pores of the cellulose. You cannot clean this. You must replace the filter immediately and wipe the entire intake tract dry before restarting.

• Scenario: Engine Emits Black Smoke After Cleaning




  • Root Cause: This is a symptom of an over-oiled foam filter or a foam filter that was reinstalled while still wet with water. The excess liquid restricts airflow, creating an "over-rich" fuel mixture.
  • Actionable Fix: Remove the foam element and blot it thoroughly with a dry paper towel to remove the excess oil. If water was the culprit, allow the filter to dry in the sun for 2 hours before re-oiling and installing.

• Scenario: Dust Trails Inside the Carburetor Throat




  • Root Cause: This indicates "dust bypassing," where air is leaking around the edges of the filter rather than going through it. This is often caused by a warped housing cover or a missing gasket.
  • Actionable Fix: Inspect the plastic housing for heat-induced warping. If the seal is not airtight, apply a thin layer of heavy grease to the sealing edge of the filter to act as a temporary dust trap, then order a replacement housing or gasket.

Frequently Asked Questions

Can I use gasoline to clean a foam air filter?

No, you should never use gasoline or highly flammable solvents to clean a foam filter. Gasoline can degrade the cellular structure of the polyurethane foam and poses a significant fire hazard if any residual vapors are sucked into the engine during startup. Use mild dish soap or a dedicated non-flammable degreaser instead.

How do I know if my air filter is beyond cleaning and needs replacement?

A filter requires replacement if the paper pleats are physically torn, if the foam is crumbling or "pitting," or if a paper filter remains dark and opaque when held up to a light source after cleaning. If you notice a drop in engine RPMs or a significant increase in fuel consumption, the filter's microscopic permeability is likely spent.

Is it okay to run the lawn mower for a short time without an air filter?

Running a mower without an air filter, even for a few minutes, is extremely risky. Small engines operate in high-dust environments where abrasive particles (silica) are constantly kicked up. Without a filter, these particles enter the cylinder and act like sandpaper, scoring the piston rings and cylinder walls, which leads to a permanent loss of compression.

What is a "pre-cleaner," and how does it affect the cleaning process?

A pre-cleaner is a thin sleeve of foam that fits over a pleated paper filter. Its job is to catch larger debris before it reaches the more expensive paper element. In this setup, you should wash and oil the foam pre-cleaner frequently (every 10 hours) while leaving the internal paper filter alone, which significantly extends the lifespan of the main filter.

Optimize Your Equipment Performance

Regular air filter maintenance is the most cost-effective way to prevent expensive carburetor overhauls and internal engine damage. By following these technical standards, you ensure that your lawn mower operates with maximum thermal efficiency and mechanical longevity.
