How To Clean A 3D Printer Nozzle: The Ultimate Troubleshooting And Maintenance Guide

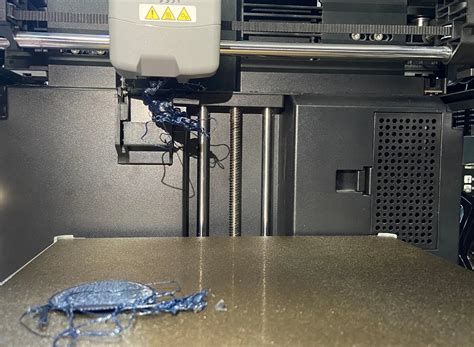

Mastering how to clean a 3D printer nozzle prevents under-extrusion, layer shifting, and catastrophic hotend clogs by systematically clearing carbonized polymer buildup from the nozzle orifice and heat break. Utilizing specialized tools like acupuncture needles and cold pull techniques ensures thermal stability and restores precise filament flow without damaging brass or hardened steel components.

Pre-Operation & Equipment Checklist

Maintaining a clean extrusion system is essential for high-fidelity additive manufacturing. Over time, volatile organic compounds, dust, and degraded thermoplastics leave carbonized residues inside the hotend assembly, narrowing the inner diameter and disrupting the fluid dynamics of molten filament.

• Essential Gear and Tools: Brass or stainless steel wire brushes, 0.4mm acupuncture needles or nozzle cleaning wires, a brass wire block, high-temperature heat-resistant gloves, a torque wrench or appropriate socket set for hot-tightening, and a spool of cleaning filament or nylon.
• Prerequisite Knowledge: Familiarity with hotend thermodynamics, PID tuning, and the specific softening points of your standard filaments (e.g., PLA softens around 60 degrees Celsius, melting near 180 to 220 degrees Celsius; ABS requires 230 to 250 degrees Celsius).
• Time and Budget Benchmarks: Maintenance duration ranges from 15 to 30 minutes for a standard atomic pull, with an ongoing material investment of under ten dollars for cleaning filaments and hand tools.

Step-by-Step Hotend Clearing Workflow

Step 1: Thermal Stabilization and External Debris Removal

1. Power on your 3D printer and preheat the hotend to a temperature 10 to 20 degrees Celsius above the printing temperature of the last filament used. For standard PLA, set the target to 210 degrees Celsius; for ABS or PETG, target 250 degrees Celsius.
2. Once the target temperature stabilizes, use a brass wire brush to carefully scrub the exterior of the brass or hardened steel nozzle.
3. Wipe away any softened plastic crust adhering to the nozzle tip and heater block, taking extreme care not to short-circuit exposed heater cartridge wiring or thermistor leads.

Warning: Always perform external wire brushing while the hotend is heated to prevent bristles from snapping off in cold, hardened plastic, but ensure the printer is powered off or insulated if using metallic tools near sensitive electronic terminal blocks.

Step 2: The Cold Pull (Atomic Pull) Clearing Method

1. Ensure the hotend is heated to approximately 240 degrees Celsius (or a temperature suitable for high-viscosity clearing). Insert a length of nylon or specialized cleaning filament directly into the extruder until molten plastic begins to ooze from the nozzle tip.
2. Turn off the hotend heaters and allow the temperature to drop naturally to a transitional plastic phase—typically around 90 to 100 degrees Celsius for nylon, or 130 degrees Celsius for standard PLA.
3. Firmly grasp the filament protruding from the top of the cold-end/extruder and give it a sharp, steady vertical pull. The cooled plastic inside the melt zone will shrink around trapped carbon debris, extracting it completely.
4. Inspect the extracted plug of plastic; a successful pull will display a precise, mirrored cast of the internal nozzle geometry, complete with trapped dark debris embedded in the tip. Repeat this cycle until the pulled plastic emerges completely clean.

Pro-Tip: If your extruder gear slips during a cold pull, release the idler tension arm and pull the filament manually by hand using pliers for better leverage and control.

Step 3: Mechanical Orifice Clearing via Acupuncture Needle

1. Heat the hotend back up to the operational printing temperature of your most recent filament.
2. Take a thin, flexible 0.4mm acupuncture needle and insert it directly into the front nozzle orifice, pushing it straight up into the heat break to dislodge any stubborn particle jams or charred carbon aggregates.
3. Gently move the needle up and down two or three times, taking care not to bend the delicate wire inside the bore.
4. Manually feed 50 millimeters of fresh filament through the extruder to flush out any loosened debris, ensuring a smooth, downward-curving extrusion stream.

Common Site Failures & Field Fixes

• Root Cause: Filament leaking threads between the nozzle and the heat break due to thermal expansion gaps.


  • Actionable Fix: Always hot-tighten your nozzle to the specified torque rating (typically 1.5 to 2.0 Nm) while the hotend is heated to operating temperature, ensuring a tight mechanical seal against the throat tube rather than the aluminum heater block.
• Root Cause: Snapping the 0.4mm acupuncture needle inside the nozzle bore.


  • Actionable Fix: Heat the hotend to 260 degrees Celsius to melt surrounding plastic, then use fine tweezers to pull the broken segment out from the bottom, or push it up and out from the top by feeding high-temperature nylon through the extruder.
• Root Cause: Persistent under-extrusion despite a clean nozzle tip.


  • Actionable Fix: Check for heat creep caused by a failing heatsink cooling fan, which melts filament prematurely higher up in the cold zone, creating a swollen plug known as a heat break jam.

Frequently Asked Questions

Can I clean a 3D printer nozzle with a torch?

Yes, you can remove a brass or steel nozzle completely from the hotend and use a micro butane torch to burn away residual plastic. However, apply heat carefully to avoid overheating brass, which can warp the threads, and always let the nozzle cool completely before reinstalling it.

How often should I clean my 3D printer nozzle?

Routine external cleaning with a brass brush should occur every 10 to 20 printing hours. Internal cold pulls or needle clearings are best reserved for when you notice symptoms of under-extrusion, stringing, or when switching from high-temperature engineering filaments to low-temperature polymers.

Why is my nozzle clogging repeatedly with PLA?

Repeated clogging with PLA usually stems from heat creep caused by insufficient airflow from the heatsink cooling fan, or by printing at temperatures that are too low, causing the polymer to build up viscosity and char inside the thermal transition zone.

Is it better to clean or replace a 3D printer nozzle?

Brass nozzles are inexpensive consumables and should be replaced after printing abrasive composites like carbon-fiber or glow-in-the-dark filaments for more than a few spools. Standard brass nozzles printing plain PLA or PETG can be cleaned indefinitely using cold pulls and needles.

Master Your 3D Printing Workflow Today

Implement these professional maintenance protocols to eliminate extrusion failures, elevate print quality, and extend the operating life of your hotend components. Bookmark this guide for your next scheduled printer calibration session and keep your additive manufacturing setup running at peak performance.
