How To Check Toyota Transmission Oil: A Comprehensive Master Guide
Checking your Toyota transmission oil requires understanding whether your vehicle uses a traditional dipstick system or a sealed "lifetime" transmission that relies on a specialized overflow plug method. Mastering this process prevents catastrophic planetary gear failure, maintains hydraulic pressure, and extends the lifespan of your automatic transmission.
Pre-Operation and Equipment Checklist
Performing a proper transmission fluid check on a modern or classic Toyota requires careful preparation due to the extreme sensitivity of modern automatic transmissions (such as the Aisin U660E, UA80, or older A340 and U140 series) to fluid expansion rates and fluid level accuracy. Unlike engine oil, transmission fluid expands significantly as it heats up, meaning level checks must be executed within precise temperature windows.
- Essential Gear and Tools: Lint-free shop rags, a clean funnel, a floor jack with secure jack stands (or car ramps), a metric socket set (typically 10mm to 24mm for skid plates and check plugs), an infrared thermometer or an OBD2 scanner capable of reading live Transmission Fluid Temperature (TFT), and the manufacturer-specified transmission fluid (such as Toyota Genuine ATF WS for World Standard units or Type T-IV for older models).
- Mandatory Prerequisite Knowledge: You must identify whether your specific Toyota model features a dipstick or a sealed transmission pan. Dipstick-equipped vehicles are typically older rear-wheel-drive platforms or older front-wheel-drive models, whereas most modern Toyotas from 2006 onward feature sealed transmissions requiring the overflow plug technique.
- Budget and Duration Benchmarks: Estimated completion time ranges from 30 to 60 minutes depending on skid plate removal requirements, with material costs limited to purchasing the correct OEM fluid and crush washers if fluid top-off is required.
Step-by-Step Toyota Transmission Fluid Inspection Workflow
Step 1: Vehicle Warm-Up and Level Positioning
Park your Toyota on a completely flat, level surface and engage the parking brake firmly. Start the engine and let it run until it reaches normal operating temperature, shifting sequentially through all gears (P-R-N-D-2-L or P-R-N-D with manual mode usage) while holding the brake pedal for five seconds in each position, then returning the shifter to Park.
Warning: Never work under a vehicle supported solely by a hydraulic jack; always utilize certified automotive jack stands rated for your vehicle's gross weight, or use drive-on ramps to ensure the vehicle remains entirely horizontal.
Step 2: Locating the Fluid Access Point
For dipstick-equipped Toyotas, locate the transmission dipstick under the hood—it is usually situated near the firewall on rear-wheel-drive layouts or lower down near the transaxle housing on front-wheel-drive models, frequently featuring a red or yellow ring handle labeled ATF. For sealed transmissions, safely elevate the vehicle, secure it, and locate the transmission oil pan beneath the vehicle to identify the drain plug, the fill plug, and the centrally located overflow check plug.
Step 3: Executing the Fluid Level Check
For dipstick systems, pull the dipstick out, wipe it clean with a lint-free rag, reinsert it fully, and pull it out again to read the fluid level against the Hot and Cold crosshatched markers. For sealed transmissions using the overflow method, verify via OBD2 scanner that the transmission fluid temperature is within the precise manufacturer window (typically between 115°F and 130°F / 46°C to 54°C), then remove the overflow plug while the engine is idling in Park; a steady trickle turning into a slow drip indicates the correct level, while a dry hole requires pumping fresh fluid into the fill port until it overflows.
Pro-Tip: If you are servicing a sealed Toyota transmission, always loosen the fluid fill plug before removing the drain plug to ensure you do not get stuck with an empty transmission that you cannot refill.

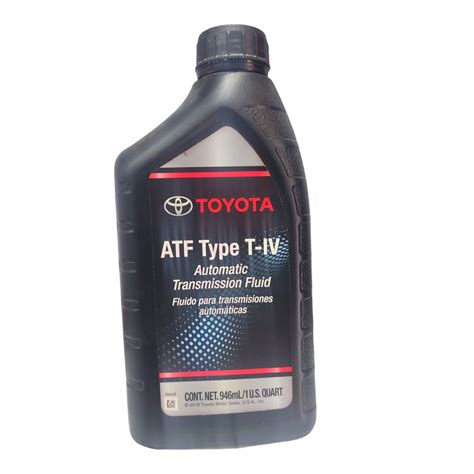

Genuine Toyota Transmission Oil: Trusted Performance for Your Vehicle
Toyota Transmission Fluid Specifications and Standards
| Transmission Generation | Standard Fluid Type | Check Method | Ideal Check Temperature | Recommended Change Interval |
|---|---|---|---|---|
| Older Units (Pre-2005) | Toyota ATF Type T-IV | Under-hood Dipstick | Hot (Normal Operating Temp) | 60,000 Miles / 5 Years |
| Modern Units (2006-Present) | Toyota Genuine ATF WS | Sealed Pan / Overflow Plug | 115°F – 130°F (46°C – 54°C) | 60,000 to 100,000 Miles |
| Heavy Duty / Towing | Toyota ATF WS / Synthetic | Sealed Pan / Overflow Plug | 115°F – 130°F (46°C – 54°C) | 30,000 to 50,000 Miles |
Common Inspection Failures and Field Fixes
- Root Cause: Reading fluid levels when the transmission is completely cold on a dipstick-equipped vehicle.
- Actionable Fix: Drive the vehicle for at least 15 miles on the highway to bring the fluid up to thermal expansion specifications before pulling the dipstick for a final reading.
- Root Cause: Incorrect fluid temperature during a sealed transmission overflow check, causing premature draining of fluid that has not yet expanded fully.
- Actionable Fix: Connect an OBD2 scanner capable of reading PID 2182 (Transmission Fluid Temperature) to ensure you pull the overflow plug strictly within the 115°F to 130°F window.
- Root Cause: Using universal aftermarket transmission fluid that lacks the precise friction modifiers required by Aisin transmissions.
- Actionable Fix: Flush the system entirely and refill exclusively with certified Toyota Genuine ATF WS or Type T-IV to prevent torque converter shudder and premature clutch pack wear.
- Root Cause: Reusing old aluminum or copper crush washers on the transmission drain and overflow plugs, resulting in slow fluid leaks.
- Actionable Fix: Always replace crush washers with genuine OEM components during every fluid level check or change, and torque plugs to factory specifications (typically 20-30 ft-lbs).
Frequently Asked Questions
How do I know if my Toyota has a sealed transmission?
If your engine bay lacks a dedicated transmission dipstick with a colored handle, your vehicle features a sealed transmission. You can verify this by checking your owner's manual or looking underneath the vehicle for a transmission pan equipped with a dual-plug setup consisting of a drain plug and an inner overflow tube plug.
Can I mix different types of Toyota transmission fluid?
No, you should never mix ATF Type T-IV and ATF WS (World Standard), as their chemical compositions and viscosity friction properties are entirely different. Mixing them will compromise hydraulic pressure control, degrade shift quality, and potentially ruin internal solenoids and clutch friction material.
What happens if my Toyota transmission is overfilled?
An overfilled transmission causes the rotating internal components to whip air into the fluid, creating foam. This aeration reduces hydraulic pressure, leads to erratic shifting, causes overheating, and forces fluid out of the transmission vent breather tube.
How often should Toyota ATF WS be changed despite being labeled as lifetime fluid?
While marketing departments label WS fluid as "lifetime," automotive engineers and transmission rebuilders strongly recommend changing the fluid and filter every 60,000 to 100,000 miles, especially if the vehicle experiences heavy traffic, towing, or mountainous driving conditions.
Can I check my Toyota transmission oil without an OBD2 scanner?
On dipstick models, no scanner is needed. For sealed transmissions, while some mechanics use a manual jumper wire method on the OBD2 port (bridging terminals 4 and 13) to trigger a fluid temperature temperature-check mode via flashing dashboard lights, using a digital OBD2 scanner is infinitely more accurate and prevents costly mistakes.
Protect Your Drivetrain Investment Today
Regularly inspecting and servicing your Toyota transmission fluid ensures smooth gear shifts, protects internal planetary gears from premature wear, and prevents costly mechanical failures. Schedule your transmission fluid service or gather your diagnostic tools today to keep your Toyota running reliably for hundreds of thousands of miles.
