How To Check A Solenoid On A Golf Cart: Complete Diagnostic & Testing Guide

Testing a golf cart solenoid requires evaluating both its low-amp electromagnetic activation coil and its high-amp contact circuit using a digital multimeter set to DC voltage and resistance. A fully operational 36-volt or 48-volt solenoid must display full battery pack voltage across the small activation terminals when the accelerator is engaged, accompanied by an audible click and a voltage drop across the large high-current terminals of less than 0.3 volts DC. Identifying whether electrical failure stems from coil burnout, contact pitting, or upstream control switches prevents premature component replacement and restores drivetrain functionality.

Pre-Testing Safety Protocols & Diagnostic Setup

Before performing electrical diagnostics on electric golf carts (such as EZGO, Club Car, or Yamaha models), technicians and owners must establish strict safety conditions. Golf cart traction battery packs deliver high DC amperage capable of causing severe electrical arcs, weld burns, or sudden vehicle movement if the motor energizes unexpectedly.

Initial setup mandates placing the vehicle on a level, hard surface and elevating the rear drive wheels off the ground using jack stands rated for at least two tons. Disengaging the drive wheels ensures the cart cannot unexpectedly launch forward or backward during live circuit testing. Furthermore, switching the vehicle's system control switch from "Run" to "Tow" mode de-energizes the motor controller logic board, safeguarding delicate internal electronics from accidental short circuits while accessing the solenoid assembly.

(No code blocks used - proceeding directly to bulleted list)

Essential Testing Gear & Materials

• Digital Multimeter (DMM): Must support DC voltage auto-ranging up to 100V DC and measure resistance down to 0.1 Ohms ($\Omega$).
• Insulated Hand Tools: Standard 7/16-inch, 1/2-inch, and 9/16-inch insulated box wrenches or socket sets to remove terminal hardware.
• Jumper Wire Set: 10-gauge copper insulated jumper wires equipped with heavy-duty alligator clips.
• Personal Protective Equipment (PPE): ANSI-approved safety glasses and non-conductive mechanic gloves rated for high-voltage DC exposure.
• Terminal Cleaning Tools: Wire contact brush, electrical contact cleaner spray, and fine-grit emery cloth for removing terminal corrosion.

Prerequisite Knowledge & Benchmark Metrics

• Battery Pack Health: Full battery pack voltage must be verified across the main battery bank prior to solenoid testing (36.0V–38.2V for 36V systems; 48.0V–50.9V for 48V systems).
• Expected Diagnostic Time: 20 to 35 minutes for a comprehensive standard diagnostic workflow.
• Tooling & Equipment Budget: $30 to $80 for basic multimeter and safety supplies if not already owned.

Step-by-Step Golf Cart Solenoid Diagnostic Workflow

Step 1: Visual Inspection and Terminal Isolation

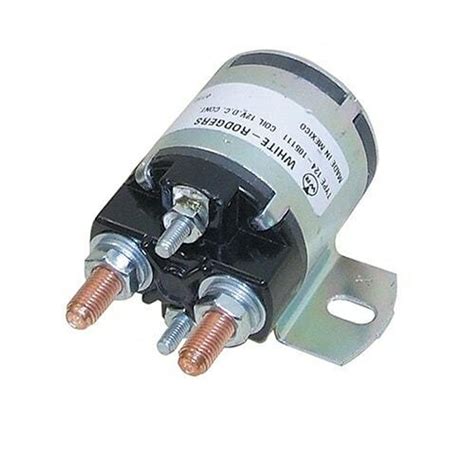

Inspect the solenoid physical body located within the engine/battery compartment near the motor controller. Check for obvious thermal degradation, including melted plastic casing around the coil terminals, heavy greenish-white copper corrosion, or loose terminal hardware.

Warning: Always disconnect the main positive and negative battery pack cables before using tools directly on high-current solenoid terminals to prevent catastrophic short circuits and battery thermal runaway.

1. Switch the cart to TOW mode and turn the key switch to OFF.
2. Locate the two large high-current studs (connected to the main battery supply and controller) and the two small low-current activation studs (connected to the key switch, foot microswitch, and controller ground).
3. Check for the presence of a pre-charge resistor spanning the two large terminals and a flyback diode spanning the two small terminals.
4. Using an insulated wrench, gently disconnect one wire lead from the pre-charge resistor attached to a large terminal. If left fully connected, current will bypass the internal contacts through the resistor, yielding false continuity readings on your multimeter.

Step 2: Testing the Low-Amperage Activation Coil Circuit

The activation circuit consists of an internal copper coil that creates a magnetic field when energized by small terminals, pulling the internal heavy-duty contacts together.

Pro-Tip: If your solenoid features a flyback diode installed across the small terminals, note its directional polarity (the striped band indicates the positive cathode side) before removal. Testing resistance across a diode without disconnecting it will skew readings.

1. Set your Digital Multimeter (DMM) to the DC Voltage ($V\overline{\dots}$) scale higher than your cart's total system voltage (e.g., set to 200V DC mode).
2. Attach the black negative multimeter probe to the main battery pack negative lead (or the small solenoid terminal connected to the controller logic ground).
3. Attach the red positive multimeter probe to the positive small terminal on the solenoid.
4. Switch the cart to RUN mode, select FORWARD, turn the key switch ON, and press the accelerator pedal until you hear the foot microswitch engage.
5. Analyze Voltage Readings:


   • Pass: The multimeter reads full battery pack voltage (approx. 36V or 48V DC depending on system rating). This confirms the key switch, microswitch, directional switch, and controller logic are successfully delivering power to the solenoid coil.
   • Fail: The multimeter reads zero or significantly low voltage (<12V DC). This indicates the solenoid itself is not receiving an activation signal, pointing to a failed accelerator microswitch, key switch, reed switch, or blown control fuse rather than a bad solenoid coil.

Step 3: Measuring Solenoid Internal Coil Resistance

If voltage is arriving at the small terminals in Step 2 but the solenoid fails to click, the internal magnet wire within the activation coil may be burnt open or shorted internally.

1. Turn key switch OFF and switch the vehicle to TOW mode.
2. Disconnect both small control wires from the small solenoid terminals to completely isolate the coil.
3. Turn your multimeter dial to the Resistance ($\Omega$) setting.
4. Place one multimeter probe on each of the small activation studs.
5. Analyze Resistance Readings:


   • Standard 36-Volt Solenoids: Operational coil resistance typically measures between 250 $\Omega$ and 350 $\Omega$.
   • Standard 48-Volt Solenoids: Operational coil resistance typically measures between 150 $\Omega$ and 250 $\Omega$.
   • Infinite Resistance (OL / Open Loop): The internal coil wire is broken or burned. Replace solenoid.
   • Very Low Resistance (<15 $\Omega$): The coil windings have shorted internally, pulling excessive current and risking damage to the microswitches or controller board. Replace solenoid.

Step 4: Testing High-Current Contact Continuity and Voltage Drop

A solenoid can mechanically click when energized yet still fail to conduct power to the motor if its internal copper contacts are pitted, carbon-coated, or welded apart.

1. Keep the vehicle drive wheels jacked safely off the ground.
2. Reconnect the small activation wires to the small terminals (ensuring correct diode polarity). Leave one end of the pre-charge resistor disconnected from a large terminal.
3. Set the multimeter to DC Voltage ($V\overline{\dots}$) mode.
4. Connect the red probe to the large terminal coming directly from the main battery pack (battery side).
5. Connect the black probe to the opposite large terminal leading toward the speed controller (controller side).
6. With the key switch ON and cart in FORWARD, depress the accelerator pedal to energize the solenoid (audible click).
7. Analyze Voltage Differential Readings:


   • Solenoid De-energized (Pedal UP): Multimeter should read full battery pack voltage across the two large terminals because the circuit is wide open.
   • Solenoid Energized (Pedal DOWN): Multimeter should read 0.0V DC to 0.3V DC across the two large terminals. A reading approaching 0V proves that the internal contacts have sealed tightly and are allowing full current flow with virtually no voltage drop.
   • Failed Contact Reading: If the meter continues to read full pack voltage (or any voltage higher than 0.5V DC) while the solenoid is clicked shut, the internal contacts are severely burned or insulated by carbon buildup, blocking high amperage flow to the motor controller. Replace solenoid.

Technical Specifications & Diagnostic Benchmarks

The following reference table outlines standard electrical thresholds for nominal 36V and 48V electric golf cart solenoids during key diagnostic phases:

Common Diagnostic Failures & Field Remedies

Solenoid Clicks Loudly, but the Golf Cart Does Not Move

• Root Cause: The activation circuit is functioning properly and energizing the magnetic coil, but the heavy-duty internal contacts are so severely oxidized, pitted, or burned away that high-amperage current cannot transfer across the large studs to the controller. Alternatively, the pre-charge resistor has failed and allowed rapid contact arcing.
• Actionable Fix: Perform the high-current contact voltage drop test outlined in Step 4. If voltage drop across the large studs exceeds 0.5V DC while clicked, replace the solenoid assembly. Always replace the pre-charge resistor simultaneously when installing a new solenoid.

No Audible Click and No Voltage at Small Activation Terminals

• Root Cause: The solenoid coil itself is likely functional, but the low-voltage control loop is broken upstream. Common failure points include a blown 15-amp system fuse, a failed accelerator pedal microswitch, a bad key switch, a tripped charger interlock (reed switch), or an unseated Tow/Run switch connector.
• Actionable Fix: Set your multimeter to DC volts and systematically test input and output voltage at the key switch, pedal microswitch, and charger receptacle interlock. Trace the wiring harness for pinched leads or loose spade connectors until the open circuit point is pinpointed.

Solenoid Stays Permanently Engaged (Vehicle Runs Without Depressing Pedal)

• Root Cause: The high-current contacts inside the solenoid have fused (welded) together due to continuous excessive heat, severe current draw from an overloaded motor, or operating with a missing pre-charge resistor.
• Actionable Fix: Switch the cart to TOW mode immediately to prevent runaway. Disconnect the main battery lead and check continuity across the large terminals with zero power applied. If continuity (near 0 $\Omega$) exists while the cart is off and small wires are disconnected, the solenoid contacts are welded closed. Replace the solenoid immediately.

Pre-Charge Resistor Gets Extremely Hot or Smokes

• Root Cause: A short circuit exists down-line in the motor controller or drive motor, causing continuous heavy current draw through the low-wattage resistor even when the solenoid contacts are open.
• Actionable Fix: Do not operate the vehicle. Disconnect the controller logic wires and test the controller high-current B+ and M- terminals for an internal short. Replace the shorted controller or repair motor windings before installing a new solenoid and pre-charge resistor.

Frequently Asked Questions

Can a golf cart solenoid click and still be bad?

Yes, a solenoid can click and still be completely defective. The audible click only confirms that the low-amperage magnetic activation coil is pulling the internal plunger down; it does not guarantee that the high-amperage electrical contacts inside are successfully passing current to the motor controller. If the internal contacts are burned, pitted, or covered in carbon deposits, no electricity will reach the motor despite a clear clicking sound.

What are the main symptoms of a failing golf cart solenoid?

The most common symptoms include a cart that refuses to move when the accelerator is depressed, a complete lack of an audible clicking sound when engaging the pedal, intermittent operation where the cart suddenly cuts out, or a cart that moves unexpectedly as soon as the key is turned on without touching the accelerator (indicating contacts are welded shut).

How do I know if my golf cart solenoid is 36V or 48V?

The operating voltage rating is stamped directly on the metal casing or specification label of the solenoid body. Furthermore, you can identify system voltage by counting the battery filler caps across your battery pack (each cell equals 2 volts) or reading the main pack voltage with a multimeter. A 36-volt system typically utilizes a 36-volt continuous-duty solenoid, while a 48-volt system requires a 48-volt continuous-duty solenoid.

Do I need to disconnect the batteries before testing a solenoid?

You do not need to disconnect the batteries for live voltage testing (such as checking coil input voltage or voltage drop under load), but you must lift the rear wheels off the ground on jack stands for safety. However, when measuring resistance ($\Omega$) across the activation coil or isolated terminals, you must disconnect the terminal leads and switch the vehicle to TOW mode to prevent damaging your multimeter or receiving false readings.

What happens if you bypass a golf cart solenoid with jumper cables?

Bypassing a solenoid by connecting a heavy jumper cable directly across the two large studs bridges the battery pack straight to the speed controller. While this can temporarily confirm whether the motor and controller are functional, it is extremely dangerous for permanent operation because it leaves high-current power constantly applied to the controller, bypasses safety cutoffs, and rapidly arcs terminal connections.
