How To Check If Mass Air Flow Sensor Is Bad: The Complete Diagnostic Guide
A failing mass air flow (MAF) sensor typically triggers a check engine light, rough idling, hesitation during acceleration, and decreased fuel economy. You can verify its condition by inspecting the sensing element for contamination, performing a live-data scan with an OBD2 scanner, or conducting a multimetersignal voltage test against factory specifications.
Pre-Procedure Planning and Diagnostic Tooling
Accurately diagnosing a faulty mass air flow sensor requires an understanding of how the Powertrain Control Module (PCM) calculates engine load. The MAF sensor, typically mounted between the air filter box and the throttle body, measures the mass of air entering the engine using a heated platinum wire or film. When particulate matter, oil from aftermarket oiled air filters, or road grime coats this delicate element, it miscalculates air density, resulting in air-fuel ratio imbalances.
To execute a complete diagnostic evaluation safely and accurately, gather the required equipment and review the parameters below.
Essential Tools and Materials:
- Automotive OBD2 scanner capable of reading live data streams (specifically grams per second or g/s values).
- Digital multimeter (DMM) with back-probe pins for electrical circuit testing.
- Specialized tamper-proof Torx or security bits (typically T20 or T25) for removing the sensor housing if necessary.
- Dedicated MAF sensor cleaner or aerosol electrical contact cleaner (strictly refrain from using brake cleaner or carburetor cleaner, as they degrade the plastic housing and destroy the thermistor coating).
- Clean microfiber cloth or cotton swabs for gentle residue removal if mechanical cleaning is required.
Prerequisite Knowledge and Standards:
- Basic familiarity with reading automotive wiring diagrams and digital multimeter functions (DC voltage and resistance measurement).
- Understanding of normal idle air mass parameters: approximately 2 to 7 grams per second for a standard 4-cylinder engine, and 3 to 12 grams per second for V6 and V8 engines at normal operating temperature.
- Estimated duration: 20 to 45 minutes.
- Estimated budget: 10 to 15 dollars for dedicated sensor cleaner, or zero dollars if utilizing existing diagnostic tools.
Step-by-Step Diagnostic Execution
Step 1: Perform a Visual Inspection of the MAF Sensor and Wiring

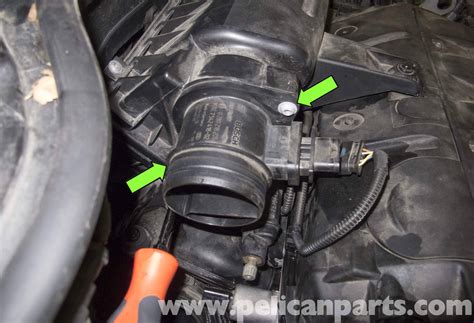

Locate the air intake assembly between your air filter housing and the engine intake manifold. Disconnect the electrical wiring harness connector from the MAF sensor housing, inspecting the internal terminals for corrosion, moisture intrusion, or bent pins. Examine the rubber intake boots and ducting between the sensor and the throttle body for cracks, loose clamps, or tears that allow unmetered air to bypass the sensor. Remove the sensor from the intake tube if necessary to view the internal sensing element.
Warning: Never touch the delicate platinum wires or film inside the MAF sensor with your fingers, tools, or cotton swabs. Skin oils and physical pressure will instantly ruin the sensing element, requiring immediate part replacement.
Step 2: Scan for Diagnostic Trouble Codes (DTCs)
Plug your OBD2 diagnostic scan tool into the Data Link Connector (DLC) typically located beneath the driver-side dashboard. Turn the vehicle ignition to the ON position without starting the engine, and scan all modules for stored or pending trouble codes. Look specifically for codes P0100 through P0104, which directly indicate circuit malfunctions, range issues, or intermittent failures within the mass air flow sensor circuit. Record any companion codes, such as fuel trim codes P0171 or P0175, which often accompany a malfunctioning MAF sensor due to corrupted air-fuel calculations.
Step 3: Analyze Live Data Stream Parameters via OBD2 Scanner
Start the engine and allow it to reach normal operating temperature with all electrical accessories turned off. Access the live data stream function on your OBD2 scanner and locate the parameter identifier (PID) for mass air flow, measured in grams per second (g/s). Observe the baseline idle reading and gently tap the intake ducting or wiggle the sensor wiring harness while watching the screen to identify intermittent wiring faults.
Pro-Tip: A dependable rule of thumb for idle air flow is that the grams per second reading should roughly equal the engine displacement in liters. For example, a healthy 3.0-liter engine at normal idle should display approximately 3.0 g/s of air mass flow.
Step 4: Perform a Component Signal Voltage Test Using a Multimeter
Back-probe the signal wire of the MAF sensor harness while the engine is running, referencing your vehicle-specific wiring diagram to identify the correct signal return wire. Set your digital multimeter to measure DC voltage. At a normal idle, the signal voltage should register around 0.6 to 1.0 volts. Gradually increase the engine speed by opening the throttle manually or having an assistant depress the accelerator pedal; the voltage should rise smoothly and proportionally, peaking around 3.0 to 4.5 volts at higher RPM ranges without any dropouts or sudden voltage spikes.
Air Flow Meter Sensor Problems - BTMPSP
Technical Parameter Comparison for MAF Sensor States
| Operational Parameter | Healthy MAF Sensor | Contaminated or Failing MAF Sensor | Completely Failed MAF Sensor |
|---|---|---|---|
| Idle Air Mass (g/s) | Matches engine displacement (e.g., 2.0L = 2.0g/s) | Erratically fluctuating or stuck artificially high/low | Zero (0.0 g/s) or fixed default fallback value |
| Signal Voltage at Idle | Stable 0.6V to 1.0V DC | Fluctuating wildly or resting outside normal band | Flat-lined at 0.0V or locked at 5.0V reference |
| Voltage Response Curve | Smooth, progressive climb during acceleration | Hesitant, stepped, or delayed response curve | No voltage change during throttle actuation |
| Long-Term Fuel Trim | Stable between -10% and +10% | Pegged high (lean compensation) or low (rich) | Maximum positive or negative fuel trim saturation |
Common Failure Modes and Field Fixes
Contaminated Sensing Element
- Root Cause: Airborne dust, excessive engine oil from aftermarket washable cotton air filters, or crankcase ventilation vapors coating the platinum hot-wire element.
- Actionable Fix: Remove the sensor housing entirely and thoroughly flush the internal components using a dedicated aerosol MAF sensor cleaner, allowing it to air dry completely for at least 15 minutes before reinstallation.
Corroded or Damaged Electrical Connector
- Root Cause: Moisture ingress into the wiring harness plug, leading to terminal oxidation, high circuit resistance, and intermittent signal loss.
- Actionable Fix: Disconnect the plug, clean internal pins using electrical contact cleaner and a small nylon brush, apply a light coat of dielectric grease, and secure the latch mechanism.
Open or Shorted Internal Circuitry
- Root Cause: Thermal fatigue causing microscopic fractures in the internal printed circuit board connections or burnout of the platinum wire filament due to electrical surges.
- Actionable Fix: Replace the entire mass air flow sensor assembly, clear all stored diagnostic trouble codes with your OBD2 scanner, and perform an idle re-learn procedure if required by the vehicle manufacturer.
Unmetered Air Leaks Downstream
- Root Cause: Cracked intake boots, loose hose clamps, or deteriorated vacuum lines positioned between the MAF sensor and the engine intake valves.
- Actionable Fix: Perform a smoke test on the intake system to pinpoint smoke escaping through cracks, then replace damaged hoses or tighten all worm-gear clamps to restore proper system sealing.
Frequently Asked Questions
Can I drive my car with a bad mass air flow sensor?
Driving with a failing MAF sensor is generally discouraged because the PCM will rely on default fallback lookup tables to estimate engine load. This condition leads to severe fuel inefficiency, black smoke from unburnt fuel, sluggish throttle response, and potential long-term damage to your catalytic converter.
What are the primary symptoms of a failing mass air flow sensor?
Common symptoms include engine hesitation or stumbling upon acceleration, rough idling that may cause engine stalling when coming to a stop, unexpected drops in fuel economy, and an illuminated check engine light on the dashboard.
Will cleaning a bad mass air flow sensor fix the problem?
Cleaning resolves issues caused strictly by surface contamination, such as dust or filter oil buildup on the sensing wire. However, if the internal electronic circuitry has failed or the platinum wire is burned out, cleaning will not restore functionality and sensor replacement is mandatory.
Do I need to reset my computer after replacing a mass air flow sensor?
Yes, clearing the diagnostic trouble codes using an OBD2 scanner is necessary to wipe out old fuel trim adjustments and error histories. Many modern vehicles also require an idle re-learn cycle, which involves running the engine through various temperature and load stages so the computer can recalibrate base idle parameters.
Keep your vehicle running at peak efficiency by replacing a confirmed faulty mass air flow sensor with an OEM-spec component to restore proper fuel economy and throttle response.
