How To Check Fridge Thermostat: A Comprehensive Diagnostic Guide
A malfunctioning refrigerator thermostat fails to regulate internal temperatures accurately, leading to food spoilage, frost buildup, or compressor burnout. By testing the continuity of mechanical capillary-tube assemblies or verifying digital thermistor resistance values with a standard digital multimeter, homeowners can isolate temperature control failures within 30 minutes.
Pre-Operation & Equipment Checklist
Diagnosing a refrigerator thermostat requires a systematic approach to electrical safety, precise measurement, and mechanical inspection. Before opening the control housing, verify that the appliance is safely disconnected from live electrical circuits to prevent shock hazards.
- Essential Tools & Materials: Digital Multimeter (capable of measuring Ohms and continuity), insulated flathead and Phillips screwdrivers, a standard glass of ice water, a digital food thermometer, and a permanent marker for labeling disconnected wiring terminals.
- Mandatory Prerequisites: Basic understanding of electrical safety, familiarity with multimeter dial settings for resistance (Ohms), and unobstructed access to either the internal fresh food compartment control housing or the rear machine compartment depending on the refrigerator design.
- Estimated Benchmarks: Duration ranges between 20 to 45 minutes; budget requirements are zero if a multimeter is already available, or roughly twenty to forty dollars for a reliable entry-level digital multimeter.
Step-by-Step Diagnostic Workflow
Step 1: Disconnect Power and Locate the Thermostat Housing
Unplug the refrigerator from the wall outlet or flip the corresponding circuit breaker to cut off all electrical supply to the unit. Locate the temperature control housing, which is typically mounted behind the temperature adjustment dial inside the fresh food compartment, near the upper right or center ceiling. Remove any protective plastic covers, retaining screws, or shielding panels to expose the thermostat assembly and its connected wiring terminals.
Warning: Always verify power interruption using a non-contact voltage tester before touching exposed wiring terminals, as residual capacitance or miswired circuits can present severe electrical hazards.
Step 2: Perform the Manual Calibration and Ice-Water Test

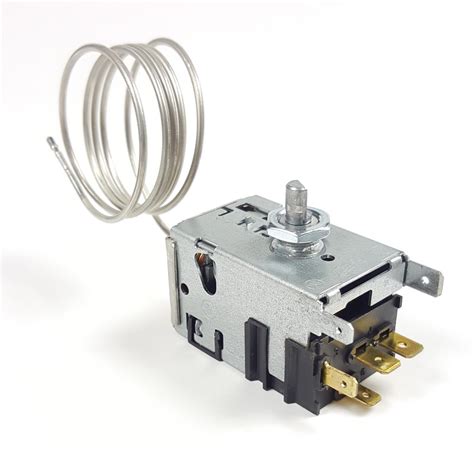

Prepare a clean glass filled completely with crushed ice and add cold water until the glass is full, stirring the mixture for thirty seconds to achieve a stable 32 degrees Fahrenheit (0 degrees Celsius) calibration bath. Carefully unclip the long metal capillary tube or sensor bulb from its mounting position on the evaporator wall or inside the control housing. Submerge only the sensitive sensing tip of the capillary tube into the ice-water slurry and wait five to ten minutes for the internal gas or fluid to react. Listen closely for the mechanical snap or click of the internal switch opening or closing as the temperature drops, or use a multimeter set to continuity mode across the thermostat terminals to check if the circuit breaks at the correct freezing threshold.
Step 3: Test Electrical Continuity and Resistance with a Multimeter
Disconnect the wire leads from the thermostat terminals, making sure to note their exact positions for correct reassembly. Set your digital multimeter to the lowest Ohms setting or the continuity buzzer mode. Place the multimeter probes across the two primary electrical terminals of the thermostat. When the thermostat is set to a very cold setting or is currently subjected to the ice-water test, a healthy mechanical switch should show zero resistance (a closed circuit with a continuous beep). Rotate the dial to the off position or allow the thermostat to warm up to room temperature; the multimeter should display infinite resistance (an open circuit or "OL" reading), indicating that the internal electrical contacts successfully open and close on demand.
Pro-Tip: If the multimeter reads infinite resistance while the sensor tip is submerged in ice water, the capillary tube has lost its internal charge, and the thermostat must be replaced immediately.
Step 4: Inspect Wiring Terminals and Digital Thermistor Sensors
For modern refrigerators utilizing electronic control boards rather than mechanical capillary thermostats, locate the thermistor sensor probe usually housed behind a plastic grille in the fresh food or freezer section. Disconnect the thermistor harness from the control board and measure its resistance in Ohms. Cross-reference your multimeter reading with the manufacturer's specific temperature-resistance chart for that model, as standard thermistors typically measure around 5,000 to 10,000 Ohms at room temperature and increase in resistance as temperatures drop. Inspect all wiring harnesses for signs of corrosion, looseness, or burnt insulation that could mimic a faulty thermostat symptom.
How Does Rv Fridge Thermostat Work at Randee Andes blog
Thermostat Diagnostic Parameters Comparison
| Testing Method | Equipment Needed | Normal Operating Condition | Failure Indicator |
|---|---|---|---|
| Mechanical Continuity | Multimeter (Ohms/Continuity) | Zero Ohms (Closed) at cold setting; Infinite Ohms (Open) at OFF | Infinite Ohms in both states |
| Ice-Water Bath | Glass, Ice, Water, Multimeter | Switch clicks open/closes near 32 Fahrenheit | No mechanical click or state change |
| Digital Thermistor | Multimeter (Ohms Scale) | Resistance matches manufacturer temperature chart | Out-of-spec resistance or short/open circuit |
| Visual & Physical | Flashlight, Screwdriver | Intact capillary tube without kinks or cracks | Punctured capillary line or oil leaks |
Common Site Failures & Field Fixes
- Root Cause: A ruptured or kinked capillary tube prevents the internal bellows from expanding and contracting with pressure changes.
- Actionable Fix: Replace the entire mechanical thermostat assembly, ensuring the new capillary tube is handled gently and never sharp-bent during installation.
- Root Cause: Oxide buildup or loose spade connectors on the thermostat terminals interrupting the 120-volt circuit to the compressor.
- Actionable Fix: Clean terminal blades with fine-grit sandpaper, tighten spade connectors with needle-nose pliers, or replace corroded wiring terminals.
- Root Cause: Frost or ice accumulation insulating the thermistor probe and preventing accurate ambient temperature sensing.
- Actionable Fix: Defrost the evaporator compartment completely, check the automatic defrost heater and defrost timer, and relocate the sensor probe clear of direct ice buildup.
- Root Cause: Incorrect temperature dial calibration causing the compressor to cycle prematurely or run continuously.
- Actionable Fix: Adjust the internal calibration screw if the manufacturer permits, or replace the faulty control knob assembly that has slipped on its shaft.
Frequently Asked Questions
How do I know if my fridge thermostat is broken or if it is the compressor?
If the interior light turns on when the door opens but the compressor and condenser fan never run, bridge the two primary thermostat wires with a jumper wire (with power disconnected first, then restored safely). If the compressor starts running immediately, the thermostat is broken; if it remains silent, the issue lies with the start relay, overload protector, or main control board.
Can a bad thermostat cause my refrigerator to freeze all my food?
Yes. When a mechanical thermostat's internal contacts weld shut due to electrical arcing, the compressor runs continuously without cycling off. This continuous operation overcools the fresh food compartment, freezing liquids and produce stored inside.
What is the ideal temperature setting for a refrigerator thermostat?
The Food and Drug Administration recommends setting the fresh food compartment to 37 to 40 degrees Fahrenheit (3 to 4 degrees Celsius) and the freezer compartment precisely at 0 degrees Fahrenheit (-18 degrees Celsius) to inhibit bacterial growth while maintaining food quality.
Can I bypass my refrigerator thermostat for testing purposes?
You can temporarily bypass a mechanical thermostat by connecting the two power wires together using a properly rated jumper wire to test compressor operation. However, never leave the refrigerator running unattended with a bypassed thermostat, as this will cause continuous, uncontrolled cooling and permanent compressor damage.
How long do refrigerator thermostats typically last?
Most residential refrigerator thermostats operate reliably for ten to fifteen years before mechanical fatigue, internal spring wear, or gas leakage within the capillary tube causes calibration drift or complete failure.
