How To Check DC Voltage On A Multimeter: A Complete Technical Guide

Measuring direct current voltage accurately requires proper meter configuration, correct probe placement, and an understanding of electrical safety parameters to prevent equipment damage or personal injury. This comprehensive guide details the exact procedures needed to safely test automotive batteries, household electronics, and low-voltage circuits using a digital multimeter.

Essential Preparation and Equipment Setup

Before touching any live electrical components, preparing your workspace and verifying your tools ensures accurate readings and prevents catastrophic short circuits. Direct current, commonly found in batteries, solar setups, and automotive electrical systems, maintains a constant polarity that demands careful meter handling.

• Essential Gear and Tools: Digital Multimeter (CAT III or CAT IV rated depending on the application), insulated test probes with sharp tips, and appropriate personal protective equipment such as safety glasses when working with high-capacity batteries.
• Prerequisite Knowledge: Familiarity with the difference between alternating current and direct current, basic understanding of digital display symbols, and knowledge of maximum voltage thresholds for your specific meter model.
• Time and Budget Benchmarks: Setup and testing take under five minutes. Entry-level consumer digital multimeters range from fifteen to fifty dollars, while professional-grade auto-ranging meters cost between one hundred and three hundred dollars.

Step-by-Step Procedure for Measuring Direct Current Voltage

Step 1: Inspect the Multimeter and Test Leads

Examine your digital multimeter and test leads for any visible physical damage, cracked insulation, or exposed metal. Plug the black test lead into the port labeled COM, which stands for common or ground. Plug the red test lead into the port labeled with the volts, ohms, and diode symbol, typically denoted as V Omega mA.

Warning: Never plug the red lead into the high-amperage port (such as 10A or 20A) when attempting to measure voltage. Doing so creates an internal short circuit through the meter, which can cause severe sparking, blown fuses, or personal injury.

Step 2: Select the Correct Meter Function and Range

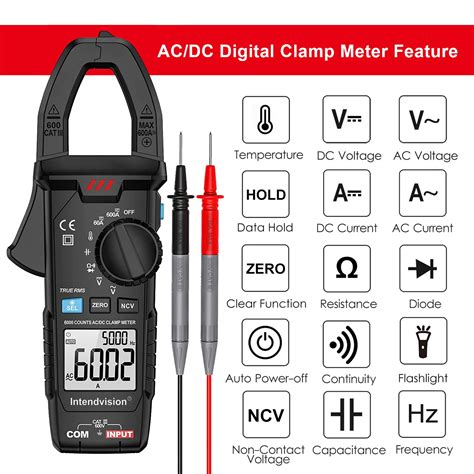

Turn the rotary dial of the multimeter to the Direct Current Voltage setting. This function is universally represented by a solid straight line situated above or beside a dashed line next to a capital V, or simply labeled VDC. If your multimeter is manual-ranging rather than auto-ranging, select a voltage range setting that is explicitly higher than the maximum expected voltage of the circuit you plan to test.

Pro-Tip: If you have zero knowledge of the expected circuit voltage on a manual-ranging meter, always start at the highest possible range setting (such as 1000V DC) and step down progressively to avoid overloading the internal circuitry.

Step 3: Connect the Probes to the Circuit

Touch the black probe tip firmly to the negative terminal, chassis ground, or reference point of the circuit. Touch the red probe tip to the positive terminal or the specific test point you want to measure. Maintain stable contact with both points for the duration of the reading.

Warning: Keep your fingers safely behind the tactile finger guards built into the plastic handles of the test probes. Never allow the exposed metal tips to bridge adjacent components or conductive surfaces.

Step 4: Interpret the Display Reading

Read the numerical value displayed on the digital screen. If the display shows a negative sign preceding the numbers, it indicates that your probe placement is reversed; the red probe is touching the negative side and the black probe is touching the positive side. The numeric value remains accurate, but reversing the probes will remove the negative sign. Remove the red probe first, followed by the black probe, upon completing the measurement.

Voltage Measurement Methodologies and Meter Settings

Troubleshooting Common Measurement Errors

• Symptom: The meter displays zero or erratic readings despite a live circuit.


  • Root Cause: Test leads inserted into incorrect ports, blown internal meter fuse, or poor physical contact with oxidized terminal surfaces.
  • Actionable Fix: Verify that the red lead occupies the voltage port, check continuity of the leads, and scrape away corrosion from the test points to ensure bare metal contact.
• Symptom: The screen displays OL (Overload) or a flashing 1 on manual range settings.


  • Root Cause: The input voltage exceeds the current maximum limit selected on the rotary dial.
  • Actionable Fix: Immediately remove the probes and turn the rotary dial to a significantly higher voltage range or switch to an auto-ranging mode.
• Symptom: The meter reads a negative voltage value.


  • Root Cause: Inverted probe polarity where the black negative lead is touching the positive terminal and vice versa.
  • Actionable Fix: Swap the positions of the red and black probes to obtain a positive numerical reading.

Frequently Asked Questions

What happens if I accidentally measure AC voltage while the meter is set to DC?

Most modern digital multimeters will display a zero, an erratic fluctuation, or an error message because the internal circuitry filters out alternating waveforms when set to direct current mode. High-end meters may offer auto-detect modes, but relying on manual selection prevents misinterpretation of live circuits.

Can I check DC voltage with the meter leads plugged into the amperage jacks?

Plugging the red lead into the current input jacks creates a direct low-resistance path inside the meter. If you attempt to measure voltage in this configuration, it acts as a dead short across the power source, instantly blowing the internal meter fuse and potentially damaging the device.

Why does my 12-volt car battery read 12.6 volts when the engine is off?

A fully charged, healthy lead-acid automotive battery resting at room temperature maintains an open-circuit voltage of approximately 12.6 volts. Readings dropping below 12.0 volts generally indicate a discharged or sulfated battery requiring a recharge or replacement.

Is it dangerous to touch the metal probe tips while testing DC voltage?

For low-voltage direct current sources such as nine-volt batteries or twelve-volt automotive systems, the risk of electrical shock is minimal due to human skin resistance. However, touching high-voltage DC systems, such as solar arrays or electric vehicle battery packs exceeding sixty volts, poses severe electrocution risks.

Mastering direct current measurements ensures you can accurately diagnose electrical faults in automotive systems, electronics, and alternative energy installations with absolute confidence and safety. Bookmark this guide for your next troubleshooting project to guarantee precise diagnostic execution.
