How To Check If Cam Sensor Is Bad: A Comprehensive Diagnostic Guide

A failing camshaft position (CMP) sensor disrupts fuel injection and ignition timing, causing rough idling, engine stalling, and persistent check engine light codes like P0340. Diagnosing a bad sensor requires utilizing a Digital Multimeter (DMM) to check resistance, reference voltage, and signal output against manufacturer specifications, or monitoring live data via an OBD-II scanner.

Pre-Procedure Planning and Diagnostic Preparation

Accurately diagnosing a camshaft position sensor requires a systematic approach to avoid misdiagnosing fuel delivery or ignition system faults as sensor failures. Before diving under the hood, mechanics must ensure they have the proper diagnostic tools and safety equipment to interface with sensitive electronic engine management components safely and effectively.

• Essential Tools and Equipment: Digital Multimeter (DMM) capable of measuring DC volts, resistance (ohms), and frequency or duty cycle; OBD-II diagnostic scan tool with live data streaming capabilities; basic metric hand tool set (sockets and ratchets); wire back-probe pins for electrical connector testing; safety glasses and insulated work gloves.
• Prerequisite Knowledge and Standards: Familiarity with automotive electrical fundamentals, ability to read wiring diagrams for specific vehicle makes and models, and an understanding of Hall effect versus inductive-type sensor operation. Standard operating temperature for resistance checks is typically 68 degrees Fahrenheit (20 degrees Celsius).
• Budget and Duration Benchmarks: Estimated financial investment for diagnostic tools ranges from zero (if tools are already owned) to one hundred fifty dollars for an advanced multimeter and scan tool. The total time required to perform a complete sensor check typically spans thirty to sixty minutes depending on component accessibility.

Step-by-Step Camshaft Position Sensor Diagnostic Workflow

Step 1: Scan for Diagnostic Trouble Codes (DTCs)

Connect your OBD-II scanner to the vehicle's data link connector (DLC) located beneath the dashboard and turn the ignition key to the ON position without starting the engine. Query the powertrain control module (PCM) for active, pending, or historic diagnostic trouble codes. Look specifically for codes ranging from P0340 through P0349, which directly indicate faults within the camshaft position sensor circuit, intermittent signals, or out-of-range parameters.

Pro-Tip: Always record freeze-frame data associated with the trouble code to understand the exact engine load, RPM, and temperature conditions when the failure occurred.

Step 2: Perform a Visual and Physical Inspection

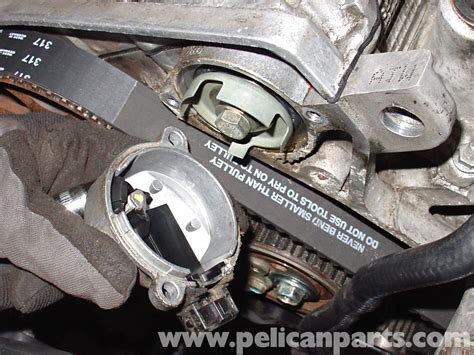

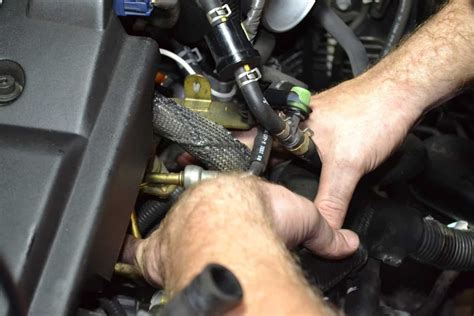

Locate the camshaft position sensor, which is typically mounted on the cylinder head, valve cover, or timing cover near the camshaft gear or tone ring. Inspect the sensor housing for cracks, oil contamination, or thermal degradation caused by exhaust manifold proximity. Disconnect the electrical wiring harness and check the terminal pins for corrosion, pushed-back pins, heavy moisture intrusion, or frayed wiring leading back to the engine control harness.

Warning: Never force or yank electrical connectors. Depress the locking tab fully and gently wiggle the housing to release it, preventing damage to fragile plastic clips and wiring insulation.

Step 3: Test Sensor Reference Voltage and Ground

Turn the ignition key to the ON position while keeping the sensor electrical harness disconnected from the sensor itself. Set your Digital Multimeter to measure direct current (DC) volts and back-probe the reference voltage (VREF) wire terminal, typically supplying five volts or twelve volts depending on the vehicle architecture. Next, test the ground circuit terminal for continuity to the engine block or battery negative terminal, confirming a reading of less than 0.2 ohms of resistance.

Step 4: Measure Sensor Signal Output and Resistance

For older inductive-type (two-wire or three-wire) sensors, switch your DMM to the ohms setting and measure the internal coil resistance across the sensor pins, comparing your reading directly against the manufacturer service manual specifications. For modern Hall effect (three-wire: power, ground, signal) sensors, reconnect the wiring harness, back-probe the signal wire, and manually crank or rotate the engine while monitoring for a fluctuating square-wave voltage signal jumping between zero and five volts.

Camshaft Sensor Types and Diagnostic Parameter Thresholds

Common Camsensor Failures and Field Fixes

• Root Cause: Internal thermal breakdown caused by repeated engine heat cycles melting the internal epoxy insulation.


  • Actionable Fix: Replace the camshaft position sensor entirely with an OEM-spec replacement unit and apply a light coating of dielectric grease to the electrical connector to seal out moisture.
• Root Cause: Excessive oil leakage from a failing valve cover gasket or camshaft seal entering the electrical connector cavity.


  • Actionable Fix: Replace the leaking gasket or seal to stop oil migration, then thoroughly flush the sensor connector with electrical contact cleaner before reconnecting.
• Root Cause: Reluctor wheel damage, timing chain stretch, or loose mounting bolts causing air-gap misalignment between the sensor tip and the target wheel.


  • Actionable Fix: Verify mechanical engine timing, ensure sensor mounting fasteners are torqued to factory specifications, and inspect the tone ring for chipped or bent teeth.
• Root Cause: Wiring harness chaffing against sharp metal brackets or engine components, causing short-to-ground or open circuits.


  • Actionable Fix: Repair damaged sections of wire using heat-shrink solder connectors and reroute the harness securely away from hot or moving engine parts.

Frequently Asked Questions

Can I drive my car with a bad camshaft position sensor?

Driving with a failing cam sensor is generally discouraged because the powertrain control module cannot accurately time fuel injection and spark delivery. This can lead to severe engine hesitation, random stalling in traffic, internal catalytic converter damage from unburnt fuel, and potential failure to start altogether.

What is the difference between a crank sensor and a cam sensor failure?

While a failing crankshaft position sensor usually results in a complete no-start condition because the computer has no reference for engine speed or piston position, a bad camshaft sensor often allows the engine to run in a default "limp" mode using fallback timing strategies based on the crank sensor alone.

Will disconnecting the battery clear cam sensor codes permanently?

Disconnecting the battery will temporarily erase diagnostic trouble codes from the computer memory, but it will not fix the underlying electrical or mechanical fault. If the sensor, wiring, or timing issue persists, the check engine light and corresponding codes will return within a few drive cycles.

Can a bad battery or alternator cause cam sensor codes?

Low system voltage caused by a weak battery or failing alternator can destabilize the reference voltage supplied to sensitive electronic sensors, occasionally triggering false camshaft or crankshaft position sensor codes. Always verify proper system charging voltage (13.5 to 14.5 volts) before replacing sensors.

Ensure Precise Engine Performance Today

Properly diagnosing and replacing a faulty camshaft position sensor restores optimal fuel efficiency, smooth acceleration, and reliable starting behavior to your vehicle. Equip yourself with the right diagnostic tools and verify every circuit parameter before investing in replacement parts.
