How To Check Your Brake Pads: A Comprehensive Professional Inspection Guide
Regularly inspecting brake pads is a critical safety procedure that requires evaluating friction material thickness against manufacturer wear limits, typically defined as 3 millimeters or less. By performing visual and physical assessments of your braking system, you can prevent rotor damage, ensure optimal stopping distances, and maintain vehicle safety standards.
Pre-Operation Requirements and Safety Gear
Performing a professional-grade brake inspection requires the correct safety equipment and a workspace that prioritizes stability. Never attempt to inspect brakes while the vehicle is resting solely on a hydraulic jack; a jack is for lifting, not for supporting the vehicle weight during maintenance.
- Essential Safety Equipment: Reliable jack stands (rated for the vehicle's gross weight), wheel chocks, and nitrile gloves to protect against hazardous brake dust.
- Technical Tooling: A dedicated brake pad thickness gauge, a lug wrench or impact gun, a flashlight with high-lumen output, and a torque wrench for final reinstallation.
- Procedural Prerequisites: Ensure the vehicle is parked on a level, hard surface—preferably concrete—and the parking brake is engaged (if inspecting front pads) or disengaged (if inspecting rear pads, though blocking wheels is mandatory).
- Time and Cost Benchmarks: Total inspection time usually ranges from 30 to 45 minutes for all four wheels. Aside from the tool investment, the cost is effectively zero for the inspection itself, though replacement parts will be required if the friction material is below the 3mm threshold.
The Systematic Brake Pad Assessment Procedure
Step 1: Securing the Vehicle and Removing Wheels
Begin by placing wheel chocks behind the tires that remain on the ground to prevent rolling. Loosen the lug nuts on the wheels you intend to inspect while the car is still on the ground—do not remove them fully. Once lifted and stabilized on jack stands, finish removing the lug nuts and pull the wheel away from the hub to expose the brake assembly.
Warning: Never use water or compressed air to clean brake components. Brake dust often contains trace amounts of asbestos or other hazardous metallic fibers. Use a dedicated brake cleaner spray to manage dust safely.
Step 2: Visual Inspection of the Friction Material

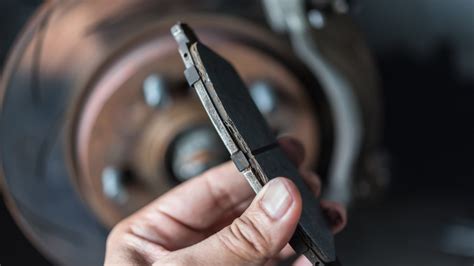

With the wheel removed, locate the brake caliper. You will see an opening in the caliper body called the inspection window. Look through this window to view the brake pad sitting against the rotor. Use your flashlight to illuminate the friction material—the thick pad of material bonded to the metal backing plate.
Step 3: Precise Measurement with a Brake Gauge
While a visual estimate is helpful, it is not diagnostic. Use a brake pad thickness gauge. Insert the gauge between the rotor and the metal backing plate of the pad. The gauge will indicate the remaining material in millimeters, often color-coded from green (safe) to yellow (caution) to red (replace immediately).
Pro-Tip: Always check both the inner and outer pads. It is common for a sticking caliper slide pin to cause uneven wear, where the inner pad wears down significantly faster than the outer pad. If you only look at the outer pad, you might miss a dangerous failure occurring on the interior side.
Step 4: Assessing Rotor Condition
While the wheel is off, evaluate the friction surface of the rotor. Look for deep scoring, blue discoloration (indicating extreme heat), or a heavy lip forming on the outer edge of the rotor. A rotor with a prominent lip or deep grooves will destroy new brake pads prematurely, regardless of how much friction material remains.
Brake Pads: What They Do, How They Wear & When to Replace
Brake Component Technical Specifications
The following table outlines the industry-standard thresholds for brake pad and rotor health, providing a clear reference for when to plan your maintenance.
| Component State | Measurement Range | Maintenance Action |
|---|---|---|
| New Condition | 10mm – 12mm | None required |
| Recommended Service | 3mm – 4mm | Order parts and schedule replacement |
| Critical Failure | Under 3mm | Cease operation and replace immediately |
| Rotor Surface | Under 0.05mm runout | Refinish or replace if grooved/scored |
Common Inspection Failures and Corrective Actions
Even when an inspection is performed correctly, several environmental or mechanical factors can mask underlying issues. Understanding these scenarios is key to vehicle longevity.
- Tapered Wear Patterns: If the pad is significantly thinner at the top than at the bottom, the caliper bracket pins are likely seized. You must remove the pins, clean them thoroughly, and apply high-temperature brake grease to ensure the caliper floats freely.
- Glazing and Heat Damage: If the friction surface appears shiny or mirror-like, the brakes have been overheated. This hardening reduces the coefficient of friction and increases stopping distance. Replace both the pads and the rotors, as the rotor surface is likely compromised.
- Dragging Brakes: If the wheel is difficult to rotate by hand after the vehicle is lifted, the caliper piston may be seized in the extended position. This requires a full caliper rebuild or replacement to prevent premature pad wear and fuel economy loss.
- Excessive Rust or Corrosion: On vehicles that sit for extended periods, the backing plate may rust away from the friction material. If you see signs of "de-lamination," where the pad material is separating from the metal plate, replace the pads regardless of thickness.
Frequently Asked Questions
How do I know if my brake pads are making noise?
Brake noise is usually categorized into two types: the high-pitched squeal of the mechanical wear indicator (a small metal tab designed to contact the rotor when the pad is low) or a grinding sound, which indicates the friction material is completely gone and metal is hitting metal. If you hear a grinding noise, you must stop driving the vehicle immediately to avoid damaging the rotors or calipers.
Is it necessary to change rotors when I change pads?
While it is not always mandatory to change rotors, it is standard practice to "turn" (resurface) or replace them when installing new pads. A new pad requires a perfectly flat, fresh surface to seat properly; installing new pads on an old, grooved, or uneven rotor will result in poor braking performance, pedal pulsation, and rapid, uneven wear of your new pads.
Can I replace only one side of the brake pads?
No, you must always replace brake pads in axle sets (both the left and right wheels). Replacing only one side will cause an imbalance in braking force, which can lead to the vehicle pulling to one side during emergency stops or erratic ABS activation.
How often should I check my brake pads?
A general rule is to inspect your brake pads every 6,000 to 10,000 miles, or every time you perform a tire rotation. If you live in an area with heavy traffic, steep hills, or extreme weather conditions, you should inspect them more frequently to account for the increased stress on the braking system.
