How To Change Pivot Table Range In Excel Like A Professional
Updating a pivot table range ensures your data analysis reflects the most current source information without requiring you to rebuild your entire report from scratch. By utilizing dynamic named ranges, Excel Tables, or the native Change Data Source wizard, you can seamlessly accommodate new rows and columns while maintaining your layout integrity.
Prerequisites and Operational Planning for Pivot Table Ranges
Modifying a pivot table range requires a clear understanding of your data architecture, including whether your source data resides in a standard worksheet range, an Excel Table, or an external database connection. Proper planning prevents broken calculated fields, missing summary rows, and orphaned filter caches.
- Essential software and tools: Microsoft Excel 2013, 2016, 2019, Excel for Microsoft 365, or Excel for Mac.
- Mandatory prerequisite knowledge: Familiarity with absolute cell referencing, the Excel Table formatting shortcut (Ctrl+T), and the Name Manager utility.
- Estimated completion duration: 2 to 5 minutes depending on the selected method.
- Budget benchmarks: Free native functionality; no third-party add-ins or macros required for standard workflows.
Step-by-Step Guide to Updating Your Pivot Table Source Range
Step 1: Open the PivotTable Analyze Toolbar
Select any single cell inside your existing pivot table to activate the contextual ribbon tabs at the top of the Excel application window. Navigate to the PivotTable Analyze tab (labeled Options in older versions of Excel) located toward the upper right section of the ribbon interface.
Step 2: Access the Change Data Source Wizard
Click on the Change Data Source command button within the Data group of the PivotTable Analyze tab. This action opens the Change PivotTable Data Source dialog box, displaying your current data source range in the Table/Range input field.
Pro-Tip: If your data source is a named range or an external connection, this input box will display the assigned name rather than explicit cell coordinates.
Step 3: Define the New Source Range
Delete the existing cell reference in the Table/Range input box and select your updated data range directly on your worksheet using your mouse, or type the new reference manually using absolute notation (such as Sheet1!$A$1:$F$500). Ensure your selection includes the exact column header row, as Excel relies on these headers to identify summary fields.
Warning: Selecting a range with missing column headers will trigger an error stating that the PivotTable field name is not valid.
Step 4: Confirm and Refresh the Report

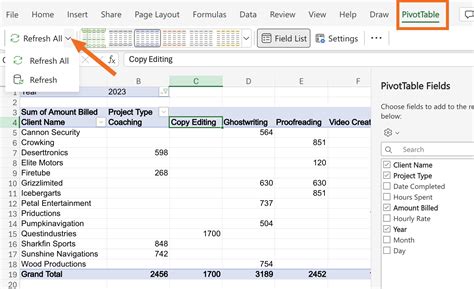

Click the OK button to close the Change PivotTable Data Source dialog box and commit your changes. Right-click anywhere inside the pivot table and select Refresh to update the underlying cache and display your newly incorporated data points.
How to Fix Pivot Table Analyze Tab Missing Issue in Excel - Excel Insider
Comparative Analysis of Pivot Table Range Expansion Methods
| Method | Best Used For | Scalability | Maintenance Effort |
|---|---|---|---|
| Manual Range Update | Static reports with infrequent, predictable row additions | Low | High (Requires manual editing every time data grows) |
| Excel Tables (Ctrl+T) | Dynamic datasets that expand vertically and horizontally | Very High | Zero (Automatically expands when new data is added) |
| Dynamic Named Ranges | Legacy workbooks incompatible with native Excel Tables | Moderate | Low (Relies on OFFSET and COUNTA formulas) |
Common Pivot Table Range Failures and Field Fixes
- Symptom: New rows of data are completely missing from the pivot table after updating the range.
- Root Cause: The updated range omitted the newly added rows, or the data was appended outside the defined boundary.
- Actionable Fix: Re-open the Change Data Source dialog and verify that your row index number encompasses the absolute final row of your dataset.
- Symptom: An error message appears stating that the data source reference is not valid.
- Root Cause: The selected range includes blank header cells or typos exist in the worksheet name reference.
- Actionable Fix: Ensure every column in your top row contains a unique text header, and check for special characters or mismatched quotation marks in sheet names.
- Symptom: Blank items appear in your row labels and filter drop-downs after expanding the range.
- Root Cause: The newly selected range includes empty rows or placeholder cells left below the active data table.
- Actionable Fix: Narrow your data source range to exclude trailing blank rows, or clear the filter cache by refreshing the pivot table settings.
Frequently Asked Questions
Why is the Change Data Source button grayed out in Excel?
The button becomes unavailable if your pivot table is connected to an external data source, an OLAP cube, or the Excel Data Model (Power Pivot). In these scenarios, source modifications must be managed through connection properties or the Power Pivot window rather than standard worksheet ranges.
How do I make my pivot table update automatically when I add new data?
Convert your source data into an official Excel Table by selecting your data range and pressing Ctrl+T. When you base your pivot table on an Excel Table object, the range expands automatically whenever you type data into the row immediately below the table.
Can I change the pivot table range using a dynamic named range?
Yes, you can define a named range using the OFFSET and COUNTA functions within the Name Manager tool. Point your pivot table source to this named range so that Excel recalculates the boundaries dynamically upon every refresh.
What happens to my custom formatting and calculated fields when I change the range?
Your custom formatting, grouping, calculated fields, and report filters remain intact as long as you maintain the original column header names in the newly selected range. Changing a header name will disassociate it from existing layout rules.
How do I add columns to an existing pivot table range?
Open the Change Data Source wizard and drag your selection horizontally to include the additional columns, making sure the header row is fully captured. Afterward, open the PivotTable Fields pane and drag the newly exposed fields into your rows, columns, or values area.
Mastering pivot table range management eliminates reporting bottlenecks and guarantees your data analytics pipeline remains accurate and responsive. Implement Excel Tables today to automate your workflow and spend less time fixing broken ranges.
