How To Calibrate A Weighing Scale: Step-by-Step Technical Guide

Calibrating a weighing scale requires isolating the instrument from environmental interference, establishing an absolute zero reference, and utilizing certified calibration masses to adjust the device's internal span coefficients. Following standardized protocols compliant with NIST Handbook 44 or ISO/IEC 17025 corrects load cell hysteresis, eliminates eccentricity drift, and guarantees measurement traceability across the entire weighing range.

Pre-Calibration Verification & Equipment Checklist

Before initiating a scale calibration protocol, you must establish an environment that meets the operating requirements of the specific weighing instrument class. Industrial bench scales, precision laboratory balances (Class II), and micro-analytical instruments (Class I) react differently to ambient interference. Thermal expansion of mechanical components, ambient air currents, static charges, and gravitational variations between geographic locations directly influence load cell signal processing.

Calibrating a scale without certified calibration masses introduces systematic errors. Standard commercial weights or arbitrary objects (such as coins) lack verified density and mass tolerances, rendering the procedure invalid for regulatory or quality-managed environments.

Operational Prerequisites Checklist

• Essential Calibration Gear & Tools:


  • Certified calibration weight sets compliant with ASTM E617 or OIML R111 specifications (Class E2 for analytical, Class F1/F2 for precision, Class M1 for commercial bench scales).
  • Non-magnetic, anti-static tweezers or clean cotton/latex gloves for handling test weights below 1 kilogram.
  • Precision circular spirit level (if not integrated into the scale housing).
  • Anti-static brush or ionizing blower for high-resolution pan cleaning.

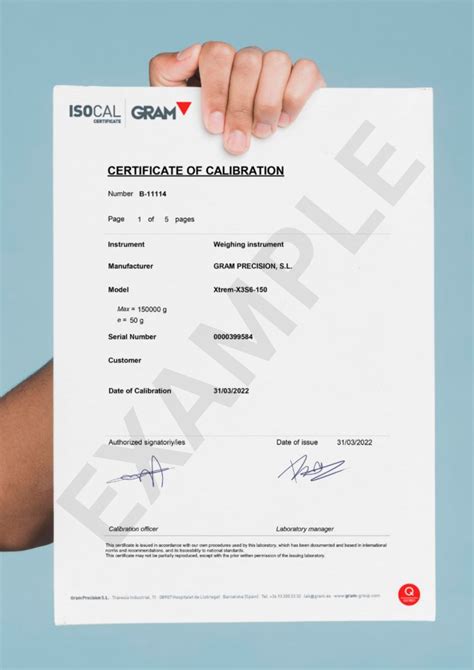

  • Calibration record log or ISO/IEC 17025 compliant documentation software.
• Mandatory Operational Standards & Knowledge:


  • Knowledge of the scale's verification scale interval ($e$), readability ($d$), and maximum capacity ($Max$).
  • Familiarity with the instrument's calibration menu sequence or hardware lockout switch location.
  • Understanding of ambient operating limits: temperature stability within $\pm 1^\circ\text{C}$ during calibration and relative humidity between 30% and 70%.
• Benchmark Estimates:


  • Thermal Stabilization Duration: 30 to 60 minutes warm-up time after connecting to electrical power (up to 4 hours for Class I analytical balances).
  • Calibration Procedure Time: 20 to 45 minutes for standard span, linearity, and eccentricity checks.
  • Resource Budget: $150 to $1,500+ for certified Class F1/M1 mass sets (requiring re-certification every 12 to 24 months).

Step-by-Step Weighing Scale Calibration Protocol

Step 1: Environmental Isolation and Structural Leveling

Position the scale on a stable, vibration-isolated surface, such as an epoxy-coated balance table or heavy granite slab. Keep the unit away from HVAC vents, direct sunlight, magnetic equipment, and high-traffic floor zones.

1. Inspect the integrated spirit bubble indicator usually situated on the rear base or display console of the scale frame.
2. Rotate the adjustable leveling feet counterclockwise or clockwise until the bubble rests in the center circle of the level sight glass.
3. Verify mechanical stability by applying light downward pressure on each corner of the housing; ensure there is no rocking motion.
4. Close all draft shield doors (for Class I and II balances) and allow the system to warm up under continuous power for the manufacturer's specified duration.

Warning: Operating a weighing instrument that is out of level changes the vector of force applied to the load cell beam, causing systematic under-reporting of mass proportional to the cosine of the tilt angle.

Step 2: Zero-Point Reference Calibration and Pan Preparation

Clean the weighing pan using a dry lint-free microfiber cloth or soft-bristle brush to clear dust, chemical residue, or debris.

1. Ensure the weighing pan is completely clear of objects and close the draft shield doors completely.

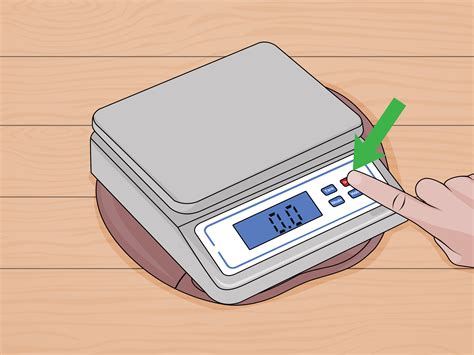

2. Power on the display and press the Zero or Tare key to set the baseline reading to absolute zero ($0.00,\text{g}$, $0.000,\text{g}$, or $0.0000,\text{g}$ depending on resolution).
3. Access the internal setup menu of the instrument. On commercial or industrial scales, this typically involves pressing and holding the CAL, MODE, or ZERO key during power-up, or toggling a physical calibration switch located behind a seal plate on the underside of the unit.
4. Select the calibration routine from the digital display interface (often designated as C-10, CAL-SPAN, or CAL-0).

Step 3: Performing Corner-Load (Eccentricity) Testing

Eccentricity testing verifies that the strain gauge or Electromagnetic Force Restoration (EMFR) sensor yields consistent mass values regardless of where the load is placed on the pan surface.

1. Identify the scale’s maximum capacity ($Max$) and select a certified test weight equivalent to approximately one-third ($1/3$) of $Max$.
2. Place the test weight sequentially in five distinct pan positions: the center, top-left quadrant, top-right quadrant, bottom-right quadrant, and bottom-left quadrant.
3. Record the readout at each position after allowing the stability indicator icon (usually an asterisk or "S" symbol) to illuminate.
4. Compare the variance between the center reading and outer quadrant readings. The maximum deviation must not exceed the maximum allowable error (MPE) specified by NIST Handbook 44 or local legal metrology guidelines for the instrument's class.

Pro-Tip: If the eccentricity error exceeds maximum limits, mechanical adjustment of the off-center load compensation screws (located at the corners of the load cell spider assembly) must be performed by a technician before adjusting electronic span parameters.

Step 4: Executing Multi-Point Linearity and Span Calibration

Span calibration establishes the linear mathematical slope linking raw sensor output (mV/V from strain gauges or current draw from EMFR coils) to defined engineering units (grams, kilograms, pounds).

1. When prompted by the system screen display (e.g., LOAD 0, CAL 0, or CLEAR), ensure the pan is empty and press Enter or Zero to store the reference zero signal coefficient.
2. Wait for the screen to prompt for the target mass value (e.g., LOAD 1000g or CAL SPAN).
3. Using gloved hands or non-magnetic tweezers, pick up the certified target weight corresponding exactly to the value displayed on the screen. Place it carefully onto the geometric center of the pan.
4. Allow the signal to settle. Once the stability symbol illuminates, press Enter to accept the primary span point.
5. If the scale supports multi-point linearity calibration, follow the prompts for intermediate reference masses (typically 25%, 50%, and 75% of full capacity). Place each requested weight on the center of the pan without sudden impacts.
6. Once the instrument displays END, PASS, or automatically reverts to standard weighing mode, carefully remove the test weights.

Warning: Never drop weights onto the scale pan. Sudden dynamic impacts generate shock loads that permanently deform the flexure elements within strain gauge load cells or damage internal lever flexures in EMFR mechanisms.

Step 5: Conducting Hysteresis and Repeatability Verification

Finalize the calibration process by verifying repeatability and checking for hysteresis errors across the entire operating range.

1. Select a reference test weight near 50% capacity and another at 100% capacity.
2. Apply the 50% capacity mass to the pan, record the settled display value, remove the mass, and allow the scale to return to zero. Repeat this sequence 10 consecutive times.
3. Calculate the standard deviation ($s$) of the 10 readings. The standard deviation represents the scale's repeatability; it must remain within $\pm 1d$ (where $d$ is the scale division) for precision applications.
4. Perform a hysteresis check by loading the scale in ascending increments (e.g., 20%, 40%, 60%, 80%, 100% capacity) and recording the values, followed immediately by unloading in descending increments (80%, 60%, 40%, 20%, 0%). The values at equivalent target points during loading and unloading must match within the specified MPE.

Calibration Weight Standards & Precision Metrics

Choosing the proper calibration mass classification prevents compounding calibration uncertainty into scale operations. Calibration weights are classified globally under ASTM E617 (North America) and OIML R111 (International) standards based on maximum permissible errors (MPE) and alloy composition.

Common Scale Calibration Failures & Field Fixes

When scale calibration fails or yields values outside of acceptable tolerances, structural, mechanical, or electronic issues must be diagnosed systematically.

• Scenario 1: Scale Displays "CAL ERR" or Refuses Span Parameter Save




  • Root Cause: The test mass placed on the pan falls outside the expected tolerance range programmed into the scale's firmware (typically $\pm 2%$ to $\pm 5%$ of target span mass), or the hardware lock switch is engaged.
  • Actionable Fix: Verify that the physical weight applied matches the exact numeric value requested on the display screen. Check the underside or rear interface panel for a physical calibration lock jumper or switch, flip it to the unlocked position, power-cycle the instrument, and re-run the routine.

• Scenario 2: Unstable or Drifting Readout During Mass Application




  • Root Cause: Ambient air currents, static electricity accumulation on plastic balance pans/draft shields, or temperature instability causing load cell resistance drift.
  • Actionable Fix: Wipe plastic components with an anti-static solution or utilize an inline AC ionization bar. Close all draft shield panels, move the instrument away from air vents, and verify that the scale has warmed up continuously for at least 30 minutes.

• Scenario 3: Significant Eccentricity Variations Across Pan Quadrants




  • Root Cause: Mechanical binding, dirt accumulation beneath the pan support spider, or structural deformation of the load cell flexure arms from past overload events.
  • Actionable Fix: Remove the weighing pan and spider mechanism. Clean away foreign particulates using compressed air or an anti-static brush. Reassemble and inspect for physical contact between internal mechanical stops and the load cell beam. If corner adjustments remain outside specifications, adjust corner-loading setscrews carefully or replace the load cell.

• Scenario 4: Non-Linear Output Across Mid-Range Measuring Span




  • Root Cause: Internal hysteresis accumulation or physical degradation of the strain gauge adhesive matrix due to age, environmental oxidation, or chemical contamination.
  • Actionable Fix: Execute a full factory reset to clear existing linearity parameters. Initiate a multi-point linear calibration routine using intermediate reference masses at 25%, 50%, 75%, and 100% capacity rather than relying on a single-point span calibration.

Frequently Asked Questions

How often should an industrial or laboratory weighing scale be calibrated?

Process risk, regulatory requirements, and frequency of use dictate calibration intervals. High-risk operational environments, such as pharmaceutical manufacturing or legal-for-trade applications, require formal ISO 17025 certified recalibration every 6 to 12 months, supplemented by daily or weekly internal operational span checks using routine working standards.

Can I calibrate a digital scale using common household items like coins?

No. Standard consumer items exhibit broad manufacturing mass variations due to wear, metallic composition changes, surface oils, and corrosion. Coins lack traceability and certified tolerance limits, making them unsuitable for calibrating scales intended for precise, reproducible, or compliant measurements.

What is the distinction between scale calibration and scale adjustment?

Calibration is the quantitative act of measuring an instrument's output against a known, traceable standard to identify and document deviation errors without modifying the hardware or software. Scale adjustment involves altering the instrument's electronic internal span coefficients or mechanical linkages to align its displayed values with the true value of the reference standard.

Why does moving a scale to a different location invalidate its calibration?

Earth's gravitational acceleration ($g$) varies depending on latitude, elevation, and local geographic geology. Because load cells measure the force ($F = m \cdot g$) exerted by a mass, moving a scale to a different geographic region or higher altitude changes the measured force, requiring recalibration at the new physical installation site.
