How To Calibrate A Thermostat For Precise Temperature Control
Calibrating a thermostat involves comparing the unit’s current temperature reading against an independent, high-accuracy reference thermometer and adjusting the internal offset settings to bridge the gap. This process ensures your HVAC system cycles accurately based on ambient room conditions rather than sensor drift, typically requiring a 20-minute stabilization period and a manual offset adjustment found within the device’s installer menu.
Prerequisites and Necessary Diagnostic Equipment
Before adjusting your thermostat, you must ensure the environment is stabilized and that you possess the correct verification tools. Thermostat calibration is not a physical manipulation of internal components but a software-driven adjustment of the device's sensor offset. If the internal sensor is failing due to debris or electrical shorts, calibration will not resolve the underlying issue.
- Reference Tool: A high-precision digital thermometer or a laboratory-grade mercury-free liquid thermometer with a calibration accuracy of at least plus or minus 0.5 degrees Fahrenheit.
- Safety Gear: Non-conductive gloves if you are accessing exposed wiring, though most calibration processes are strictly interface-based.
- Documentation: The specific owner’s manual or installer’s guide for your thermostat model to navigate the proprietary installer menus.
- Environment: The space must be free of direct sunlight, drafts from windows or doors, and away from heat-emitting appliances like lamps or televisions, which can skew local ambient temperature readings.
- Time Benchmark: Allow 15 to 20 minutes for the reference thermometer to acclimate to the room temperature before taking your baseline reading.
The Systematic Calibration Workflow
Step 1: Establish a Baseline Temperature
Mount your reference thermometer as close as possible to the thermostat housing without touching it. Ensure the thermometer is at the same vertical height as the thermostat. Leave the device undisturbed for at least 20 minutes. Avoid standing directly next to the devices during this time, as human body heat can influence the readings by several degrees. Once the time has elapsed, record the exact temperature displayed on your reference device.
Step 2: Access the Installer Calibration Menu
Each manufacturer utilizes a unique command sequence to access the "Installer Setup" or "Advanced Configuration" menus. For most modern digital thermostats, this involves holding down the Menu, Setup, or a combination of specific buttons for 5 to 10 seconds. Refer to your device documentation to locate the parameter designated as Temperature Offset, Calibration, or Temp Adjust.

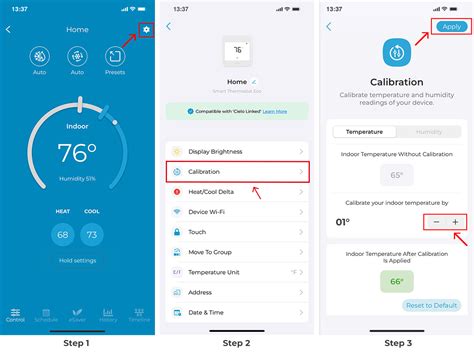

Pro-Tip: If your thermostat is a smart model connected via Wi-Fi, check the mobile application settings first; many modern smart thermostats allow for remote calibration adjustments without requiring manual menu navigation at the wall unit.
Step 3: Calculate the Required Offset
Subtract the thermostat’s current displayed temperature from the reading provided by your reference thermometer. If your thermostat reads 72 degrees and your reference thermometer reads 70 degrees, you must apply a negative offset of -2 degrees. Conversely, if the thermostat reads 68 degrees and the reference reads 70 degrees, you must apply a positive offset of +2 degrees.
Step 4: Apply and Verify the Adjustment
Navigate back to the offset parameter in the installer menu and input the value calculated in the previous step. Confirm the entry according to the manufacturer's prompts. Once saved, the thermostat’s display should immediately update to match your reference thermometer. Observe the system for one complete heating or cooling cycle to ensure the setpoint logic now aligns with actual room comfort levels.
Step 5: Post-Calibration Maintenance
Inspect the thermostat housing for dust accumulation. Use a soft, dry microfiber cloth or a can of compressed air to clean the vents around the sensor. If the thermostat continues to show drift after a calibration, check for drafts coming through the hole in the wall where the wires enter the unit; sealing this gap with a small amount of non-conductive foam or putty is a critical industry standard to prevent wall-cavity air from interfering with the internal sensor.
How to Calibrate a Honeywell Thermostat - Tom's Tek Stop
Comparative Overview of Thermostat Calibration Parameters
| Feature | Mechanical/Bimetallic | Digital Non-Programmable | Smart/Communicating |
|---|---|---|---|
| Adjustment Method | Manual screw/physical dial | Internal software offset | Mobile app/Web portal |
| Accuracy Tolerance | Plus/minus 2-3 degrees | Plus/minus 0.5-1 degree | Plus/minus 0.1 degrees |
| Calibration Stability | Low; prone to mechanical wear | High; drift is usually software | Very High; auto-updates |
| Verification Required | Yes (Monthly) | Yes (Seasonal) | Rarely (Auto-Calibrates) |
Troubleshooting Common Sensor and Calibration Failures
- Persistent Temperature Drift: If the thermostat continues to drift by more than 3 degrees consistently, the thermistor (the internal temperature sensor) may be failing. Actionable Fix: Inspect the unit for corrosion or moisture damage. If the sensor is compromised, the entire thermostat unit must be replaced rather than recalibrated.
- Short Cycling Post-Adjustment: This occurs when the offset is set too aggressively, causing the HVAC system to trip the internal safety thermal overload. Actionable Fix: Reset the offset to zero and recalibrate in smaller, one-degree increments until the desired accuracy is achieved.
- Ghost Heating/Cooling: Often caused by heat transfer from the wall cavity through the wire access hole. Actionable Fix: Disconnect the thermostat faceplate and use spray foam or painter’s putty to seal the wall opening, preventing attic or wall-cavity air from blowing directly onto the sensor.
Frequently Asked Questions
Why does my thermostat display a different temperature than the rest of the house?
Thermostats only measure the air in their immediate, localized proximity. If the unit is located in a hallway or near a high-traffic area, it will not accurately reflect the temperature in rooms with closed doors or different levels of insulation.
How often should I calibrate my thermostat?
Calibration is generally only necessary if you notice a persistent discrepancy between your desired comfort level and the unit's performance. For most homes, checking the calibration once per year during the seasonal HVAC maintenance check is sufficient.
Can I calibrate a non-digital, old-fashioned mercury thermostat?
Yes, but the process is mechanical. It involves adjusting the small metal clip or screw near the bimetallic coil to move the mercury bulb slightly, though this is highly imprecise and not recommended for those without specialized HVAC training.
Will changing the offset hurt my HVAC system?
No, the offset is a software parameter designed to account for environmental variables. It simply tells the internal processor to add or subtract a specific value from the raw sensor data before determining if the heating or cooling relay needs to engage.
Professional HVAC Consultation
If your thermostat fails to maintain a consistent reading after following these steps, contact a certified HVAC technician to evaluate your sensor integrity and system wiring. Proactive monitoring of your climate control settings prevents energy waste and extends the lifespan of your entire HVAC infrastructure.
