How To Calibrate Temperature Sensor Systems Accurately
Temperature sensor calibration is the systematic process of comparing a sensor's readings against a traceable reference standard across a controlled thermal range to eliminate systematic bias. Executing this procedure correctly involves establishing stable bath environments, calculating millivolt or resistance deviations, and adjusting transmitter configurations to maintain compliance with ISO, NIST, or FDA quality mandates.
Essential Calibration Setup Requirements
Establishing a repeatable bench calibration process requires strict adherence to metrological standards, clean-room practices, and precise equipment selection. Without proper thermal stabilization and certified reference standards, sensor drift will compromise industrial process safety and data integrity.
- Essential Equipment & Tools: Certified dry-block calibrator or stirred liquid bath, secondary reference thermometer (PRT or SPRT) with a traceable calibration certificate, high-resolution digital multimeter (minimum 6.5 digits) or dedicated process calibrator, insulated test leads, and manufacturer-specific configuration software or HART communicators.
- Mandatory Prerequisites & Standards: Technicians must understand ITS-90 (International Temperature Scale of 1990) standards, thermocouple reference junction compensation, and four-wire RTD connection principles to eliminate lead-wire resistance errors.
- Project Benchmarks: Budget varies from $500 for basic handheld calibrators to over $10,000 for primary industrial thermal blocks; completion time ranges from 45 minutes to 2 hours per sensor depending on stabilization dwell times.
Step-by-Step Temperature Sensor Calibration Workflow
Step 1: Pre-Inspection and Loop Documentation
Examine the physical structure of the temperature sensor for mechanical damage, sheath corrosion, seal degradation, or lead-wire insulation cracking. Record the sensor serial number, tag number, installation location, and manufacturer specifications into your calibration log or computerized maintenance management system (CMMS). Disconnect the sensor from the primary control loop or PLC input channel and safely isolate any associated power sources to prevent electrical shock or ground loops.
Warning: Never attempt to calibrate a sensor while it remains energized in a live industrial loop unless utilizing a certified intrinsically safe loop calibrator in parallel mode.
Step 2: Establish the Thermal Reference Environment
Power on your dry-block calibrator or liquid immersion bath and program your first target test point. For standard industrial applications, select a minimum of three distinct calibration points spanning your operational range, such as 0 degrees Celsius, 50 degrees Celsius, and 100 degrees Celsius. Allow the thermal bath or block to achieve complete temperature stabilization, indicated by a temperature fluctuation of less than plus or minus 0.01 degrees Celsius over a consecutive three-minute window.
Pro-Tip: Always insert the Unit Under Test (UUT) and the secondary reference standard probe to identical immersion depths within the dry-block insert to eliminate thermal gradient errors.
Step 3: Data Acquisition and Error Calculation
Insert both the reference probe and the UUT into the stabilization block and allow sufficient soak time for thermal equilibrium, typically 5 to 15 minutes depending on probe diameter. Measure the electrical output of the sensor—ohms for Resistance Temperature Detectors (RTDs), millivolts for thermocouples, or 4-20mA for transmitters—using your digital multimeter. Compare the converted UUT reading against the exact temperature displayed by the certified reference standard to calculate absolute error.
Step 4: Transmitter Adjustment and Trim Execution
If the calculated error exceeds the manufacturer tolerance or your facility's internal standard, initiate the trimming sequence. Connect the HART communicator or proprietary software interface to the head-mounted or remote temperature transmitter. Input the measured offset values into the zero and span trim parameters, or execute a sensor-trim command to align the 4-20mA output precisely with the reference temperature inputs.
Step 5: Verification and Calibration Certificate Generation
Repeat the data acquisition process across all test points to verify that the sensor now meets required accuracy thresholds following the adjustment. Document the "As Found" and "As Left" data points, environmental conditions, reference standard serial numbers, and technician signatures in an official calibration certificate. Affix a calibration label to the sensor assembly indicating the calibration date, due date, and technician ID.

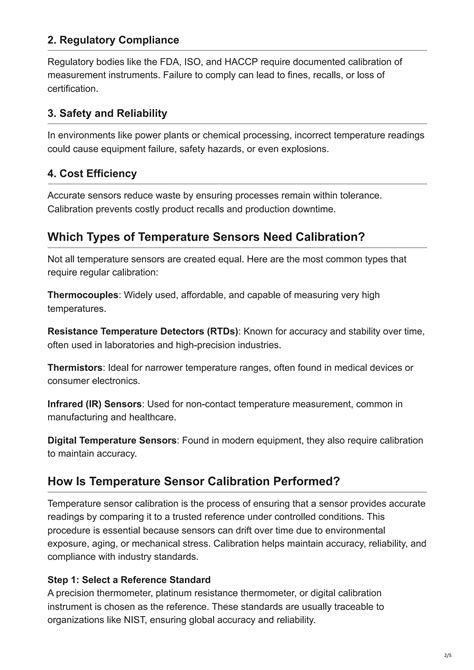

Contact temperature sensor calibration | PPTX
Comparative Analysis of Temperature Sensor Calibration Methods
| Calibration Method | Typical Accuracy | Operating Range | Best Suited For | Primary Limitation |
|---|---|---|---|---|
| Dry-Block Calibrator | Plus or Minus 0.1C to 0.5C | -35C to 650C | Industrial plant maintenance and quick field checks | Limited immersion depth and well-to-probe clearance issues |
| Stirred Liquid Bath | Plus or Minus 0.005C to 0.05C | -80C to 300C | High-precision laboratory environments and secondary standards | Requires hazardous or messy fluid handling (oil, water, alcohol) |
| Ice-Point Bath | Plus or Minus 0.01C | Exactly 0C (32F) | Thermocouple reference junction verification and fixed-point checks | Limited to a single thermal reference point |
| Fixed-Point Cells (Water/Gallium) | Plus or Minus 0.0001C | 0.01C to 29.7646C | Primary metrology laboratories and National Standards Institutes | Extremely expensive equipment and complex operational procedures |
Troubleshooting Common Calibration Failures and Field Fixes
- Excessive Nonlinear Drift Across the Thermal Range:
- Root Cause: Physical contamination of the platinum element in RTDs, internal moisture ingress, or mechanical strain fracturing internal lead wires.
- Actionable Fix: Perform an insulation resistance (megohm) test between the sensor leads and sheath. If resistance falls below 100 megohms at room temperature, replace the sensor assembly.
- Unstable or Fluctuating Digital Readings:
- Root Cause: Electromagnetic interference (EMI) from nearby variable frequency drives or loose terminal block connections causing intermittent contact resistance.
- Actionable Fix: Verify that shielded twisted-pair cable is grounded at one end only, retightened all terminal screws, and route signal cables away from high-voltage power lines.
- Constant Systematic Offset at All Test Points:
- Root Cause: Incorrect transmitter range configuration, mismatched thermocouple extension wire types, or failure to account for cold junction compensation.
- Actionable Fix: Check transmitter configuration files for correct range scaling, inspect wiring junctions for matching alloy types, and perform a zero-trim on the transmitter electronics.
Frequently Asked Questions
How often should industrial temperature sensors be calibrated?
Most industrial temperature sensors require calibration every 6 to 12 months, depending on process criticality, operating temperatures, and historical drift data. Severe environments involving high vibration, extreme thermal cycling, or corrosive chemicals demand more frequent verification intervals, such as quarterly or monthly checks.
What is the difference between a sensor calibration and a loop calibration?
Sensor calibration evaluates only the sensing element and its immediate transmitter by exposing it to known temperatures to verify accuracy. Loop calibration tests the entire instrumentation chain, including the sensor, transmitter, wiring, barriers, and control system input cards, by injecting simulated signals to verify end-to-end loop integrity.
Can thermocouples be calibrated without a reference thermometer?
Calibrating a thermocouple accurately requires a known reference standard because thermocouple output voltage is relative to the temperature difference between the measuring junction and the reference junction. Utilizing single-point ice baths provides a reliable 0 degrees Celsius baseline, but full-range verification requires certified thermal blocks and reference probes.
What causes a temperature sensor to drift out of calibration?
Sensor drift is primarily caused by mechanical shock, thermal stress aging the sensing element, chemical contamination diffusing through the protective sheath, or micro-fractures in platinum thin-film RTDs. High temperatures accelerate these degradation processes, altering the fundamental electrical resistance or thermoelectric voltage characteristics over time.
How do I select the right dry-block calibrator for my facility?
Select a dry-block calibrator by evaluating your required temperature range, block diameter, well depth, and accuracy class. Ensure the calibrator's temperature stability and radial uniformity exceed the precision requirements of the plant sensors you maintain by a factor of at least four to one.
