How To Build A Retaining Wall Step By Step: An Engineering And Installation Guide

To build a structurally sound retaining wall, you must excavate a trench deep enough to bury the first course of blocks, establish a 6-inch compacted gravel base, and incorporate a perforated drainage pipe to eliminate hydrostatic pressure. Achieving a 1:12 batter (inward slope) and using clean 3/4-inch crushed stone for backfill are the technical benchmarks required to prevent wall tipping and long-term soil failure.

Engineering Prerequisites and Site Preparation Logistics

Before breaking ground, it is imperative to understand the physics of earth retention. A retaining wall's primary enemy is not the weight of the soil itself, but hydrostatic pressure—the buildup of water weight behind the structure. A wall that stands four feet tall can be holding back nearly 20 tons of saturated earth. Consequently, any wall exceeding 36 to 48 inches (depending on local municipal codes) generally requires a stamped drawing from a licensed structural engineer.

Essential Equipment and Materials Checklist

• Earthwork Tools: Power plate compactor (mandatory for base stability), trenching shovel, mattock, and a gas-powered cutoff saw with a diamond blade for block modifications.
• Precision Instruments: 4-foot carpenter’s level, torpedo level, laser level (recommended for walls over 20 feet), and high-visibility masonry string lines.
• Structural Materials: SRW (Segmental Retaining Wall) blocks, 3/4-inch clean crushed stone (for drainage), Dense Graded Aggregate (DGA) or 21A crushed stone with fines (for the base), and non-woven geotextile filter fabric.
• Drainage Components: 4-inch perforated HDPE or PVC drainage pipe, decorative capstones, and high-strength concrete masonry adhesive.

Estimated Project Benchmarks

• Timeline: 2–3 days for a 30-foot long, 3-foot high wall.
• Budgetary Scope: $15–$35 per square foot depending on block selection and soil disposal fees.
• Prerequisite Knowledge: Understanding of "Angle of Repose" and soil compaction density (95% Proctor density is the industry standard).

Phased Execution of Structural Earth Retention

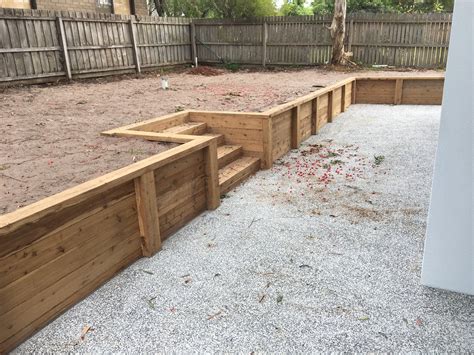

The following workflow focuses on Segmental Retaining Walls (SRW), which utilize gravity and friction for stability. If you are using timber or natural dry-stack stone, the drainage principles remain identical, though the fastening methods will vary.

Step 1: Site Layout and Excavation Geometry

Begin by marking the wall’s path using marking paint. If the wall is curved, use a garden hose to find the radius. When excavating, you must dig a trench that is twice as wide as the block’s depth. For a standard 12-inch deep block, your trench should be 24 inches wide. This allows 6 inches of space in front of the block and 6 inches behind for the drainage column.

The depth of the trench is determined by the "burial" rule. You must bury at least one full course of block or 10% of the wall's total height, whichever is greater, plus 6 inches for the aggregate base.

Warning: Always call 811 to have underground utilities marked before excavation. Severing a high-voltage line or a gas main is a fatal error that occurs most frequently during "minor" landscaping projects.

Step 2: Establishing a High-Density Foundation

The longevity of your wall is entirely dependent on the base. Fill the bottom 6 inches of your trench with Dense Graded Aggregate (DGA). Do not use sand or pea gravel; you need a material with varying particle sizes that can lock together.

Use a power plate compactor to vibrate the base in 2-inch lifts (layers). If you attempt to compact 6 inches all at once, the bottom 3 inches will remain loose, leading to future subsidence. Level the base perfectly from side to side and slightly downward toward the ends of the wall to assist with water runoff.

Step 3: Setting the Base Course with Precision

The first course of blocks is the most difficult and the most critical. Place your first block at the lowest point of the wall. Use a 4-foot level to ensure it is level from front to back and side to side. Use a rubber mallet to settle the block into the aggregate.

As you lay subsequent blocks, check the level against the previous block. Any deviation in the base course will be magnified exponentially as the wall grows taller. If you are building on a slope, use "stepped up" footings, ensuring each step is exactly the height of one block.

Pro-Tip: Fill the hollow cores of the blocks and the 6-inch gap in front of the blocks with the same DGA used for the base. This "locks" the base course into the earth, preventing "toe-kick" (the bottom of the wall sliding outward).

Step 4: Installing the Drainage Infrastructure

Once the first course is set, lay your non-woven geotextile fabric. This fabric should start at the back of the first block, run down the back of the trench, and then up the cut earth slope. Place a 4-inch perforated pipe on top of the fabric behind the blocks.

Ensure the pipe is sloped at a 1% grade toward an exit point (daylight) or a dry well. This pipe is the "safety valve" for your wall. Cover the pipe with 3/4-inch clean crushed stone. This stone must be "clean" (no fines) to allow water to pass through freely.

Step 5: Stacking, Batter, and Geo-Grid Reinforcement

As you stack the second and third courses, ensure you are using a "running bond" pattern, meaning the vertical seams of the blocks do not align with the seams below. Most modern SRW blocks have a built-in lip or pin system that automatically creates a "batter"—a slight backward lean into the hill.

If your wall is over 3 feet tall, you must incorporate geo-grid (a high-tenacity polymer mesh). Lay the grid between courses, extending it from the block face back into the reinforced soil zone. This integrates the weight of the soil behind the wall into the structure itself, making the earth work for the wall rather than against it.

Step 6: Backfilling and Final Compaction

Backfill behind the blocks with clean crushed stone for a width of at least 12 inches. Outside of that 12-inch drainage column, you can use native soil, provided it is not heavy clay. Compact the backfill every 6 to 8 inches of height.

Pro-Tip: Never use a power compactor directly against the back of the blocks. The vibration can push the wall out of alignment. Use a hand tamper within 12 inches of the wall face and the power compactor further back.

Step 7: Capping and Sealing the Structure

The final step is the installation of capstones. These provide a finished aesthetic and prevent surface water from entering the hollow cores of the blocks. Sweep all dust and debris off the top course of blocks. Apply two 1/2-inch beads of professional-grade masonry adhesive to each block and set the capstones firmly. If the wall is curved, you will need to use a masonry saw to cut miter joints in the caps for a seamless look.

Material Selection and Engineering Thresholds

Choosing the right material involves balancing aesthetic desires with the mechanical requirements of the site's topography. The following table compares standard materials used in residential and light commercial earth retention.

Common Site Failures and Field Fixes

Even with high-quality materials, environmental factors can lead to structural distress. Identifying these issues early can save the wall from total collapse.

• Scenario: The "Mid-Wall Bulge"


  • Root Cause: This is typically caused by using "fines-heavy" soil for backfill instead of clean crushed stone. The soil expands when wet and shrinks when dry, creating a ratcheting effect that pushes the blocks out.
  • Actionable Fix: Unfortunately, there is no topical fix. The wall must be deconstructed down to the bulge, the poor soil removed, and replaced with 3/4-inch clean stone and geo-grid reinforcement.
• Scenario: Efflorescence (White Chalky Stains)


  • Root Cause: Water is migrating through the block from the backfill, carrying mineral salts to the surface. This indicates the drainage column is either missing or clogged.
  • Actionable Fix: Clean the surface with a mild solution of white vinegar and water. To stop the recurrence, ensure the top of the wall is capped and the drainage pipe is clear.
• Scenario: Differential Settlement (One section sinking)


  • Root Cause: Inadequate base compaction or building over an old utility trench where the soil was never properly settled.
  • Actionable Fix: If the settlement is less than 1 inch, you may be able to ignore it aesthetically. If it affects structural integrity, the affected section must be pulled, the base rebuilt with DGA, and re-compacted to 95% Proctor density before re-stacking.

Frequently Asked Questions

Do I need a permit to build a 4-foot retaining wall?

In most jurisdictions, any wall 48 inches or taller (measured from the bottom of the base course to the top of the cap) requires a building permit and an engineering seal. Always check with your local building department, as some high-seismic or high-clay areas require permits for walls as low as 24 inches.

Can I use the dirt I excavated to backfill the wall?

You should generally avoid using native soil within 12 inches of the back of the wall. Native soil, especially clay, retains water and expands, which puts immense pressure on the structure. Use 3/4-inch clean crushed stone for the immediate backfill to ensure rapid drainage.

How do I handle a wall that meets a house foundation?

Never tie a retaining wall directly into a residential foundation with rebar or adhesive. The retaining wall and the house will settle at different rates and move differently during freeze-thaw cycles. Use a "soft joint" of filter fabric or an expansion joint filler to allow independent movement.

What is the purpose of a "deadman" in a wall?

A "deadman" is a structural member (usually a 6x6 timber or a large header stone) that extends perpendicularly from the wall face back into the hillside. It acts as an anchor, using the weight of the earth above it to hold the wall face in a vertical position and prevent tipping.

Enhance Your Landscape with Professional Earth Retention

Building a retaining wall is a significant investment in your property’s structural integrity and usable square footage. By adhering to these engineering standards and focusing on rigorous base preparation, you can ensure a wall that remains level and functional for decades.
