How To Build A Resonant Coil: Complete Engineering And Assembly Guide

Constructing a high-performance resonant coil requires precise calculation of inductance, distributed capacitance, and operating frequency to achieve optimal electromagnetic energy transfer. By adhering to rigorous electrical standards and proper wire selection, you can design a functional inductor-capacitor circuit capable of efficient high-frequency oscillation.

Pre-Operation & Equipment Checklist

Designing and building a functional resonant coil demands a methodical approach to material selection and precision measurement. Before initiating the physical build, ensure you have established the target resonant frequency, operating voltage, and power handling requirements.

• Essential Gear, Tools, and Materials:




  • Form former (PVC pipe, Delrin, or ceramic tube for low dielectric losses)
  • Magnet wire (enameled copper wire, typically American Wire Gauge 18 to 24 depending on frequency)
  • Litz wire or heavy-gauge primary wire for coupling turns
  • Precision LCR meter or an oscilloscope with a signal generator for frequency tuning
  • High-voltage, low-loss capacitors (polypropylene film or doorknob ceramic capacitors)
  • Insulation varnish or polyurethane spray to lock winding pitch
  • Soldering station, heat shrink tubing, and wire strippers

• Prerequisite Knowledge and Standards:




  • Mastery of fundamental LC resonance equations ($f = \frac{1}{2\pi\sqrt{LC}}$)
  • Familiarity with the skin effect at high frequencies and proximity losses in multi-turn coils

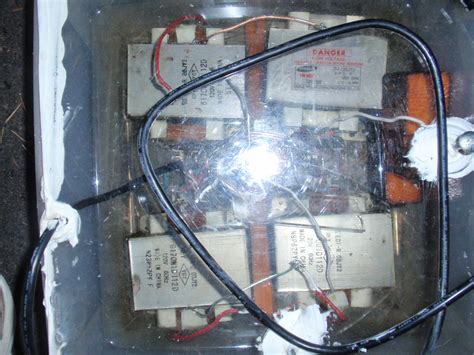

  • Strict adherence to high-voltage safety protocols, especially when interfacing with secondary resonant transformers

• Benchmarks:




  • Estimated budget: Fifty to two hundred dollars depending on capacitor ratings and core materials
  • Time investment: Four to six hours of active fabrication, plus curing time for sealants

Step-by-Step Construction and Tuning Workflow

Step 1: Calculating Inductance and Geometry

• Determine your target operating frequency and select a suitable capacitor value ($C$).
• Calculate the required inductance ($L$) using the rearranged resonance equation: $L = \frac{1}{4 \pi^2 f^2 C}$.
• Choose a coil form diameter ($D$) and length ($l$). Use Wheeler's formula for single-layer air-core inductors to estimate the required number of turns ($N$): $L = \frac{r^2 N^2}{9r + 10l}$, where $r$ is the radius of the coil in inches and $l$ is the length.

Pro-Tip: Keep the length-to-diameter ratio of your secondary winding between 3:1 and 5:1 to maximize the axial magnetic field strength while minimizing parasitic inter-turn capacitance.

Step 2: Winding the Secondary Coil

• Secure one end of the enameled copper wire to the base of your non-conductive cylindrical former, leaving a twelve-inch lead for grounding.
• Wind the wire under consistent tension, ensuring every turn touches the adjacent turn without overlapping. Maintain a mechanical jig or lathe if possible to guarantee uniform pitch.
• Count the turns meticulously as you proceed. Reaching your calculated turn count ensures your inductance falls within the target window.
• Terminate the upper end of the winding securely. Apply a thin, even coat of polyurethane varnish or acrylic spray to lock the turns in place and prevent microphonic vibration or corona discharge.

Warning: Never use thick, high-loss sealants or carbon-based adhesives, as they introduce parasitic capacitance and dielectric losses that dampen the resonant Q-factor.

Step 3: Installing the Primary Coupling Winding

• Construct the primary winding concentric to or immediately below the secondary coil, depending on your coupling topology.
• Use heavy-gauge insulated wire or copper tubing to handle high circulating primary currents without excessive ohmic heating.
• Space the primary turns away from the secondary base to prevent voltage flashover and allow adjustable coupling coefficients. Typically, a separation distance of one-quarter to one-half inch is safe for low-to-medium power applications.

Step 4: Integrating the Capacitance and Tuning

• Connect your high-frequency, low-loss capacitor in parallel or series with the coil to form the complete tank circuit.
• Connect a signal generator across the circuit and use an oscilloscope with a high-impedance probe to locate the resonant peak.
• Adjust the capacitor value or tweak the primary tap points until the voltage amplitude reaches a sharp maximum at your exact target frequency, confirming high-Q resonance.

Technical Specifications and Parameter Matrix

Common Fabrication Failures and Field Fixes

• Symptom: The circuit exhibits a broad, flat frequency response with a low Q-factor.




  • Root Cause: Dielectric losses from the form material or high resistance due to improper wire selection operating within the skin effect depth.
  • Actionable Fix: Strip the coil, switch to a low-loss form material such as PTFE or ceramic, and ensure your wire diameter is at least twice the skin depth calculated for your operating frequency.

• Symptom: Arcing or corona discharge forms between adjacent turns at high voltage.




  • Root Cause: Insufficient insulation, uneven winding tension, or operating above the breakdown voltage of the wire enamel.
  • Actionable Fix: Re-varnish the coil with a high-dielectric electrical grade resin, and space out the turns or use triple-insulated wire if operating voltages exceed one kilovolt.

• Symptom: Measured inductance deviates significantly from theoretical calculations.




  • Root Cause: Parasitic capacitance from proximity to nearby metal chassis components or incorrect form dimensions.
  • Actionable Fix: Relocate the resonant assembly at least three diameters away from any conductive enclosures, metal ground planes, or wiring loops, and remeasure using a calibrated LCR meter.

Frequently Asked Questions

What determines the Q-factor of a resonant coil?

The Q-factor (quality factor) is determined by the ratio of inductive reactance to total series resistance at the resonant frequency. Minimizing wire resistance, reducing core losses, and utilizing high-purity dielectrics all contribute to a higher Q-factor, resulting in sharper resonance and higher voltage amplification.

Can I use insulated hook-up wire instead of magnet wire?

Hook-up wire features thick PVC or PTFE insulation that drastically increases the distance between adjacent turns, lowering distributed capacitance but also reducing mutual inductance per unit length. For optimal performance, enameled magnet wire is preferred for close-wound coils, while spaced-turn designs can utilize insulated conductors.

How do I prevent skin effect losses at high frequencies?

At high frequencies, alternating current flows exclusively along the outer perimeter of the conductor. To mitigate this resistance increase, use Litz wire (composed of many individually insulated strands) or thin-walled copper tubing instead of a single solid conductor of equivalent cross-sectional area.

What is the purpose of the primary coil if the secondary is resonant?

The primary coil acts as an inductive transformer coupling stage, safely transferring energy from your power source or oscillator circuit into the secondary tank. Without a well-coupled primary, you cannot efficiently inject energy to sustain resonance against resistive and radiative losses.

Mastering advanced electromagnetic construction techniques ensures reliable operation across demanding industrial and experimental applications. Begin designing your resonant coil assembly today to achieve precise high-frequency tuning and maximum energy transfer efficiency.
