How To Build A Balcony: A Comprehensive Structural Engineering Guide
Constructing a safe and code-compliant balcony requires precise load-path calculations, rigorous adherence to local building codes, and the use of structural-grade materials like pressure-treated lumber or composite decking. The process centers on secure ledger attachment to the building frame, meticulous flashing to prevent water intrusion, and the installation of code-mandated guardrails and bracing systems to ensure structural longevity and life safety.
Planning, Permitting, and Foundational Requirements
Before moving a single board, you must navigate the regulatory landscape. A balcony is a structural appendage that shifts load onto your home’s existing skeleton; failure to distribute this load correctly can lead to catastrophic structural collapse or long-term moisture decay.
- Essential Tools: Heavy-duty rotary hammer drill, circular saw, impact driver, levels (4-foot and torpedo), chalk line, framing square, and a pneumatic framing nailer.
- Material Selection: Use only pressure-treated (PT) ground-contact rated lumber for structural members (joists, beams, ledger). For decking, opt for kiln-dried premium PT boards, cedar, or high-density composite capped polymers.
- Mandatory Standards: Every build must adhere to the International Residential Code (IRC) Section R507 regarding exterior decks and balconies. This includes specific hardware requirements, such as hot-dipped galvanized bolts, joist hangers, and tension ties.
- Time and Budget Benchmarks: A standard 8-foot by 4-foot balcony typically requires 3 to 5 days of labor for a single experienced carpenter. Budget $1,500 to $4,000 depending on material quality and local permit fees.
Step-by-Step Structural Implementation
Step 1: Ledger Attachment and Flashing
The ledger board is the most critical structural connection point. It must be bolted directly to the house’s rim joist, not just the siding. Remove the siding to expose the structural sheathing and rim joist. Install a continuous layer of self-adhering flashing tape (bituminous or acrylic) over the rim joist before installing the ledger. Use 1/2-inch hot-dipped galvanized lag screws or carriage bolts in a staggered pattern, ensuring they do not penetrate the interior drywall.
Warning: Never attach a ledger to cantilevered floor systems, hollow masonry, or brick veneer. These materials cannot support the tension loads required for a safe balcony.
Step 2: Joist Layout and Hanger Installation
Once the ledger is level and secure, mark your joist centers at 16 inches on-center (or 12 inches if using heavy-duty composite decking). Use high-capacity face-mount joist hangers specifically rated for the lumber size. Ensure the bottom of the joists are flush with the bottom of the ledger.
Step 3: Support Beams and Vertical Posts
For a balcony, you will typically require a beam supported by posts or heavy-duty steel brackets. If using posts, install them on pre-poured concrete footings that extend below the frost line. Secure the beam to the top of the posts using post-to-beam connectors. Ensure all structural connections are reinforced with mechanical tension ties to prevent the balcony from pulling away from the house.
Step 4: Decking and Structural Bracing
Install your decking boards perpendicular to the joists. Use hidden fastener systems for composite boards or stainless steel deck screws for timber to prevent corrosion. Install diagonal bracing (knee braces) from the posts to the beams to eliminate lateral sway. If the balcony is more than 30 inches above grade, you are legally required to install a 36-inch high guardrail with balusters spaced no more than 4 inches apart.

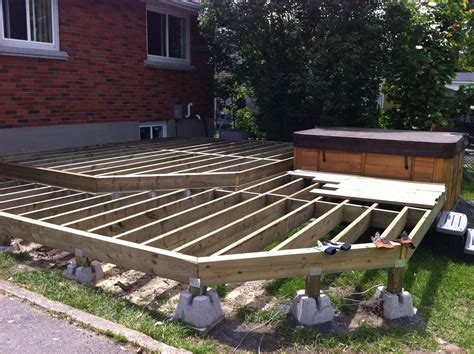

How To Build A Deck
Structural Parameter Comparison Table
| Feature | Wood (Pressure-Treated) | Composite Materials | Steel/Aluminum Frame |
|---|---|---|---|
| Maintenance | High (Annual Sealing) | Low (Periodic Cleaning) | Negligible |
| Lifespan | 15–20 Years | 25–30 Years | 50+ Years |
| Cost | Low | Moderate to High | Very High |
| Structural Rigidity | Moderate | Low (Requires tighter spacing) | Excellent |
Common Site Failures and Field Fixes
- Root Cause: Ledger board moisture rot caused by poor flashing.
- Actionable Fix: Remove the ledger, inspect the rim joist for structural integrity, replace compromised wood, and install Z-flashing that tucks behind the house siding and laps over the top of the ledger.
- Root Cause: Excessive bouncy or "springy" floor feel.
- Actionable Fix: The joist spans likely exceed the span table limits for the chosen lumber dimensions. Install mid-span blocking or additional joists between the existing ones to stiffen the frame.
- Root Cause: Lateral movement or swaying of the structure.
- Actionable Fix: Install 45-degree angle knee braces connecting the outer balcony beam to the support posts. Ensure these are anchored with structural-grade carriage bolts, not simple deck screws.
Frequently Asked Questions
Do I need a permit to build a small balcony?
Yes, almost every jurisdiction requires a permit for any elevated structure. Building without a permit can lead to mandatory demolition, fines, and significant hurdles when selling your home.
How deep must the footings be?
Footings must reach below the frost line in your specific region to prevent "heaving" during winter cycles. Check with your local building department for the specific frost depth measurement in your county.
Can I build a balcony on a brick wall?
Generally, no. Brick veneer is not structural and cannot support the tension forces required for a balcony ledger. You must either bypass the brick and attach to the structural frame or use a freestanding balcony design that does not rely on the house for support.
What is the maximum spacing for deck balusters?
According to international safety codes, balusters must be spaced so that a 4-inch sphere cannot pass through any opening. This prevents children from getting their heads trapped between railings.
Professional Consultation and Project Compliance
Ensure your design plans are reviewed by a structural engineer if the balcony exceeds standard residential loads or involves unconventional cantilever lengths. Contact your local municipal building department today to secure your permit and verify your specific regional structural code requirements.
