How To Bridge Two Channel Amp: The Ultimate Guide To Maximizing Power
Bridging a two-channel amplifier combines both audio channels into a single, high-output monophonic channel, nearly doubling or tripling the power delivered to a single load. Executing this wiring process safely requires strict adherence to minimum impedance thresholds and correct terminal polarity to prevent severe thermal overload or permanent equipment failure.
Pre-Operation & Equipment Checklist
Configuring an audio amplifier in bridge-tied load mode demands precision, correct hardware compatibility, and a clear understanding of your system's electrical limits. Bridging is typically performed to drive high-power passive subwoofers or demanding component speakers that require more wattage than a single standard channel can supply.
- Essential gear, tools, and materials:
- A true two-channel amplifier explicitly rated by the manufacturer as "bridgeable."
- Heavy-gauge speaker wire (minimum 12 to 14 AWG for high-current applications).
- A digital multimeter for verifying AC voltage and impedance loads.
- Wire strippers, terminal crimpers, and secure connectors (such as banana plugs or ring terminals).
- An RCA audio cable or line output converter.
- Mandatory prerequisite knowledge and standards:
- Verification that the target speaker load meets or exceeds the amplifier's minimum bridged impedance rating (usually 4 ohms minimum for car audio, 8 ohms for many home audio units).
- Understanding of differential phase cancellation and mono summing principles.
- Estimated budget and duration benchmarks:
- Budget: Zero additional cost if using existing wiring, or twenty to fifty dollars for high-grade interconnects and heavy-gauge wire.
- Duration: Thirty to forty-five minutes of careful bench or vehicular installation work.
Step-by-Step Bridging Procedure
Step 1: Power Down and Disconnect the System
Completely power off your audio system and disconnect the main power source. In mobile audio applications, disconnect the negative terminal of the vehicle battery. In home audio setups, unplug the receiver or amplifier power cord from the AC wall outlet. Safety during terminal manipulation prevents accidental short circuits that can instantly fry internal MOSFET output transistors.
Warning: Never disconnect or connect speaker wires while the amplifier is powered on, as the sudden voltage spike can cause catastrophic amplifier failure or speaker voice coil burnout.
Step 2: Identify the Bridged Terminal Configuration
Examine the speaker output terminal strip on the rear of your two-channel amplifier. Look for a schematic diagram printed on the chassis or consult your owner's manual to locate the dedicated bridging markers, which are frequently labeled as Channel 1 Positive and Channel 2 Negative.
Pro-Tip: Do not assume all amplifiers use the same two terminals; while the standard convention is left positive and right negative, some units require an internal switch or external jumper.
Step 3: Connect the Speaker Wire to the Amplifier
Strip approximately one-half inch of insulation from the ends of your speaker wire. Insert the bare copper strands or crimped connector of the positive wire lead securely into the designated positive terminal of Channel 1. Insert the negative wire lead into the designated negative terminal of Channel 2. Ensure no stray strands are touching adjacent terminals or the metal chassis.
Step 4: Connect the Speaker Load at the Transducer End
Route the other end of the speaker wire to your speaker or subwoofer terminal cup. Connect the wire originating from the amplifier's Channel 1 positive terminal to the positive terminal of the speaker. Connect the wire originating from the amplifier's Channel 2 negative terminal to the negative terminal of the speaker. Double-check all polarities to ensure proper phase alignment.
Step 5: Configure Input Signals and Crossover Settings
Connect your source audio signal to the amplifier inputs. If your amplifier features an internal mono-sum switch, engage it so both left and right input signals are blended into a single mono output. Set your low-pass or high-pass crossover filters appropriately for the connected driver, and dial the gain structure down to its minimum position before initial power-up.

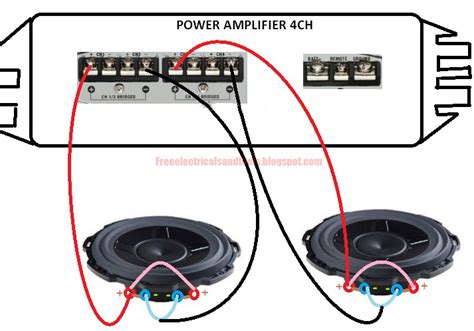

Two Channel Amp Wiring Diagram - Wiring Diagram
Technical Comparison of Standard vs. Bridged Amplifier Modes
| Operational Parameter | Standard Stereo Mode (Two Channels) | Bridged Mono Mode (BTL) |
|---|---|---|
| Channel Output Count | Two independent channels (Left and Right) | One combined high-power mono channel |
| Minimum Impedance Load | Typically 2 ohms per channel | Typically 4 ohms bridged (varies by amp) |
| Voltage Swing | Single-ended rail voltage swing | Doubled rail voltage swing across load |
| Power Output Efficiency | Lower wattage per discrete channel | Higher wattage delivery to a single driver |
| Primary Application | Multi-speaker stereo staging (tweeters, mids) | High-demand single drivers (subwoofers) |
Common System Failures and Field Fixes
Even with careful installation, bridging errors or hardware mismatches can trigger protection modes or cause permanent component damage.
- Root Cause: Connecting a speaker load with an impedance lower than the amplifier's rated bridge minimum.
- Actionable Fix: Measure the DC resistance of your speaker voice coils using a multimeter and ensure the resulting impedance matches or exceeds the amplifier manual's bridge specification, typically 4 ohms.
- Root Cause: Reversing the polarity of one of the output channels during the wiring process.
- Actionable Fix: Power down the system, trace every wire from the amp terminals to the speaker, and verify that Channel 1 positive and Channel 2 negative are the only active connection points.
- Root Cause: Overdriving the input gain stage, leading to clipped square waves and thermal shutdown.
- Actionable Fix: Reset the amplifier gain using an oscilloscope or digital multimeter to match your head unit's maximum undistorted pre-out voltage.
- Root Cause: Speaker wire strands making contact with the amplifier chassis ground.
- Actionable Fix: Trim back loose wire strands, use insulated ferrules or banana plugs, and inspect the terminal block for clean connections.
Frequently Asked Questions
What does it mean to bridge a two-channel amplifier?
Bridging combines the power of two separate amplifier channels into a single audio output channel. This technique uses the positive terminal of one channel and the negative terminal of the other to double the voltage swing delivered to a single speaker.
Can I bridge any two-channel amplifier?
No. An amplifier must be explicitly designed and rated by the manufacturer as "bridgeable." Attempting to bridge a non-bridgeable amplifier will cause an immediate short circuit and trigger internal protection circuitry or destroy the output stage.
Why does bridging an amplifier require a higher impedance speaker?
When an amplifier is bridged, each individual channel effectively sees half of the actual speaker impedance. A 2-ohm speaker connected to a bridged amp presents a 1-ohm load to each channel, which exceeds current limits and causes thermal overload.
Will bridging my amplifier reduce sound quality?
When configured correctly with appropriate impedance loads and clean input signals, bridging does not noticeably degrade sound quality. However, it does operate the amplifier closer to its thermal and electrical limits, making proper ventilation essential.
Do I need special cables to bridge an amplifier?
You do not need specialized cables, but you should use high-quality, heavy-gauge speaker wire to handle the increased current flow. Additionally, depending on the amplifier layout, you may need an RCA "Y-splitter" to feed the input signal into both channels simultaneously.
Ensure your mobile or home audio system operates at peak efficiency by matching your amplifier specifications with the correct speaker impedance loads and professional-grade installation accessories.
