How To Braze Cast Iron: The Ultimate Step-by-Step Metallurgical Guide
Brazing cast iron successfully requires managing extreme thermal shock, removing embedded graphite flakes through meticulous cleaning, and utilizing high-nickel filler metals like AWS A5.15 ENi-CI or specialized brass alloys. By understanding the metallurgy of gray and ductile iron, machinists and fabricators can achieve high-strength joints without reaching the complete melting point of the base metal.
Metallurgical Preparation & Equipment Checklist for Cast Iron Brazing
Cast iron is notoriously difficult to join due to its high carbon content (typically 2 to 4 percent), predominantly in the form of free graphite flakes. These flakes prevent standard welding rods from fusing properly and create a porous, brittle bond unless the metal is thoroughly prepared. Before initiating the heat cycle, fabricators must assemble specialized equipment capable of delivering high thermal input while maintaining precise temperature control.
- Essential Gear and Consumables: Oxy-acetylene torch rig with a multi-flame or large single-flame rosebud tip, heavy-duty stainless steel wire brushes, chemical degreasers (acetone or specialized solvent cleaners), high-flux specifically formulated for cast iron brazing (borax-based active fluxes), and high-nickel brazing rods or low-fuming bronze (RCuZn-C) filler metals.
- Safety and Environmental Requirements: Auto-darkening welding helmet or shade 5-8 brazing goggles, heavy leather welding gloves, flame-retardant jacket, and a dedicated local exhaust ventilation system to capture hazardous zinc or nickel oxide fumes.
- Prerequisite Knowledge and Benchmarks: Understanding thermal expansion coefficients, mastering oxy-acetylene neutral-to-slightly-reducing flame adjustments, and budgeting roughly 2 to 4 hours for preparation, slow preheating, controlled application, and an extended cooling cycle to prevent catastrophic cracking.
Step-by-Step Cast Iron Brazing Execution Protocol
Step 1: Surface Preparation and Graphite Removal
Begin by thoroughly cleaning the cast iron surface to remove surface oils, grease, and moisture using an approved solvent. Because cast iron is porous, it absorbs contaminants deeply; heating contaminated iron will push trapped oils and gases to the surface, ruining the braze joint. Grind out any cracks completely using a carbide burr to create a U-groove with a 60-to-90-degree included angle, making certain to extend past the visible ends of the crack to sound metal. Use a clean stainless steel wire brush exclusively on the cast iron to scrub away surface oxides and smear graphite flakes away from the bonding zone.
Warning: Never use a wire brush on cast iron that has previously touched carbon steel or aluminum, as cross-contamination will introduce foreign elements that inhibit capillary action and flux adhesion.
Step 2: Precision Preheating and Thermal Management
Cast iron has very low ductility and cannot withstand rapid, localized thermal expansion without fracturing. Place the entire cast iron component inside a furnace or use an oxy-acetylene torch to heat the work piece slowly and uniformly. Bring the temperature of the entire casting up to between 500 degrees Fahrenheit and 1100 degrees Fahrenheit, depending on the mass and geometry of the part.
Pro-Tip: Maintain the preheat temperature consistently throughout the entire brazing operation by utilizing a secondary rosebud torch or an insulated heat blanket if working on large engine blocks or industrial machinery parts.
Step 3: Flux Application and Temperature Verification

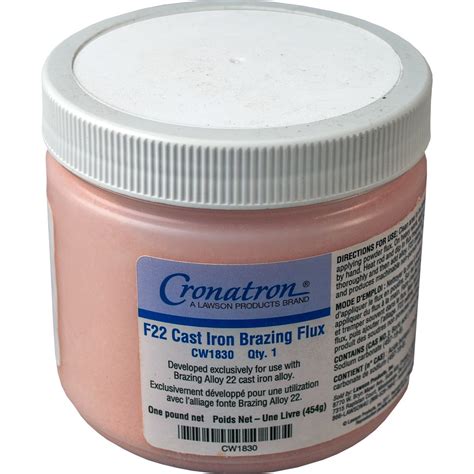

Apply the active brazing flux directly to the prepared joint area while the metal is at preheat temperature. The flux will initially bubble, dry out, and then melt into a clear, glass-like liquid coating that protects the base metal from oxidation and dissolves remaining surface impurities. Monitor the base metal temperature closely; when the flux flows smoothly and covers the joint like liquid glass, the cast iron has reached the correct wetting temperature, typically between 1300 degrees Fahrenheit and 1650 degrees Fahrenheit depending on the filler alloy.
Step 4: Applying the Filler Metal and Capillary Action
Switch to a neutral oxy-acetylene flame and heat the thickest sections of the casting first, drawing heat toward the joint. Touch the tip of the brazing rod (such as a high-strength nickel-silver or low-fuming bronze alloy) directly to the heated joint, allowing the rod to melt from the heat of the base metal rather than the direct torch flame. Allow the molten filler metal to flow smoothly into the prepared U-groove via capillary action, maintaining a steady forward motion without overheating the molten pool.
Step 5: Controlled Post-Brazing Cool Down
Once the joint is fully filled and a uniform bead is established, remove the heat source immediately. Slow cooling is the single most critical factor in preventing thermal shock cracks in cast iron. Cover the brazed component instantly with an insulating blanket, dry vermiculite, slaked lime, or a specialized ceramic cooling blanket to ensure the temperature drops no faster than 50 degrees Fahrenheit per hour until it reaches room temperature.
How To Weld Cast Iron With A Mig Welder | Explora Madeira
Technical Parameters and Filler Metal Selection Matrix
| Filler Metal Classification | Typical Application | Operating Temperature Range | Tensile Strength (PSI) | Machinability |
|---|---|---|---|---|
| AWS A5.15 ENi-CI | High-strength gray and ductile iron repairs | 1350°F – 1500°F (732°C – 815°C) | 50,000 – 60,000 | Excellent (Soft deposit) |
| RCuZn-C (Low-Fuming Bronze) | General structural cast iron joining | 1600°F – 1650°F (871°C – 898°C) | 55,000 – 65,000 | Good (Moderate hardness) |
| RCuZn-Mn (Nickel Bronze) | High-stress wear-resistant cast iron parts | 1650°F – 1700°F (898°C – 927°C) | 70,000 – 80,000 | Fair (High hardness) |
Common Cast Iron Brazing Failures and Field Fixes
- Root Cause: The filler metal balls up and refuses to wet or flow across the cast iron surface.
- Actionable Fix: The base metal is insufficiently cleaned or lacks active flux. Stop heating, allow the part to cool, grind away the failed attempt, re-clean down to virgin metal using a carbide burr, apply fresh active flux, and ensure proper preheat temperatures are reached before re-applying the rod.
- Root Cause: Cracks appear adjacent to the brazed joint immediately after cooling down.
- Actionable Fix: Thermal shock caused by localized overheating or rapid cooling. Implement a comprehensive preheat protocol across the entire casting and bury the finished part in an insulating medium such as dry sand or thermal blankets for at least 12 to 24 hours.
- Root Cause: Porosity and gas pockets trapped inside the brazed joint.
- Actionable Fix: Contamination from residual engine oil, coolant, or cleaning solvents embedded deep within the cast iron pores. Bake the casting in an oven at 600 degrees Fahrenheit for one hour to bake out volatile compounds prior to mechanical surface prep.
Frequently Asked Questions
Can you braze cast iron without preheating the metal?
No, attempting to braze cast iron without a comprehensive preheat will cause severe thermal shock. Because cast iron lacks ductility, the extreme temperature gradient between the hot brazing zone and the cold surrounding metal will immediately induce cracking or shatter the casting.
What is the difference between brazing and welding cast iron?
Brazing melts only the filler metal while keeping the cast iron base metal below its melting point, typically utilizing brass, bronze, or nickel alloys. Welding involves melting the base cast iron and filler material together, which often creates hard, brittle martensite structures that require complex preheating and post-weld heat treatment.
Is it possible to machine a brazed cast iron joint?
Yes, provided you select the correct filler metal. Low-fuming bronze and high-nickel alloys like ENi-CI produce soft, ductile deposits that can be easily drilled, milled, or turned on a lathe using carbide tooling without damaging the cutting edges.
Why is flux mandatory when brazing cast iron?
Cast iron contains high amounts of carbon and readily forms tenacious oxides when heated. Flux chemically isolates the metal from atmospheric oxygen, dissolves surface oxides, and reduces surface tension to allow the molten filler metal to wet the parent material effectively.
Master advanced metal restoration techniques by sourcing professional-grade alloys and adhering to strict thermal management protocols for every cast iron repair project.
