How To Install Professional-Grade Board And Batten Siding
Board and batten siding involves mounting wide vertical boards followed by thinner batten strips over the joints to create a high-contrast, weather-resistant facade that increases structural depth. Successful installation requires precise vertical alignment, moisture barrier integration, and deliberate spacing to manage thermal expansion and contraction across the wall surface.
Pre-Operation Requirements and Installation Checklist
Before beginning, confirm the integrity of the underlying substrate. If installing over existing siding, ensure the surface is flat and free of rot. If installing over open studs, exterior-grade sheathing must be applied first to provide a solid nailing surface and proper shear strength.
- Essential Tools: Miter saw or circular saw, pneumatic finish nailer with 2-inch to 2.5-inch galvanized nails, laser level or high-precision spirit level, chalk line, cordless drill, and a caulk gun.
- Required Materials: Pressure-treated or cedar 1x10 or 1x12 boards for the base, 1x2 or 1x3 strips for the battens, high-quality vapor barrier or house wrap, exterior-grade acrylic caulk, and rot-resistant wood primer.
- Performance Benchmarks: Allocate two to three days for a standard residential wall. Expect an average material cost of 4 to 7 dollars per square foot depending on the wood species chosen.
- Compliance Standards: Verify local building codes regarding required water-resistive barriers (WRB) and flashing requirements around windows and doors to prevent long-term water infiltration.
The Technical Execution Workflow
Step 1: Surface Preparation and Moisture Control
Clear the wall of all protruding obstacles, including light fixtures, house numbers, and utility mounts. Install a high-performance building wrap over the sheathing, ensuring proper shingling technique—overlap horizontal seams by at least 6 inches and vertical seams by 12 inches. Tape all seams with compatible manufacturer-approved flashing tape to create an airtight seal.
Step 2: Establishing the Vertical Baseline
Using a laser level, establish a perfectly plumb line at the center of the wall. Because houses are rarely perfectly square, do not rely on corners or existing window frames. Mark your layout across the entire wall, calculating the spacing between the boards. Standard spacing usually falls between 10 and 16 inches on center.
Pro-Tip: If your final spacing calculation leaves you with a tiny, awkward strip at one corner, adjust the board spacing by an inch across the entire wall to distribute the difference and ensure a symmetrical, professional aesthetic.
Step 3: Installing the Wide Base Boards
Cut your base boards to height, keeping them 1 inch off the foundation or bottom trim to prevent capillary wicking. Secure the boards using two nails at the edges, spaced 16 inches apart vertically. Do not drive nails through the center of wide boards, as this will restrict natural wood movement and lead to splitting.

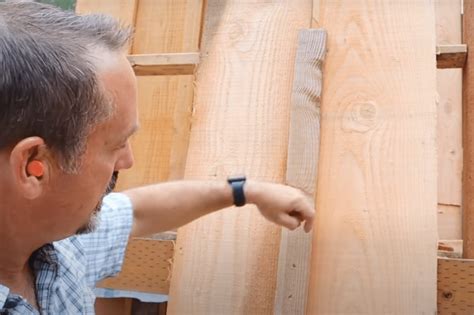

Step 4: Applying the Batten Strips
Once the base boards are secured, install the battens directly over the vertical seams where the base boards meet. Use a level to ensure every batten is perfectly vertical. Apply a thin bead of exterior-grade adhesive or high-quality caulk to the back of each batten before nailing to enhance structural rigidity and seal the joint against moisture.
Warning: Never nail through both the batten and the edge of the base board simultaneously with a single nail. If the wood expands, the nail will act as a fulcrum and cause the wood to buckle or crack. Nail the batten into the structural framing through the gap between the base boards.
Step 5: Sealing and Finishing
Apply a bead of paintable, elastomeric exterior caulk along the sides of the battens where they meet the boards. This is critical for preventing water from entering the joint. Once dry, prime all surfaces, including the cut ends of the boards, with a high-grade oil-based or exterior acrylic primer. Finish with two coats of 100 percent acrylic exterior house paint.
How to Install Board and Batten Siding
Material Selection and Performance Specifications
| Material Type | Pros | Cons | Ideal Use Case |
|---|---|---|---|
| Cedar (Select Grade) | Naturally rot/insect resistant | High cost; requires sealing | High-end custom homes |
| Pressure-Treated Pine | Economical; widely available | Prone to warping; heavy | Utility sheds or budgets |
| Fiber Cement | Fire resistant; dimensionally stable | Extremely heavy; requires specialty blades | High-humidity/Fire-prone zones |
| PVC/Composite | Zero maintenance; no rot | High thermal expansion rate | Coastal environments |
Common Site Failures and Remediation
- Root Cause: Boards splitting after six months of seasonal shifts.
- Actionable Fix: Ensure you are using nails with a small diameter (finish nails) and that you are not "double-nailing" through multiple layers of wood. Use a slightly smaller nail gauge to allow for minor lateral movement.
- Root Cause: Water infiltration behind the battens causing rot at the base.
- Actionable Fix: Install Z-flashing at the horizontal joints and ensure the bottom edges of all boards are back-primed or sealed with a heavy-bodied exterior paint to prevent moisture absorption.
- Root Cause: Visible bowing or curling of wide boards.
- Actionable Fix: Ensure boards are secured with adequate fasteners—usually 16 inches on-center—and that the material was allowed to acclimate to the local exterior humidity levels for at least 48 hours prior to installation.
Frequently Asked Questions
Do I need to remove old siding before installing board and batten?
Not necessarily. You can install board and batten over existing hard-surface siding if it is flat and in good condition. However, you must install furring strips to ensure a flat substrate and provide a proper nailing surface for your new boards.
What is the ideal width for battens?
The most common industry standard is using 1x2 or 1x3 lumber for battens. These widths provide the best aesthetic proportion against 1x10 or 1x12 base boards, creating a shadow line that is visually balanced and architecturally correct.
Can I use cedar for the entire project?
Yes, cedar is an excellent choice due to its natural resistance to decay and insects. However, ensure you use stainless steel or hot-dipped galvanized fasteners to prevent the tannic acid in the cedar from reacting with the metal and causing black staining.
How do I handle corners during installation?
At outside corners, the most professional finish is to use a dedicated corner board (usually a 1x4 or 1x6) and butt the siding boards into it. This creates a clean, uniform look that is easier to seal and flash than trying to miter the large vertical boards.
Master Your Exterior Renovation
Executing a professional board and batten installation significantly enhances the curb appeal and long-term durability of your home exterior. Invest in high-quality materials and precise layout planning today to ensure your project stands the test of time and weather.
