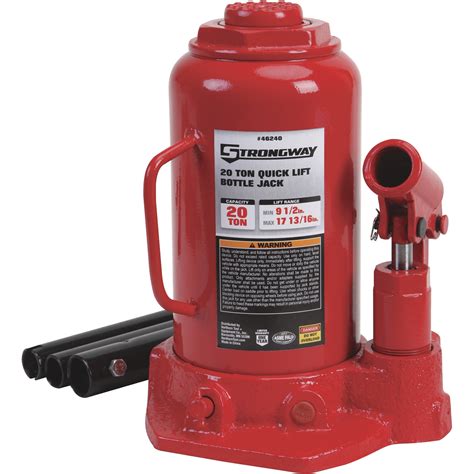

How To Bleed A Bottle Jack: A Step-by-Step Hydraulic Maintenance Guide

Air bubbles trapped within the hydraulic fluid circuit of a bottle jack drastically reduce its lifting capacity and cause spongy, unreliable operation. Bleeding the system requires locating the release and fill valves, purging trapped air by cycling the piston while under zero load, and topping off the reservoir with ISO 32 or ISO 46 hydraulic jack oil.

Pre-Operation & Equipment Checklist

Maintaining hydraulic machinery requires precision, the correct chemical fluids, and a clean working environment to prevent particulate contamination inside the close-tolerance cylinder walls. Even microscopic bits of dirt can score the ram or ruin internal O-rings, leading to pressure bypass.

• Essential Gear, Tools, and Materials:


  • Flathead screwdriver or appropriately sized box wrench (for the release valve and filler plug)
  • ISO 32 or ISO 46 anti-wear hydraulic jack oil (never use brake fluid, motor oil, or transmission fluid)
  • Clean shop rags or lint-free microfiber towels
  • Safety glasses and mechanic gloves
  • A stable workbench or level concrete floor surface
• Mandatory Prerequisite Knowledge and Standards:


  • Familiarity with Pascal's Law regarding incompressible fluids under pressure.
  • Understanding that a bottle jack must always remain upright unless specifically being drained or filled to prevent air from migrating deeper into the internal valving.
• Estimated Time and Cost Benchmarks:


  • Time: 15 to 30 minutes
  • Budget: Under $15 for a fresh quart of hydraulic jack oil if a top-off is required.

Step-by-Step Hydraulic Bleeding Procedure

Step 1: Position the Jack on a Level Surface

Place the bottle jack upright on a completely flat, stable surface such as a concrete workshop floor or a heavy workbench. Wipe down the exterior housing, especially around the rubber filler plug and the release valve, to prevent any grease or loose grit from falling into the internal hydraulic chambers once opened.

Warning: Never attempt to bleed a bottle jack while it is supporting the weight of a vehicle or any heavy load. The system must be completely unloaded to safely purge internal pressure and air pockets.

Step 2: Open the Release Valve

Locate the release valve stem or needle, usually situated near the base of the pump handle socket. Using your screwdriver or a wrench, turn the release valve counter-clockwise by approximately one full turn, but do not unscrew it entirely. This action opens the bypass channel connecting the cylinder pressure chamber to the fluid reservoir, allowing trapped air to escape freely.

Step 3: Lower and Pump the Ram

Pump the operating handle rapidly and continuously through 6 to 8 full strokes to cycle any trapped air out of the primary pressure chamber and up into the fluid reservoir. Because the release valve is open, the ram will not rise significantly, but this mechanical action acts as a purge cycle, forcing air bubbles to travel upward through the fluid column.

Step 4: Remove the Filler Plug and Check Fluid Levels

Locate the rubber filler plug or threaded metal screw on the side or back of the jack body near the midpoint of the reservoir. Pry up the rubber plug gently with a flathead screwdriver or unthread the metal bolt. Inspect the internal fluid level, which should sit precisely at the bottom of the filler hole threaded lip when the ram is fully collapsed.

Pro-Tip: If the fluid looks milky, frothy, or dark brown, it indicates water contamination or severe aeration. Drain the entire reservoir completely and refill it with fresh hydraulic fluid before finishing the bleeding process.

Step 5: Top Off and Finalize the System

If the fluid level is low, slowly pour fresh ISO 32 or ISO 46 hydraulic jack oil into the fill port until it reaches the correct threshold. Reinstall the filler plug loosely for a moment, close the release valve completely by turning it clockwise, and pump the handle until the ram extends to its maximum height. Open the release valve once more to let the ram drop down quickly under its own weight, forcing out any remaining stubborn micro-bubbles through the reservoir return circuit. Check the fluid level one last time, secure the filler plug tightly, and wipe away any excess oil.

Hydraulic Fluid Specifications and Performance Parameters

Common Hydraulic Failures and Field Fixes

Even after proper bleeding, older or heavily used hydraulic jacks can display operational anomalies. Diagnosing the root cause saves time and prevents unnecessary component replacement.

• Root Cause: Jack lifts halfway and stops or feels bouncy under load.


  • Actionable Fix: Air is still trapped in the lower suction valve chamber. Repeat the bleeding steps with the jack tipped slightly forward toward the filler plug to encourage stubborn air bubbles to migrate toward the reservoir port.
• Root Cause: Ram creeps downward slowly under a sustained load.


  • Actionable Fix: The internal release valve seat is fouled with debris, or the ball check valve is failing to seal. Open and close the release valve rapidly several times while pumping to flush out microscopic contaminants trapped against the seating surface.
• Root Cause: Oil is leaking outward from around the base of the main lifting ram.


  • Actionable Fix: The wiper seal or primary high-pressure O-ring has degraded. Disassemble the upper housing to replace the rubber seal kit, then bleed the system thoroughly upon reassembly.
• Root Cause: The handle kicks back upward violently while pumping.


  • Actionable Fix: The pressure release ball check valve is stuck or blocked by debris, preventing fluid from entering the high-pressure chamber properly. Clean the internal ball check assembly and replace the contaminated fluid.

Frequently Asked Questions

Can I use regular motor oil if I do not have hydraulic jack oil?

While ISO 32 or ISO 46 hydraulic oil is specifically formulated with anti-wear and anti-foaming additives for precision machinery, multi-grade motor oil like SAE 10W-30 can be used in an emergency. However, motor oil has a higher viscosity variance across temperatures and can cause sluggish valve response over time. Never use brake fluid, as it rapidly destroys internal rubber seals and strips paint.

Why does my bottle jack rise when I pump it, but immediately sink when I let go?

This issue typically points to a loose or contaminated release valve. If the release valve is not screwed completely shut, hydraulic fluid bypasses the piston chamber and flows right back into the reservoir. Tighten the valve fully, and if the problem persists, clean the internal needle seat.

How often should I change the hydraulic fluid in my bottle jack?

For jacks used in professional shops or exposed to extreme temperature fluctuations, changing the hydraulic fluid every 1 to 2 years prevents moisture accumulation and internal oxidation. For residential or occasional DIY garage use, inspecting the fluid level annually and replacing the fluid every 3 to 5 years is sufficient.

Is it normal for a small amount of oil to escape out of the fill hole?

A small drop of oil might escape if the rubber filler plug is old, cracked, or improperly seated when the jack is tipped horizontally during storage. Always store your bottle jack in a completely upright position to prevent reservoir leakage and air re-entry into the hydraulic chambers.

What causes a bottle jack to stop lifting at maximum extension?

This symptom usually indicates that the fluid reservoir is underfilled. When the ram reaches full extension, it requires a higher volume of fluid; if the reservoir runs dry before the stroke completes, the pump draws air instead of oil, causing the ram to stall. Top off the reservoir according to the manufacturer specifications.
