How To Bend Lexan: A Professional Guide To Heat-Forming Polycarbonate
Bending Lexan, a brand-name polycarbonate, requires precise application of localized heat between 300 and 325 degrees Fahrenheit to reach its glass transition state without causing material degradation or bubbling. By maintaining a uniform heating strip or heat gun distance, you can achieve clean, permanent bends in sheet material ranging from 0.060 to 0.250 inches thick with professional precision.
Preparation Requirements and Essential Tooling
Successful Lexan manipulation relies on managing the material’s sensitivity to heat and moisture. Polycarbonate is hygroscopic, meaning it absorbs atmospheric moisture that can turn into steam during the heating process, resulting in internal bubbling or surface clouding. Before beginning, ensure your workspace is well-ventilated and that you have the appropriate safety gear to handle high-temperature materials.
- Essential Safety Equipment: Heat-resistant leather gloves, safety glasses or a face shield, and a fire extinguisher rated for chemical or plastic fires.

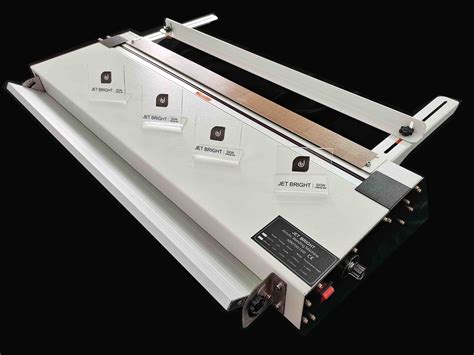

- Heating Tools: A strip heater (the industry standard for clean, straight bends) or a high-wattage heat gun with a temperature-controlled nozzle.
- Measuring and Marking: A grease pencil or wax marker (avoid permanent ink markers as they can weaken the material), a metal square, and a straight-edge guide.
- Supporting Hardware: Wood blocks or metal clamps to hold the Lexan in position while it cools, and a flat, non-combustible work surface.
- Material Check: Verify that the Lexan sheet is clean and free of protective film, as the plastic film will melt onto the sheet and cause permanent marring if heated.
Controlled Bending Procedures for Polycarbonate Sheets
Step 1: Material Pre-Conditioning and Drying
If your Lexan sheet has been stored in a humid environment, it is critical to dry the material in a convection oven at 250 degrees Fahrenheit for approximately one hour per eighth-inch of thickness. Skipping this step often leads to "outgassing" bubbles during the bending phase. Once dried, ensure the sheet is cool before applying the heat source.
Step 2: Marking the Bend Line
Use your grease pencil and square to draw the exact line where you want the bend to occur. Because Lexan is a thermoplastic, the material will slightly shrink and pull during the heating process. If you require high dimensional accuracy, create a test bend on a scrap piece of the same thickness first to calculate the specific "bend allowance" required for your material’s gauge.
Step 3: Application of Uniform Heat
Position your heating element parallel to your marked line. If using a strip heater, set the sheet on the heating element and allow the heat to penetrate the plastic. If using a heat gun, move the nozzle back and forth along the line in a steady, sweeping motion.
Warning: Never concentrate the heat on a single spot, as this will lead to localized melting, discoloration, or burning. Keep the heat source at least 2 to 3 inches away from the material to ensure the heat penetrates through the cross-section of the sheet rather than just the surface.
Step 4: Testing for Flexibility
Gently attempt to flex the material every 30 seconds. Do not force it. You are looking for the point where the polycarbonate loses its rigidity and becomes pliable like thick leather. Once the material feels consistently soft along the entire length of the bend line, it is ready to be formed.
Step 5: Forming and Cooling the Bend
Move the sheet to a secondary straight edge (such as the corner of a table or a metal jig) to serve as your bending guide. Align the heated line with the edge of the jig and carefully bend the material to your desired angle. Hold the Lexan firmly in the desired position for 2 to 5 minutes.
Pro-Tip: Use a fan to circulate air around the bend once it is set. This accelerates the recrystallization process and ensures the material retains its new shape without "springing back."
Workshop Wednesday: How To Heat-Bend Acrylic Enclosures - Make:
Technical Thresholds for Polycarbonate Heat-Forming
| Metric | Specification for Polycarbonate | Impact of Variation |
|---|---|---|
| Heating Temp | 300°F – 325°F | Under 300°F causes stress cracking; Over 350°F causes bubbling |
| Typical Dwell Time | 3 – 8 Minutes | Depends on sheet thickness; thicker sheets require longer exposure |
| Spring-back Ratio | 3% – 5% | Overbend by this percentage to reach exact target angle |
| Cooling Requirement | 180°F or lower | Handling while too hot will leave permanent fingerprint impressions |
Troubleshooting Common Field Failures
- Bubbling along the bend line: This is almost always caused by moisture trapped within the polycarbonate. Actionable Fix: Dry the sheet in a convection oven at 250°F before the next attempt to ensure all moisture is removed.
- Surface clouding or haze: This occurs when the plastic is overheated or the protective film was left on during the process. Actionable Fix: Ensure the protective film is fully removed and maintain a consistent distance between the heat source and the material surface to prevent surface scorching.
- Brittle, fractured bends: This indicates that the material was not heated through the entire thickness, causing the outer surface to stretch and crack while the interior remained solid. Actionable Fix: Increase the dwell time and ensure the heat source is moving slowly enough to allow heat saturation through the entire cross-section.
Frequently Asked Questions
Can I bend Lexan without a heat source?
Thin gauges of polycarbonate (0.030 inches or less) can be cold-formed or bent using a manual brake press. However, for thicker sheets, heat is mandatory to avoid permanent stress fractures and structural failure at the hinge point.
Does Lexan crack like acrylic when bent?
Lexan is significantly more impact-resistant than acrylic and is much less prone to shattering. While acrylic will snap under extreme pressure, Lexan will typically stretch or deform, making it the safer choice for components subjected to vibration or impact.
How do I prevent the material from springing back?
To combat spring-back, you should over-bend the material by approximately 5 to 10 degrees beyond your target angle. Hold the material firmly in the over-bent position until it has fully cooled below 180 degrees Fahrenheit.
Is there a specific type of heat gun I should use?
A standard hardware-store heat gun with an adjustable temperature dial is ideal. Avoid using a hair dryer, as they lack the necessary BTU output to reach the 300°F threshold required for effective polycarbonate forming.
Can I paint Lexan after bending?
Yes, but you must use paints specifically formulated for plastics or polycarbonate. Standard spray paints will often flake off or cause the material to develop "crazing" cracks due to chemical incompatibility with the base polymer.
