How To Bend Conduit Without A Bender: Pro-Grade Field Techniques And Precision Workflows
Achieving a professional-grade conduit bend without a mechanical or hand bender requires precise heat application for PVC or strategic mechanical leverage for EMT. Success hinges on maintaining the structural integrity of the raceway wall while adhering to the National Electrical Code requirements regarding radius and interior diameter deformation.
Essential Preparation and Field Requirements
Bending electrical conduit—specifically EMT (Electrical Metallic Tubing) or PVC—without the aid of a dedicated conduit bender is a specialized field operation usually reserved for emergency repairs or short-run modifications. Bending EMT manually often results in kinking or ovaling, which violates NEC Article 358.24 regarding mechanical integrity. If you are working with PVC, the process relies on thermal plasticity.
- Essential Gear: A heat gun with adjustable temperature settings (do not use an open flame), a length of heavy-duty rope or a spring-type conduit bender internal mandrel, a protractor or angle finder, and a stable workbench equipped with a heavy-duty vise.
- Material Standards: Ensure you are using conduit rated for the specific application. For PVC, you must work within the Schedule 40 or 80 specifications. For EMT, realize that manual bending significantly increases the risk of damaging the zinc coating, which invites future corrosion.
- Safety Protocol: Heat-resistant gloves are mandatory. PVC emits hazardous vapors when overheated; ensure you are in a well-ventilated area. Never force metal conduit beyond its yield strength without internal support, as it will collapse.
- Project Benchmarks: Manual bending operations generally take two to three times longer than using a dedicated tool. Expect a setup and execution time of approximately 45 to 60 minutes for a standard 90-degree bend.
Execution Workflow for Conduit Manipulation
Step 1: Determining the Bend Radius
Before applying force or heat, calculate the minimum bend radius. The National Electrical Code mandates that bends must be made so that the conduit is not injured and the internal diameter is not effectively reduced. For smaller trade sizes, the radius to the center of the conduit must be at least six times the outer diameter for rigid metal conduit, though this varies by material. Use a marker to define the precise start and end points of your bend on the conduit surface.
Step 2: Heat Induction for PVC Conduit
For PVC, the goal is to reach the glass transition temperature where the plastic becomes pliable without scorching. Distribute heat evenly around the circumference of the conduit, moving the heat gun constantly. Do not focus on a single spot, as this causes bubbling or structural thinness. Once the material feels like soft rubber, it is ready for shaping.
Warning: Avoid overheating the PVC until it turns brown or black. This indicates degradation of the plasticizer and a loss of dielectric strength, which renders the conduit non-compliant with code.
Step 3: Shaping and Setting the Bend
Insert an internal spring or a flexible mandrel into the conduit before bending to provide internal wall support. If shaping PVC, place the heated section over a circular form, such as a large diameter pipe or a pre-carved wooden jig, to maintain a uniform radius. Hold the conduit in the desired position until it cools naturally or with a light mist of water. For EMT, you are limited to very slight offsets or "dog-legs" using a bench vise and leverage, as bending EMT without a shoe is prone to kinking.
Step 4: Verification and Inspection
Once the conduit has set, inspect the exterior for wrinkles or structural creases. Use a go/no-go gauge or a standard fish tape to ensure that the interior diameter has not been restricted. If the wire cannot pull through without significant friction, the bend must be discarded and replaced, as insulation damage on conductors is a primary cause of future short circuits.

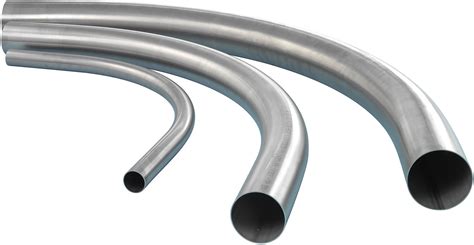

How to Bend Pipe Without a Pipe Bender : 3 Steps (with Pictures ...
Technical Specifications and Material Thresholds
The following table outlines the material-specific behaviors and technical limitations when attempting to bend conduit manually without dedicated leverage tools or calibrated shoes.
| Conduit Material | Primary Limitation | Ideal Heating Method | Success Rate (Field) |
|---|---|---|---|
| Schedule 40 PVC | Wall collapse/Ovaling | Electric Heat Gun | Moderate |
| EMT (Steel) | Zinc coating cracking/Kinking | Leverage/Vise | Low |
| Rigid Metal (RMC) | Extreme wall thickness | Hydraulic Pressure | Negligible |
| ENT (Smurf Tube) | Material stretching | Hand manipulation | High |
Common Field Failures and Remediation
- Kinking or Ovaling: The most common failure when bending metal conduit without a shoe. This happens when the outer wall of the conduit is stretched beyond its ductile limit. Actionable Fix: Use a internal spring mandrel to provide the necessary counter-pressure against the wall during the bending process.
- Thermal Scorching: Occurs during PVC manipulation due to improper heat gun distance or dwell time. Actionable Fix: Increase the distance between the heat source and the conduit, and maintain constant motion to diffuse the thermal energy across a wider surface area.
- Inconsistent Bend Angles: Often caused by "spring-back," where the material returns slightly to its original shape after the force is removed. Actionable Fix: Over-bend the conduit by approximately 3 to 5 degrees to compensate for the material's elastic memory.
- Surface Cracking: Usually seen in galvanized steel conduit where the metal is forced too rapidly. Actionable Fix: Apply heat to the steel to increase ductility, though be aware this will destroy the corrosion-resistant galvanization, requiring a cold-galvanizing spray application post-bend.
Frequently Asked Questions
Can you bend 1/2 inch EMT conduit over your knee?
While possible, it is highly discouraged as it will almost certainly result in a severe kink that restricts the internal diameter. This violates the National Electrical Code and will make pulling wire difficult or impossible, leading to insulation abrasion.
How do I stop PVC from collapsing when bending?
The best method is to plug one end of the PVC, fill it with clean, dry sand, and plug the other end before heating. The sand acts as an incompressible filler that supports the internal walls of the conduit while you shape it over a curved template.
Is it legal to bend conduit without a professional bender?
The National Electrical Code does not specify the tool used, but it does specify the result. If your bend maintains the original interior diameter and the integrity of the conduit material, it is code-compliant. However, most amateur bends fail to meet these structural standards.
What is the advantage of using a spring bender?
A spring bender provides an internal support structure that prevents the walls of the conduit from collapsing inward during the bending process. It is essential when you lack the external shoes provided by a professional-grade mechanical bender.
Consult with your local electrical inspector regarding specific AHJ requirements for field-fabricated raceways. Secure your conduit runs today by ensuring all bends are free of obstructions and structural compromises.
