Structural Methods For Attaching Railing Posts To An Existing Deck: A Professional Guide To Safety And Code Compliance

Mounting railing posts to an existing deck requires establishing a rigid connection to the sub-structure through internal blocking and structural fasteners like thru-bolts or specialized tension ties. To meet International Residential Code (IRC) standards, the assembly must withstand a 200-pound concentrated load applied at any point along the top rail without structural failure or excessive deflection.

Structural Evaluation and Essential Equipment Manifest

Before commencing the installation, a thorough assessment of the existing deck’s frame is mandatory. A railing is only as strong as the wood it is anchored to. If the rim joists are showing signs of fungal decay (rot) or if the existing joist hangers are corroded, these components must be replaced before adding the leverage of a 36-inch or 42-inch railing post. The leverage exerted on a post is significant; a force of 200 pounds at the top of a 36-inch post translates to approximately 1,800 foot-pounds of torque at the base connection.

Essential Gear and Material Requirements

• Structural Fasteners: 1/2-inch diameter hot-dip galvanized carriage bolts with washers and nuts, or code-compliant structural screws (e.g., Simpson Strong-Tie SDWS or GRK RSS).
• Lumber for Blocking: Pressure-treated 2x8 or 2x10 scraps that match the depth of your existing floor joists.
• Drilling Tools: High-torque 1/2-inch corded drill or 18V/20V brushless impact driver and drill set.
• Boring Bits: 1/2-inch and 5/8-inch spade bits or ship auger bits for deep penetration.
• Measurement and Alignment: 4-foot spirit level, torpedo level, speed square, and chalk line.
• Safety Hardware: Tension ties (such as the DTT2Z) to connect the post to the joist system and prevent the rim joist from pulling away.
• Corrosion Protection: Zinc-rich cold galvanizing spray for any cut metal and joist tape for newly exposed wood grain.

Benchmarks and Constraints

• Estimated Duration: 4 to 6 hours for a standard 12x16 deck.
• Budget Range: $150–$400 depending on hardware selection and lumber costs.
• Mandatory Standard: IRC Section R301.5 requires the guardrail to resist a 200lb concentrated load.

Tactical Execution: The Step-by-Step Installation Workflow

The following procedure focuses on the "In-Frame" mounting method, which is widely considered the most robust way to secure 4x4 pressure-treated posts to an existing structure.

Step 1: Layout and Rim Joist Reinforcement

Begin by marking the center points of your post locations. Posts should generally be spaced no further than 6 feet apart to prevent rail sag and maintain structural rigidity. Once marked, examine the connection between the rim joist and the perpendicular floor joists.

Warning: Never attach a railing post to a rim joist that is only held by nails. Under lateral pressure, the nails will pull out of the end grain. You must reinforce the rim-to-joist connection with deck screws or structural ties before mounting the post.

1. Measure and mark the post locations, ensuring they do not interfere with joist hangers.
2. If the post is at a corner, ensure you have sufficient "meat" in the wood to drive fasteners without splitting the grain.
3. Install two 3-inch structural screws through the rim joist into every floor joist within 2 feet of a post location.

Step 2: Integrating Internal Blocking

To prevent the post from "rotating" the rim joist, you must install solid wood blocking behind the post location. This creates a "sandwich" effect that distributes the load across multiple framing members.

1. Cut pieces of pressure-treated lumber (matching your joist size) to fit tightly between the first and second joists.
2. Position the first block directly behind where the post will sit.
3. Secure the block using three 3-inch screws through the joists on both sides.
4. Add a second "back-up" block approximately 8 inches behind the first one to create a rigid box structure.

Step 3: Post Preparation and Notching (Optional)

While some contractors notch the bottom of a 4x4 post to "sit" on the decking, many modern codes discourage this because it reduces the effective diameter of the post at its highest point of stress.

1. Cut your 4x4 posts to the desired height (typically 36 inches for residential or 42 inches for commercial/high-drop areas, plus the depth of the joist).
2. If notching, ensure at least 2.5 inches of the post remains intact.
3. Treat all end-cuts with a brush-on wood preservative to prevent internal rot.

Step 4: Boring Pilot Holes and Aligning for Plumb

Precision drilling is the difference between a professional finish and a wobbly railing.

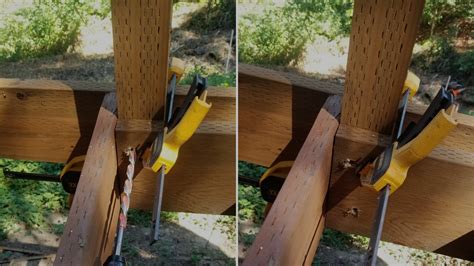

1. Clamp the post into its final position against the rim joist.
2. Use a 1/2-inch drill bit to bore two holes through both the post and the rim joist. The holes should be vertically aligned, with the top hole at least 2 inches down from the top of the joist and the bottom hole at least 2 inches up from the bottom.
3. Check for plumb in both directions using a spirit level before the final tightening.

Pro-Tip: Use a guide block (a scrap piece of wood with a perfectly vertical hole drilled on a drill press) to ensure your drill bit stays level as it passes through 5+ inches of wood.

Step 5: Fastener Installation and Tension Tie Integration

For maximum safety, the top bolt of the post should be connected to a lateral tension tie. This hardware links the post directly to the floor joist, bypassing the potential failure point of the rim joist pulling away.

1. Insert 1/2-inch carriage bolts with a washer on the nut side.
2. On the interior of the joist, install the tension tie over the top bolt.
3. Secure the tension tie to the floor joist using the manufacturer’s specified screws.
4. Tighten the nuts until the washers are slightly indented into the wood. Do not over-tighten to the point of crushing the wood fibers excessively.

Comparison of Railing Post Mounting Methods

Common Installation Failures and Field Fixes

Understanding why post attachments fail is key to ensuring your deck remains safe for its lifespan. Wood is a dynamic material that shrinks and swells, which can loosen hardware over time.

• Failure Scenario: The "Wobbly Post" Syndrome




  • Root Cause: The use of lag screws instead of thru-bolts. Lag screws rely on the withdrawal strength of the wood fibers, which weakens as the wood cycles through moisture changes.
  • Actionable Fix: Remove the lag screws and redrill the holes for 1/2-inch carriage bolts. If the hole is wallowed out, move the post 2 inches or fill the hole with epoxy and a hardwood dowel before redrilling.

• Failure Scenario: Rim Joist Rotation




  • Root Cause: The post is secured to the rim joist, but the rim joist is not properly tied back to the main house or the perpendicular joists. The entire rim "rolls" outward under pressure.
  • Actionable Fix: Install DTT2Z or similar lateral load connectors. These ties pull the rim joist toward the main framing, effectively neutralizing the leverage of the post.

• Failure Scenario: Wood Splitting at Fastener Points




  • Root Cause: Drilling holes too close to the end of the post or the edge of the joist, or failing to drill pilot holes.
  • Actionable Fix: Maintain a minimum 2-inch "edge distance" for all bolts. If splitting occurs, the structural integrity is compromised, and the post or joist section must be replaced.

• Failure Scenario: Hardware Corrosion




  • Root Cause: Using standard zinc-plated bolts in ACQ (Alkaline Copper Quaternary) pressure-treated lumber, which is highly corrosive to non-galvanized steel.
  • Actionable Fix: Only use Hot-Dip Galvanized (HDG) or Grade 304/316 Stainless Steel hardware. Replace any hardware showing rusted streaks immediately.

Frequently Asked Questions

Can I use 4x4 posts for a 42-inch high railing?

Yes, but you must be extremely diligent with your blocking. A 42-inch post acts as a longer lever than a 36-inch post, significantly increasing the stress on the fasteners. Ensure you use at least two 1/2-inch bolts and a tension tie for any railing over 36 inches.

Is notching a 4x4 railing post against code?

It depends on your local jurisdiction. Many inspectors following the IRC interpret notching as a structural reduction that prevents the post from meeting the 200lb load requirement. It is always safer to mount the post "full-profile" against the inside or outside of the rim joist.

How many bolts should I use per post?

A minimum of two 1/2-inch diameter bolts is required per post. These should be spaced at least 5 inches apart vertically to provide enough leverage to resist the outward force applied at the top of the railing.

Can I attach posts to the decking boards?

No. Railing posts must be attached directly to the structural framing (joists). Attaching a post only to the decking boards will result in immediate failure under load, as the decking is not designed to resist lateral torque.

What is the best wood for deck posts?

Pressure-treated Southern Yellow Pine is the standard for structural durability. For higher-end finishes, Western Red Cedar or Redwood are excellent choices, but they are softer and may require larger washers to prevent the bolt heads from sinking into the wood.

Secure Your Structure for Longevity

Investing the time to properly block and bolt your railing posts ensures your deck remains a safe environment for years to come. By adhering to IRC standards and using corrosion-resistant hardware, you protect both your property value and your peace of mind.
