How To Attach Flag To Flag Pole: The Definitive Rigging Guide

Proper flag attachment requires matching the hardware configuration to your specific halyard system, whether using traditional rope lines with brass snaps or internal cable mechanisms with counterweights. Securing a flag correctly prevents premature fabric fraying, mitigates wind-induced metal fatigue, and ensures the ensign flies freely without wrapping around the shaft.

Pre-Operation & Equipment Checklist

Attaching a flag to an upright pole or flagpole requires evaluating your hardware setup before hoisting. Whether you are outfitting a commercial ground-set flagpole with an external halyard or a residential wall-mounted bracket set, identifying your attachment components prevents costly drops, dropped clips, and flag damage.

• Essential Gear, Tools, and Materials:


  • Premium nylon or polyester flag featuring reinforced canvas header tape and heavy-duty brass grommets.
  • Two matching flag snaps (constructed from bronze, brass, or marine-grade stainless steel to prevent rust bleeding).
  • Halyard rope (typically braided nylon or polyester, 1/4-inch to 5/16-inch diameter depending on pole height).
  • Rubber snap covers or vinyl swivel covers (optional, to minimize metal-on-grommet clanging noise against the shaft).
• Mandatory Prerequisite Knowledge and Standards:


  • Familiarity with the United States Flag Code (Title 4, United States Code) if flying the American flag, ensuring proper orientation (canton at the top and hoist side).
  • Verification of halyard tension and knot security (typically utilizing a modified halyard hitch or bowline).
• Estimated Budget and Duration Benchmarks:


  • Material cost: 10 to 30 USD for replacement snaps and halyard line.
  • Time investment: 5 to 10 minutes for standard external halyard rigging.

Step-by-Step Rigging and Hoisting Workflow

Step 1: Inspect and Lay Out the Halyard Line

Begin by untying the halyard rope from the cleat at the base of the flagpole. Lower the rope until both ends are accessible, or retrieve the upper loop if your system utilizes an internal cleat or winch door. Inspect the entire length of the rope for fraying, ultraviolet degradation, or core slippage.

Pro-Tip: If you are replacing an old rope line, tape the end of the new halyard to the old halyard using strong rigging tape and pull it smoothly through the truck (pulley) at the top of the pole to thread it effortlessly.

Step 2: Attach the Top Flag Snap to the Halyard

Take your first flag snap and thread the spring-loaded gate through the eyelet of the top brass grommet located on the flag's canvas header. Next, tie the upper halyard line directly to the eye of this top snap using a secure knot, such as a bowline knot or a double half-hitch. Ensure the knot is pulled completely taut and cannot slip under tension.

Warning: Never attach a flag snap directly to the fabric or the brass grommet without a secure rope loop or clevis, as continuous wind flapping will shear the metal through the fabric header within weeks.

Step 3: Align and Attach the Bottom Flag Snap

Hold the flag vertically next to the halyard rope to measure the exact distance between the top grommet and the bottom grommet. Adjust the lower flag snap along the rope so that the halyard is pulled taut but does not stretch or strain the canvas header of the flag. Attach the lower snap to the bottom brass grommet and secure the rope with a firm knot, allowing just a fraction of slack (approximately 1 inch) to prevent the wind load from tearing the header between the two points.

Step 4: Hoist and Secure the Flag

Pull downward on the haul line to raise the flag smoothly up the flagpole. Keep tension on both sides of the halyard so the flag does not twist around the pole during ascent. Once the flag reaches the truck (the top pulley), wrap the excess halyard rope in a figure-eight pattern tightly around the anchor cleat mounted on the lower section of the pole.

Flag Hardware and Rigging Material Matrix

Common Site Failures and Field Fixes

• Root Cause: Flag continually wraps and binds tightly around the flagpole shaft during moderate wind gusts.


  • Actionable Fix: Install a rotating flag pole ring (spinning tackle) or add a weighted counterweight ball to the bottom halyard line beneath the lower grommet to maintain downward vertical tension.
• Root Cause: Brass grommets tear cleanly out of the canvas header tape.


  • Actionable Fix: The flag was likely attached too tightly between the snaps, forcing the fabric to absorb the entire dynamic wind load. Re-tie the lower snap with approximately one to two inches of slack in the halyard line between the attachment points.
• Root Cause: Metal snaps repeatedly strike the flagpole, creating a loud, distracting metallic clanging noise.


  • Actionable Fix: Slide neoprene snap covers or heavy-duty rubber sleeves over the body of the metal snaps to cushion the impact against the pole surface.
• Root Cause: Halyard rope slips or unties from the snap eyelet under high-wind conditions.


  • Actionable Fix: Replace standard knots with a proper bowline knot finished with a half-hitch locking tail, or upgrade to stainless steel thimbles crimped onto the rope ends.

Frequently Asked Questions

How do I attach a flag if my pole does not have a rope or halyard?

If your flagpole is a wall-mounted bracket style featuring a spinning pole with rings, slide the top grommet of the flag onto the upper plastic clip and attach the bottom grommet to the lower weighted adjustable ring. For stationary non-halyard poles, you must manually slide the pole out of its bracket, slip the sleeve-style flag over the top, and secure the bottom tab before remounting the pole.

Which direction should the flag face when attaching it to the pole?

When attaching a flag, ensure the printed design or the blue union (canton) of an American flag faces outward away from the pole and toward the primary viewing angle or street. The reinforced canvas header with the grommets must always sit against the shaft side of the flagpole.

What is the best knot to use when tying a flag to a halyard?

The bowline knot is the industry standard for securing halyard lines to flag snaps because it creates a secure loop that will not slip under heavy loads, yet remains easy to untie even after exposure to rain and freezing temperatures. Alternatively, a secure double-wrap slip knot backed up with two half-hitches provides reliable performance.

How tight should the halyard rope be pulled when flying the flag?

The halyard should be taut enough to hold the flag near the top of the pole without sagging, but loose enough that the rope does not bow the flagpole shaft or place excessive shear stress on the flag's canvas header. Leaving a tiny amount of give accommodates natural rope shrinkage during wet weather conditions.

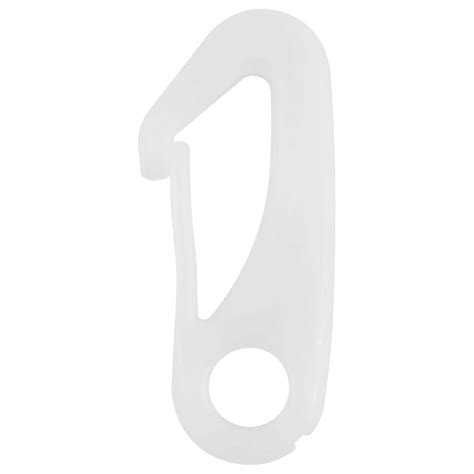

Can I use plastic snaps instead of brass or stainless steel?

While heavy-duty nylon or polycarbonate plastic snaps are resistant to corrosion, they degrade rapidly under continuous ultraviolet solar radiation and become brittle in sub-zero temperatures. Marine-grade brass or stainless steel snaps offer superior longevity and safety against sudden drop failures.

Secure Your Flag Installation Today

Properly rigging your flag ensures years of proud display while protecting your investment from premature fabric tear and hardware failure. Upgrade your setup with marine-grade hardware and correct halyard tension today to keep your flag flying high and true.
