Comprehensive Guide: How To Assemble A Tower Crane On Construction Sites
The assembly of a tower crane is a highly orchestrated engineering operation requiring a mobile crane for initial erection, strict adherence to load-bearing calculations, and synchronization of the mast, slewing unit, and jib components. Compliance with OSHA 1926 Subpart CC and ASME B30.3 standards is mandatory to ensure structural integrity and operational safety during the climbing and installation phases.
Foundation Engineering and Pre-Erection Site Protocols
Before a single component arrives on-site, the structural integrity of the base must be verified against geotechnical reports. A tower crane is only as stable as its foundation; whether utilizing a fixed base (concrete pad) or a rail-mounted undercarriage, the site must be leveled to within a tolerance of 0.1 percent. The assembly team must conduct a comprehensive Job Hazard Analysis (JHA) to account for swing radius interference, proximity to power lines, and wind velocity restrictions.
- Essential Equipment: A mobile crane with sufficient boom length and capacity to lift the heaviest individual component (usually the counter-jib or the slewing assembly).
- Personnel Requirements: One certified crane operator, one rigger-in-charge, a minimum of three assembly technicians, and a site supervisor holding current OECP or equivalent certification.
- Mandatory Tools: Torque wrenches calibrated to manufacturer specifications, high-tensile strength bolt lubrication, spirit levels, hydraulic jacks for climbing frames, and taglines for load control.
- Time Benchmarks: A standard bottom-slewing or top-slewing tower crane assembly typically requires 2 to 4 full working days, depending on mast height and jib configuration.

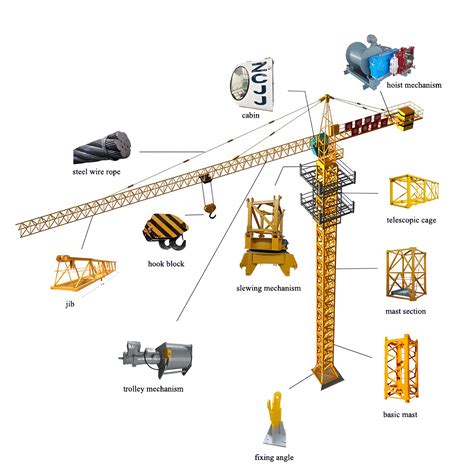

Sequential Tower Crane Assembly Procedure
Step 1: Base and Initial Mast Section Installation
The process begins with the installation of the anchor bolts or the undercarriage. If using a fixed base, anchor bolts are embedded into a reinforced concrete pad of a thickness specified by the manufacturer’s load chart. Once the base is cured and verified, the first mast section is hoisted into place by the assist mobile crane. It must be perfectly vertical; technicians use shims and precision levels to ensure the mast is plumb, as any deviation here is amplified as the tower gains height.
Warning: Never attempt to bolt mast sections together without verifying the condition of the high-tensile bolts. Any sign of thread deformation or corrosion requires immediate replacement with manufacturer-certified hardware.
Step 2: Slewing Unit and Operator Cab Mounting
Once the base mast is secured, the slewing unit—the mechanism that allows the crane to rotate—is lifted atop the mast. This component houses the slewing motor and the turntable bearing. Following this, the operator's cab is mounted to the slewing unit. At this stage, all electrical connections for the control systems must be meticulously inspected and weatherproofed, as these systems govern the safety limiters and load-moment indicators.
Step 3: Counter-Jib and Counterweight Installation
The counter-jib is installed to provide the necessary balance for the main jib. Once the counter-jib is pinned or bolted to the slewing unit, the mobile crane lifts the counterweights. It is critical to follow the manufacturer’s specific weight sequence; installing counterweights out of order can cause the tower to become unbalanced and lead to a catastrophic structural failure during the assembly phase.
Step 4: Main Jib Assembly and Hoisting
The main jib is usually assembled on the ground in sections before being hoisted as a single unit or in smaller segments, depending on the available workspace. During the lift, taglines must be managed by the ground crew to prevent the jib from swinging or rotating unexpectedly due to wind gusts. Once positioned, the jib is attached to the slewing unit, and the trolley system is installed along the jib rail.
Step 5: Reeving and Load Testing
With the crane structure complete, the hoist cable is reeved through the trolley and hook block. The system must then undergo a rigorous load test. This involves lifting a test weight—typically 110 percent of the maximum rated load—to verify the integrity of the brakes, the load moment indicator (LMI), and the structural stability of the mast.
Telescope Qtz160 On Chassis Tower Crane For Sale - Buy Building Tower ...
Comparative Metrics for Tower Crane Components
| Component | Function | Critical Inspection Point | Torque/Safety Standard |
|---|---|---|---|
| Mast Bolts | Structural tension | Thread integrity and lubrication | Verified by torque wrench chart |
| Slewing Ring | 360-degree rotation | Bearing play and grease debris | ASME B30.3 tolerance levels |
| Hoist Rope | Load bearing | Wire breaks and diameter reduction | ISO 4309 inspection criteria |
| Counterweights | System balance | Proper seating and locking pins | Manufacturer load sequence plan |
Field Troubleshooting and Risk Mitigation
- Root Cause: Mast Sections Out of Plumb. If the mast deviates from the vertical axis during assembly, the stress on the connection bolts increases exponentially. Fix: Stop assembly immediately, utilize hydraulic leveling jacks to adjust the base shims, and re-verify plumbness using a laser level.
- Root Cause: Slewing Mechanism Stuttering. This usually indicates uneven loading on the slewing ring or insufficient lubrication. Fix: Clean the raceway, inspect for metal shavings, re-lubricate with the manufacturer-specified high-pressure grease, and perform a slow rotation test.
- Root Cause: Limit Switch Failure. If the hoist limit switch does not trigger, it poses a risk of two-blocking. Fix: Inspect the electrical limit switch for moisture ingress or mechanical obstruction. Test the bypass circuit and replace the switch assembly if the continuity signal is inconsistent.
Frequently Asked Questions
What is the maximum wind speed allowed during tower crane assembly?
Most manufacturers mandate a maximum wind speed of 20 to 25 miles per hour (32 to 40 kilometers per hour) for assembly operations. Exceeding this limit compromises the safety of the mobile crane assisting the lift and the stability of the partially assembled tower.
Why is the order of counterweight installation critical?
The counterweights are designed to balance the tower against the specific weight of the main jib and the hook load. Installing counterweights before the jib is secured—or in the wrong order—creates an imbalanced moment that can cause the tower to buckle at the mast connections.
How often must a tower crane be inspected after assembly?
OSHA requires a daily inspection by a qualified person before the crane is used. Additionally, a comprehensive structural inspection must be performed annually, or after any significant event such as high-wind storms, seismic activity, or mechanical repairs.
Can a tower crane climb itself if the building height increases?
Yes, tower cranes utilize a climbing frame that allows the crane to add new mast sections at the base or beneath the slewing unit as the building rises. This process is highly technical and requires specialized internal climbing systems or external climbing collars.
Are there specific certifications required for the assembly crew?
Assembly team members must be certified in rigging, signaling, and the specific operation of the mobile cranes used during the process. Furthermore, the assembly supervisor must have documented competency in the specific crane model being erected.
