How To Assemble An AR-15 Lower Receiver: A Step-by-Step Gunsmithing Guide

Building an AR-15 lower receiver requires systematically installing the fire control group, pivot pins, bolt catch, magazine release, pistol grip, and rear receiver extension assembly onto a stripped lower. Using dedicated tools like roll pin punches, an armorer's wrench, and a lower receiver vise block ensures precise component seating while preventing damage to the aluminum receiver. Proper installation guarantees safety, functional reliability, and compliance with standard mil-spec torque and assembly benchmarks.

Workspace Preparation, Tools, and Safety Protocols

Assembling a stripped AR-15 lower receiver is a highly rewarding project that provides a deep understanding of the rifle's mechanical cycle of operation. Before beginning, establish a clean, organized, and well-lit workspace free of ammunition. Because several steps involve springs under high tension, wearing safety glasses is mandatory to protect against flying detents.

To prevent scratching or marring the anodized finish of your aluminum receiver, apply masking tape or painter's tape to the areas surrounding pin holes, particularly near the bolt catch and trigger guard. Using the correct tools not only protects your components but also ensures that critical parts like the castle nut are torqued to exact technical specifications.

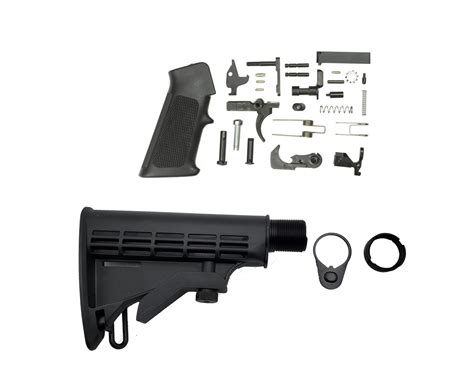

Preparation Checklist and Benchmarks

• Estimated Duration: 45 to 90 minutes depending on experience level.
• Safety Requirements: Eye protection (safety glasses) is mandatory; clear the workspace of all live ammunition.
• Essential Gunsmithing Tools:


  • Bench vise with a dedicated nylon or polymer lower receiver vise block.
  • Roll pin punch set (specifically 3/32-inch, 1/8-inch, and 5/64-inch sizes).
  • Roll pin starter punches (highly recommended to prevent bent pins).
  • Brass and nylon gunsmithing hammer.
  • AR-15 armorer's castle nut wrench.
  • A 1/4-inch clevis pin (an inexpensive hardware store tool that simplifies pivot pin installation).
  • Flathead screwdriver or hex key (matching your pistol grip screw).
  • Automatic center punch (for staking the castle nut).
• Consumables and Lubricants:


  • High-quality gun oil or Clean-Lubricate-Protect (CLP) solution.
  • Aeroshell 64 (formerly 33MS) or equivalent lithium-based anti-seize grease (for receiver extension threads).
  • Painter's tape or masking tape.

Step-by-Step Lower Receiver Assembly

Step 1: Installing the Front Pivot Pin

The front pivot pin is located at the front of the receiver and secures the upper receiver to the lower receiver. This step is notoriously difficult because the small pivot pin detent is under spring tension and can easily launch out of the receiver. Using a 1/4-inch clevis pin makes this process incredibly simple and tool-free.

1. Insert a 1/4-inch clevis pin through the front pivot pin ears of the lower receiver from the left side to the right side. Align the cross-drilled hole of the clevis pin with the detent channel inside the receiver ear.
2. Insert the pivot pin spring through the cross-drilled hole of the clevis pin and into the receiver channel. Follow the spring with the brass or steel pivot pin detent.
3. Use a 3/32-inch roll pin punch or a flat tool to push the detent completely into the channel, compressing the spring until it is flush with the inner surface of the receiver ear.
4. Rotate the clevis pin 90 degrees to capture the detent in place, allowing you to remove the punch.
5. Place the actual AR-15 front pivot pin against the end of the clevis pin from the opposite side. Ensure the grooved slot of the pivot pin faces toward the detent.
6. Push the pivot pin slowly through the receiver ears, sliding the clevis pin out as you push. The pivot pin will capture the detent in its longitudinal groove. Verify that the pin slides back and forth smoothly and locks into its extended and retracted positions.

Pro-Tip: If you do not have a clevis pin, perform this assembly inside a large, clear plastic bag. If the detent slips and launches under spring pressure, the bag will catch the part, saving you from searching your workshop floor.

Step 2: Installing the Trigger Guard

If your lower receiver does not feature an integrated polymer or aluminum trigger guard, you must install a standard swing-down guard. This requires driving a roll pin through the rear ears of the receiver and securing the front with a spring-loaded detent or screw.

1. Locate the trigger guard, the small trigger guard roll pin, and the front set screw or spring-loaded detent.
2. Support the lower ears of the receiver. Place a block of wood or a specialized receiver block directly beneath the lower ear of the trigger guard. This is critical: if you hammer the roll pin without supporting this ear, the aluminum ear can easily snap off, ruining your receiver.
3. Apply a drop of gun oil to the roll pin hole on the receiver and the roll pin itself.
4. Align the trigger guard with the holes in the receiver ears, ensuring the spring detent faces forward toward the magwell.
5. Using a 1/8-inch roll pin starter punch, tap the roll pin into the rear ear and through the trigger guard.
6. Switch to a standard 1/8-inch roll pin punch to drive the pin flush with the outer surface of the receiver ear. Depress the front spring detent and swing the guard into place between the front ears until it clicks.

Warning: Never hammer a trigger guard roll pin without solid mechanical support directly underneath the receiver ear. The aluminum casting is thin at this point and highly susceptible to shear fractures.

Step 3: Installing the Magazine Catch and Release

The magazine catch assembly consists of the magazine catch, the magazine catch spring, and the aluminum magazine release button.

1. Insert the threaded shaft of the magazine catch into the designated slot on the left side of the lower receiver.
2. Slide the magazine catch spring over the threaded shaft where it protrudes through the right side of the receiver.
3. Thread the magazine release button onto the threaded shaft by hand, turning it clockwise two or three full rotations to catch the threads.
4. To finish tightening, press the magazine release button deep into its recess on the right side of the receiver. You can use the wooden handle of a hammer or a plastic punch to push it deep past flush.
5. While keeping the button fully depressed, rotate the magazine catch arm on the left side of the receiver clockwise.
6. Continue spinning the arm until the end of the threaded shaft is flush with, or slightly protruding past, the outer face of the magazine release button. Release the button and test tension with an empty magazine.

Step 4: Installing the Bolt Catch

The bolt catch holds the bolt carrier group open after the last round is fired. It is held in place by a spring, a plunger, and a roll pin.

1. Apply painter's tape to the side of the receiver surrounding the bolt catch ears to prevent the hammer or punch from slipping and scratching the finish.
2. Insert the bolt catch spring into the small recess located between the two bolt catch ears on the receiver.
3. Place the bolt catch plunger on top of the spring, with the rounded end facing outward.
4. Position the bolt catch over the spring and plunger. The flat side of the catch must face toward the inside of the receiver.
5. Use a 3/32-inch roll pin starter punch to drive the bolt catch roll pin from the rear of the receiver toward the front.
6. Once the pin is started and holding the bolt catch in alignment, use a 3/32-inch roll pin punch (preferably a flat-sided bolt catch punch) to drive the pin home until it is centered evenly within both ears. Ensure the bolt catch pivots smoothly and springs back when depressed.

Step 5: Installing the Fire Control Group

The fire control group includes the trigger, trigger spring, disconnector, disconnector spring, hammer, hammer spring, and two retaining pins. Proper spring orientation is critical for safe operation.

1. Assemble the Trigger: Install the trigger spring onto the trigger. Ensure the coils of the spring slide over the bosses on the sides of the trigger, with the middle loop resting behind the rear of the trigger sear and the two legs pointing forward and downward.
2. Install the Disconnector Spring: Push the wider, flared end of the disconnector spring into the circular pocket on top of the trigger. Push down firmly until it snaps into place.
3. Seat the Disconnector: Place the disconnector on top of the trigger, compressing the disconnector spring, and align the pin holes of the trigger and disconnector.
4. Install the Trigger Assembly: Lower the assembled trigger and disconnector into the receiver cavity. Lubricate the trigger pin hole. Align the trigger assembly holes with the lower receiver holes. Slide a trigger pin in from either side. The pin should slide in with light finger pressure or gentle taps from a brass hammer. Ensure the legs of the trigger spring rest flat on the floor of the receiver cavity, pointing forward.
5. Assemble the Hammer: Install the hammer spring onto the hammer. The coils must slide over the hammer bosses, with the central loop resting flat against the back side of the hammer, and the two long legs extending down from the bottom of the coils.
6. Install the Hammer Assembly: Cock the hammer spring legs back and down. Lower the hammer into the receiver. The legs of the hammer spring must rest on top of the trigger pin, seated within the grooves of the pin to hold it in place.
7. Secure the Hammer Pin: Push the hammer downward, compressing the hammer spring, until the pin holes align with the receiver. Insert the hammer pin from the left side to the right. Gently tap the pin flush using a brass hammer.
8. Perform a Quick Safety Check: Hold the hammer to prevent it from striking the aluminum receiver wall. Pull the trigger to release the hammer. Push the hammer back down to ensure it resets and catches on the disconnector.

Step 6: Installing the Safety Selector and Pistol Grip

The safety selector prevents the trigger from releasing the hammer when set to "Safe". It is retained by a spring-loaded detent that is held in place by the pistol grip.

1. Ensure the hammer is fully cocked. Insert the safety selector cylinder into the receiver from the left side, keeping it in the "Safe" or "Fire" position.
2. Flip the receiver upside down. Drop the safety selector detent into its designated vertical channel on the right-rear side of the receiver. The pointed end of the detent must enter the hole first so that it interfaces with the grooves on the safety selector cylinder.
3. Place the safety selector spring directly into the corresponding hole on the top surface of your pistol grip.
4. Carefully slide the pistol grip onto the receiver grip tang. Ensure the safety spring aligns perfectly with the detent channel in the receiver without bending, kinking, or crushing the spring.
5. While holding the grip firmly against the receiver to keep the spring compressed, insert the pistol grip screw (with its lock washer) down through the center of the grip.
6. Thread the screw into the receiver using a flathead screwdriver or hex wrench. Tighten the screw firmly to approximately 25 to 30 inch-pounds. Avoid overtightening if you are using a polymer grip. Test the safety selector for crisp, positive clicks.

Step 7: Installing the Rear Takedown Pin and Buffer Tube Assembly

This step installs the rear takedown pin and seals the rear of the lower receiver with the receiver extension (buffer tube).

1. Insert the rear takedown pin into the receiver from the right side. The groove on the pin must face toward the rear of the receiver.
2. Slide the castle nut onto the receiver extension (buffer tube) with the castle nut notches facing toward the rear (flanged end) of the tube. Thread it all the way down.
3. Slide the receiver end plate onto the buffer tube, aligning the indexing tab with the groove on the bottom of the tube.
4. Apply a light coat of anti-seize grease (such as Aeroshell 64) to the external threads of the receiver extension.
5. Thread the buffer tube into the rear of the receiver clockwise. Stop threading just before the front lip of the tube covers the small hole for the buffer retainer pin.
6. Insert the buffer retainer spring and the buffer retainer pin into the vertical hole on the rear lip of the receiver.
7. Depress the buffer retainer pin using your finger or a punch, and turn the buffer tube one final rotation until the lip of the tube captures the outer shoulder of the retainer pin, leaving the center pin free to protrude upward.
8. Insert the rear takedown pin spring and detent into the small horizontal hole at the rear of the receiver.
9. Slide the receiver end plate forward against the rear of the receiver, compressing the takedown pin spring. Ensure the spring compresses straight and does not bend sideways.
10. Hand-tighten the castle nut against the end plate to hold the assembly under tension.
11. Secure the lower receiver in your vise block. Using an AR-15 armorer's wrench, torque the castle nut to 38 to 40 foot-pounds.
12. Stake the Castle Nut: Use an automatic center punch to displace metal from the receiver end plate into one of the notches on the castle nut. This mechanical lock prevents the castle nut from backing off under recoil.

Step 8: Installing the Buffer and Buffer Spring

1. Slide the rifle or carbine buffer spring over the buffer.
2. Push the spring and buffer assembly directly into the open end of the buffer tube.
3. Push the assembly past the buffer retainer pin. The pin will pop up and lock the buffer securely inside the tube.

Component Specifications and Torque Standards

Common Mechanical Failures and Bench Fixes

Hammer Fails to Cock or Drops When Trigger is Released

• Root Cause: The hammer spring is installed backward, or the legs of the hammer spring are sitting underneath the trigger pin rather than on top of it. This reduces the spring tension, preventing the sear from catching the hammer shelf.
• Actionable Fix: Remove the hammer pin and lift the hammer out of the receiver. Reinstall the hammer spring so that the central loop rests against the back of the hammer body and the legs extend from the bottom of the coils pointing down and back. Reinstall the hammer, ensuring the legs rest flat on top of the trigger pin.

Rear Takedown Pin or Front Pivot Pin is Extremely Stiff or Locked Solid

• Root Cause: The pin detent is installed backward (flat end facing the pin instead of the pointed end), or the spring was bent and crushed during the installation of the receiver end plate or pistol grip.
• Actionable Fix: Carefully back off the castle nut or remove the pistol grip to relieve tension on the spring. Pull the damaged spring out. If the spring is bent, replace it. Ensure the pointed tip of the brass or steel detent is facing toward the pin channel, slide the spring back in, and carefully re-assemble without kinking the spring.

Bolt Catch Binds or Does Not Spring Back Automatically

• Root Cause: The bolt catch spring and plunger were installed in the incorrect order, or the roll pin is bent and applying uneven lateral pressure on the catch.
• Actionable Fix: Drive out the bolt catch roll pin using a 3/32-inch punch. Remove the bolt catch and inspect the spring cavity. Ensure the spring is inserted first, followed by the plunger with its rounded tip facing outward. If the roll pin is bent, replace it with a new mil-spec pin and tap it back into place.

Frequently Asked Questions

Do I absolutely have to stake my castle nut?

Yes, staking the castle nut is highly recommended for any AR-15 intended for defensive use or high-volume shooting. Staking physically displaces metal from the end plate into a notch on the castle nut, which prevents the nut from backing off under the thermal expansion and vibration of recoil.

What is the difference between a mil-spec and commercial buffer tube?

Mil-spec buffer tubes are machined from 7075-T6 aluminum, have an outer diameter of 1.148 inches, and feature rolled threads. Commercial buffer tubes are extruded from 6061-T6 aluminum, have an outer diameter of 1.170 inches, and feature cut threads. You must match your buttstock selection to the specific diameter of your buffer tube.

How do I safely test my fire control group functions after assembly?

With the upper receiver off, place your thumb over the hammer to cushion its fall. Put the selector on "Safe" and pull the trigger; the hammer should not fall. Switch the selector to "Fire" and pull the trigger, catching the hammer with your thumb. While holding the trigger down, cock the hammer back; the disconnector should catch it. Release the trigger slowly; you should hear a loud click as the hammer slips off the disconnector and catches on the primary trigger sear.

What grease should I use on the buffer tube threads?

You should use a lithium-based grease containing molybdenum disulfide, such as Aeroshell 64 (formerly Aeroshell 33MS). Avoid using greases containing graphite, as graphite can react chemically with aluminum in the presence of moisture, leading to galvanic corrosion over time.

Optimize Your Firearm Performance

Building your own lower receiver is the foundational step to creating a completely customized, high-performance rifle. Upgrade your build today with premium triggers, ergonomic grips, and heavy-duty buffer components designed for peak field reliability.
