How To Apply A Wound VAC: A Clinical Guide To Negative Pressure Wound Therapy

Successful application of a Wound VAC involves debriding the wound bed, protecting the periwound skin with a barrier, and fit-testing specialized foam to the wound geometry before sealing with an occlusive drape. This creates a closed system that maintains a controlled negative pressure environment, typically at -125 mmHg, to accelerate granulation, manage exudate, and reduce localized edema.

Clinical Preparation and Negative Pressure Equipment Checklist

Before initiating Negative Pressure Wound Therapy (NPWT), a comprehensive assessment of the wound bed is mandatory. The wound must be free of necrotic tissue, eschar, and untreated osteomyelitis. Clinicians must ensure that any underlying structures, such as bone, tendons, or organs, are protected with a non-adherent layer before foam placement. The primary goal of preparation is to ensure the periwound skin is capable of maintaining an airtight seal while remaining protected from the moisture of the wound exudate.

Essential Equipment and Materials

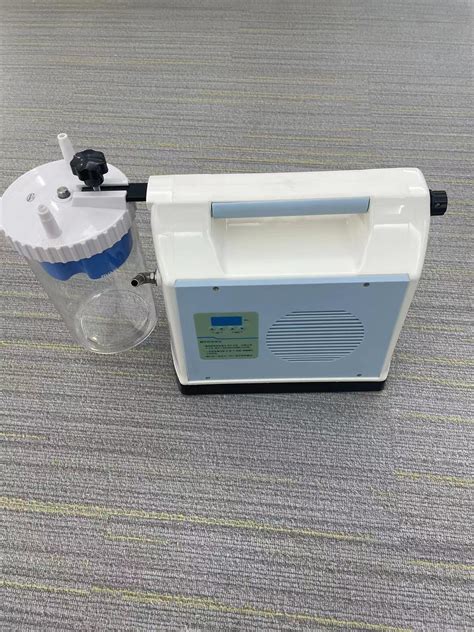

• NPWT Therapy Unit: The vacuum pump (e.g., KCI V.A.C. Therapy System or equivalent) calibrated to the physician’s ordered pressure settings.
• Collection Canister: Usually available in 300mL, 500mL, or 1000mL sizes depending on exudate volume.
• Foam Dressing Kit: Includes medical-grade reticulated open-cell foam (black Granufoam, silver-impregnated, or white polyvinyl alcohol foam).
• Occlusive Transparent Film/Drape: Adhesive polyurethane dressing to create the airtight seal.
• Suction Pad and Tubing: The interface (e.g., SensaT.R.A.C. pad) that connects the dressing to the vacuum unit.
• Skin Protectant: Alcohol-free barrier wipes or skin prep sprays to prevent maceration and skin stripping.
• Sterile Scissors and Forceps: For precision cutting of the foam and handling of the materials.
• Saline and Gauze: For initial wound cleansing.

Prerequisite Standards and Metrics

• Debridement Status: The wound should have less than 20% slough/eschar for optimal NPWT efficacy.
• Hemostasis: Active bleeding must be controlled prior to application; NPWT is contraindicated for actively bleeding wounds.
• Documentation: Baseline measurements (length, width, depth, and tunneling) must be recorded.
• Personnel: Should be performed by a licensed healthcare professional or a trained caregiver under strict clinical supervision.

Clinical Workflow for NPWT Application and Dressing Integration

Step 1: Wound Bed Preparation and Debridement

Thoroughly cleanse the wound with sterile saline or a prescribed antimicrobial cleanser. Inspect the wound for tunneling or undermining using a sterile cotton-tipped applicator. If necrotic tissue is present, surgical or enzymatic debridement may be necessary before application. Ensure the surrounding skin (at least 5cm from the wound edge) is clean and dry.

Warning: Never apply a Wound VAC over exposed blood vessels, anastomotic sites, organs, or nerves. These must be covered with a non-adherent layer or biological tissue before any foam is introduced.

Step 2: Periwound Protection

The integrity of the periwound skin is critical for both the seal and the patient's comfort. Apply a skin barrier/prep to the area around the wound where the adhesive drape will sit. For wounds with high exudate, consider "framing" the wound with thin hydrocolloid strips or additional pieces of transparent film to create a "window" that protects the skin from maceration.

Step 3: Sizing and Cutting the Foam

Select the appropriate foam based on the wound’s characteristics. Black foam is typically used for stimulating granulation, while white foam (which is denser and pre-moistened) is used for tunneling or when a more gentle interface is required.

1. Measure the wound's dimensions precisely.
2. Using sterile scissors, cut the foam to the exact shape and size of the wound cavity.
3. Do not cut the foam over the wound to avoid small fragments falling into the wound bed.
4. Gently place the foam into the wound. It should fill the entire cavity but should not be packed tightly. The foam will compress once the vacuum is initiated.
5. Ensure the foam does not overlap onto the intact periwound skin, as this will lead to rapid maceration and skin breakdown.

Pro-Tip: If the wound is deep or has multiple layers, keep track of the number of foam pieces used. Document this number clearly on the dressing and in the patient's chart to ensure all pieces are removed during the next dressing change.

Step 4: Applying the Occlusive Drape

The drape must extend 3-5 cm beyond the wound margin to ensure a stable seal.

1. Remove the first protective layer of the transparent film.
2. Place the film over the foam-filled wound, minimizing wrinkles. Wrinkles are the primary cause of air leaks.
3. Remove the remaining backing layers and press the edges firmly into the skin to activate the adhesive.
4. If the wound is in a difficult anatomical location (e.g., the sacrum or heel), use a "picture-framing" technique with small strips of drape to reinforce areas prone to movement.

Step 5: Interface Pad Attachment

This step establishes the connection between the dressing and the vacuum pump.

1. Identify the center of the foam-filled area under the drape.
2. Pinch the drape and foam slightly and cut a small hole (approximately 1-2 cm in diameter) through the drape. Do not cut into the foam itself; simply remove a circular portion of the film.
3. Remove the adhesive backing from the suction pad (e.g., T.R.A.C. pad).
4. Center the pad opening directly over the hole you cut in the drape.
5. Press the edges of the pad down firmly to ensure a vacuum-tight seal.

Step 6: Initiating and Verifying Therapy

Connect the dressing tubing to the canister tubing using the quick-connect mechanism. Ensure the canister is properly seated in the NPWT unit.

1. Power on the unit and select the prescribed pressure (standard is 125 mmHg, either continuous or intermittent).
2. Observe the dressing as the vacuum engages. The foam should collapse and take on a firm, "raisin-like" appearance.
3. Listen for a whistling sound, which indicates a leak.
4. Verify that the unit reaches the target pressure without triggering a "Leak Alarm."

NPWT Material Specifications and Pressure Guidelines

The selection of foam and the setting of pressure parameters are dictated by the wound etiology and the goal of the therapy (e.g., fluid management vs. tissue stimulation).

Clinical Troubleshooting for NPWT Failures

Despite meticulous application, mechanical or physiological issues can arise. Rapid intervention is necessary to prevent wound regression or skin damage.

• Scenario: Persistent "Leak" Alarm




  • Root Cause: Improper seal around the drape edges, wrinkles in the film, or poorly attached suction pad.
  • Actionable Fix: Use a stethoscope to locate the leak (it will sound like a hiss). Patch the leak with small strips of transparent film. If the leak is near the suction pad, ensure the pad is fully adhered. If the leak cannot be found, the entire dressing may need to be reapplied.

• Scenario: "Canister Full" or "Blockage" Alarm




  • Root Cause: Clotted blood or thick exudate obstructing the tubing, or the canister has reached capacity.
  • Actionable Fix: Inspect the tubing for kinks or visible clots. If the canister is full, replace it immediately. If a clot is present in the tubing, gently "milk" the tube toward the canister to clear the obstruction. Never flush the tubing into the wound.

• Scenario: Increased Pain During Therapy




  • Root Cause: High pressure settings or foam adhering to the wound bed.
  • Actionable Fix: Ensure the pressure is at the lowest effective level (usually 75-125 mmHg). Consider switching to white foam, which is less likely to grow into the tissue. During dressing changes, soak the foam with saline for several minutes before removal to reduce trauma.

• Scenario: Sudden Onset of Bright Red Blood in Tubing




  • Root Cause: Rupture of a blood vessel or trauma to the wound bed.
  • Actionable Fix: Emergency Procedure. Immediately turn off the NPWT unit. Disconnect the tubing and leave the dressing in place. Apply direct manual pressure to the wound site and seek immediate surgical intervention. Do not remove the foam, as it can help maintain pressure on the bleed.

Frequently Asked Questions

How long can a Wound VAC be turned off?

The vacuum pump should never be turned off for more than two hours in a 24-hour period. If the pump is off longer than two hours, the dressing must be removed and replaced with a conventional moist-to-dry dressing to prevent the accumulation of stagnant exudate and bacterial proliferation.

Can a patient shower with a Wound VAC?

Yes, but the pump must be disconnected. The dressing itself is water-resistant. Patients should keep the tubing clamped or capped and avoid direct high-pressure water streams on the dressing. The pump itself is electronic and must never be taken into the shower.

Why is the foam sticking to the wound bed during changes?

Foam can integrate with rapidly growing granulation tissue if left too long or if the tissue is particularly aggressive. To prevent this, ensure dressing changes occur every 48 to 72 hours. If sticking occurs, saturate the foam with sterile saline or a 1% lidocaine solution (if prescribed) and wait 5–10 minutes before gently removing the foam.

What should I do if the skin around the wound looks white and pruned?

This is maceration, caused by moisture being trapped against the skin. It usually happens if the foam overlaps onto the skin or if there is a slow leak. Reapply the dressing, ensuring the foam is cut slightly smaller than the wound and that a high-quality skin barrier is used on the periwound area.

How do I know if the Wound VAC is working?

A functioning NPWT system will show a firm, compressed foam dressing that is cool to the touch and a canister that is slowly collecting exudate. Clinically, you should observe a reduction in wound size, a decrease in edema, and the presence of healthy, beefy-red granulation tissue during dressing changes.
