How To Align Starter With Flywheel: The Definitive Mechanical Guide

Proper starter-to-flywheel alignment prevents catastrophic ring gear destruction, premature bendix drive failure, and destructive starter-motor binding. Achieving this mechanical harmony requires maintaining precise tolerances for pinion depth, backlash clearance, and angular concentricity using specialized shims and feeler gauges.

Pre-Operation & Equipment Checklist

Executing a precise starter motor alignment requires disciplined preparation, exact measurements, and an understanding of automotive powertrain tolerances. When a starter fails to engage a flywheel or flexplate correctly, the resulting tooth clash can strip hardened steel rings and overload the starter armature.

• Essential Gear, Tools, and Materials:


  • Dial indicator with magnetic base
  • Depth micrometer or digital caliper
  • Starter shim kit (Ford, Chevrolet, or universal specific thickness)
  • Heavy-duty wire brush and emery cloth
  • Torque wrench capable of 15 to 50 foot-pounds
  • High-temperature graphite or moly-based assembly lube
  • Inspection mirror and flashlight
• Prerequisite Knowledge and Standards:


  • Familiarity with ring gear pitch diameters (typically 10/12 pitch in automotive applications)
  • Understanding of SAE starter mounting face parameters
  • Battery disconnected to prevent accidental electrical short circuits
• Time and Budget Benchmarks:


  • Estimated duration: 1.5 to 3 hours depending on engine bay accessibility
  • Material cost: 15 to 40 USD for shims and hardware

Step-by-Step Starter Alignment Workflow

Step 1: Disconnection and Surface Preparation

Disconnect the vehicle's negative battery terminal to eliminate live power at the starter solenoid main feed. Unbolt the starter motor completely, supporting its weight so as not to strain the heavy-gauge battery cable or control wire. Remove the starter entirely from the bellhousing or mounting plate.

Inspect the mounting pad on the engine block or transmission bellhousing using a wire brush and emery cloth. Eliminate all oil, corrosion, paint, and burrs. Even a microscopic speck of debris trapped between the starter mounting nose and the block will tilt the starter assembly, throwing the pinion gear out of parallel with the flywheel.

Step 2: Measuring Backlash and Clearance

Reinstall the starter finger-tight without using any shims initially. To check the critical clearance between the starter pinion gear teeth and the flywheel ring gear teeth, use the paperclip method or a wire gauge.

Insert a standard paperclip (approximately 0.015 to 0.030 inches in diameter) between the root of a flywheel tooth and the tip of a starter pinion tooth while the pinion is manually pushed outward into its fully engaged position (you may need to jumper the solenoid or pull the bendix drive forward by hand).

Warning: Never force the starter pinion into the ring gear teeth without adequate clearance. Zero clearance causes rapid thermal expansion, locking the starter motor and burning out the field coils.

Step 3: Shim Insertion and Adjustment

If the clearance measured in Step 2 is less than 0.015 inches, or if the teeth bind completely, you must add shims between the starter motor and the mounting pad.

Loosen the mounting bolts and slide starter shims between the outer mounting pad and the block. Full shims lower the entire starter evenly, while partial shims (angled or half-shims) can correct angular misalignment if the starter is tilting relative to the crankshaft centerline.

Pro-Tip: Always add shims in small increments (typically 0.030-inch steps) and recheck your backlash measurement after every adjustment to prevent over-correcting.

Step 4: Verifying Full Tooth Engagement

With the correct shims installed, check the depth of engagement when the starter drive is fully extended. The pinion gear should travel far enough forward to engage at least 75 to 100 percent of the face width of the flywheel ring gear.

Use an inspection mirror or a small dab of machinist's layout fluid (Dykem) on the ring gear teeth. Crank the engine briefly by hand or via remote starter switch, then inspect the wear pattern left on the fluid. The pattern should center evenly across the tooth faces without riding exclusively on the outer tips or the inner roots.

Step 5: Final Torquing and Electrical Hookup

Once the backlash and engagement depth meet factory specifications, torque the starter mounting bolts to the manufacturer's exact specification—typically 35 foot-pounds for standard 3/8-inch bolts and up to 45 foot-pounds for larger high-torque applications. Apply a drop of medium-strength threadlocker (blue) to the bolt threads to combat engine vibration.

Reconnect the electrical harness, ensuring terminal rings are clean, corrosion-free, and secured with lock washers. Reconnect the negative battery terminal and perform a test crank to verify smooth, quiet starter engagement.

Technical Tolerances and Specification Matrix

Common Alignment Failures and Field Fixes

• Loud Metallic Screeching During Cranking


  • Root Cause: Insufficient backlash causing the starter pinion teeth to jam into the flywheel ring gear without rolling smoothly into the valleys.
  • Actionable Fix: Remove the starter, add one or two 0.030-inch full shims between the starter pad and block, and recheck the clearance with a feeler gauge.

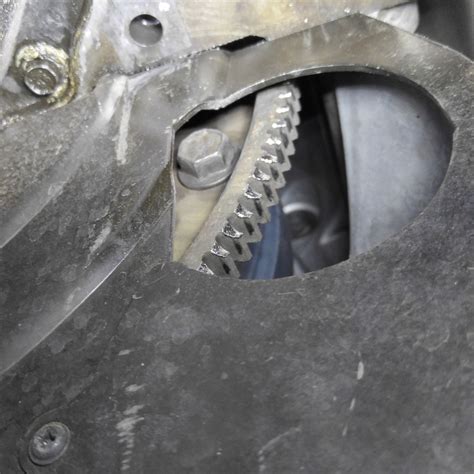

• Premature Stripping of Starter Pinion Teeth


  • Root Cause: Excessive backlash or a warped starter mounting nose cone, causing the gear teeth to make contact only on their tips rather than their pitch lines.
  • Actionable Fix: Inspect the starter nose housing for hairline cracks. Replace the starter if housing distortion is present, and install parallel shims to ensure full face-width tooth contact.
• Starter Continues to Spin or Hangs Up After Engine Starts


  • Root Cause: Severe binding caused by a misaligned starter skewing the bendix drive gear, preventing the overrunning clutch from retracting smoothly.
  • Actionable Fix: Readjust shims to relieve side-load pressure on the drive shaft, clean the bendix drive helix with solvent, and apply a light coat of dry lubricant.

Frequently Asked Questions

How do I know if my starter needs shims?

You can usually tell your starter needs shims if it emits a loud, high-pitched whining or grinding noise when you turn the key, or if visual inspection shows metal shavings on the flywheel. If the pinion gear binds tightly against the ring gear with zero clearance, shims are mandatory to push the starter motor slightly away from the flywheel centerline.

Can I reuse old starter shims during replacement?

Yes, you can reuse old shims as long as they are flat, uncracked, and free of burrs or heavy corrosion. However, because every starter motor and block casting has unique machining tolerances, you should always treat a shim installation as a custom measurement process rather than assuming old shim stacks will fit a new replacement starter.

What happens if I use too many shims on my starter?

Using too many shims pushes the starter motor too far away from the flywheel ring gear. This excessive backlash causes the gear teeth to barely touch tips during cranking, leading to severe impact shock, chipped ring gear teeth, stripped starter drives, and a harsh clattering noise.

Do mini-high-torque starters require alignment shims?

Many aftermarket gear-reduction mini-starters utilize an adjustable mounting block with a rotating 360-degree flange rather than traditional flat shims. Instead of adding shims, you rotate the starter body within its mounting ring to establish the correct radial clearance before locking down the alignment bolts.

Ensure Flawless Powertrain Longevity Today

Mastering the precise alignment of your starter motor with the flywheel protects your entire drivetrain from costly ring gear replacements and electrical burnout. Equip yourself with the right shims and feeler gauges to dial in factory-spec tolerances on your next installation.
