How To Adjust A Well Pump Pressure Switch For Optimal Water Flow

Adjusting a well pump pressure switch requires cutting power at the breaker, removing the switch cover, and turning the large differential and cut-in nuts to alter water pressure settings. Standard residential systems typically operate on a 30/50 or 40/60 psi range, meaning the pump activates at the lower number and deactivates at the higher number.

Pre-Operation & Equipment Checklist

Before touching any electrical components or plumbing systems connected to your submersible or jet well pump, proper preparation is essential to prevent electrical shock or system damage. A pressure switch acts as the automated brain of your water system, translating water pressure changes into electrical contact closures that turn the pump motor on and off.

• Essential Gear, Tools, and Materials:


  • Flathead and Phillips screwdrivers
  • Needle-nose pliers
  • Multimeter or non-contact voltage tester (for safety verification)
  • Flashlight or headlamp
  • Adjustable wrench (if pump removal or pipe inspection is needed)
  • Pressure gauge (to attach to a hose bib for accurate reading)
• Mandatory Prerequisite Knowledge and Standards:


  • Turn off power at the main electrical panel and verify zero voltage before opening the switch cover.
  • Understand your tank's pre-charge pressure, which must always be maintained at exactly 2 psi below the pump cut-in pressure.
  • Standard maximum adjustments should not exceed factory limits unless specified by the pump manufacturer.
• Estimated Budget and Duration Benchmarks:


  • Total cost: Zero dollars if tools are on hand, or up to twenty dollars for a standard replacement switch.
  • Time commitment: 20 to 30 minutes for diagnostics, adjustment, and pressure testing.

Step-by-Step Pressure Switch Adjustment Workflow

Step 1: Locate and Isolate the Power Source

Locate your pressure switch, which is typically mounted on a small nipple on the main water line right near the pressure tank. Walk to your main electrical service panel and switch off the dedicated circuit breaker powering the well pump.

Warning: Never attempt to adjust or inspect a pressure switch while the electrical circuit is energized. Line voltage inside the switch housing is typically 115V or 230V and poses a severe electrocution hazard.

Step 2: Remove the Switch Housing Cover

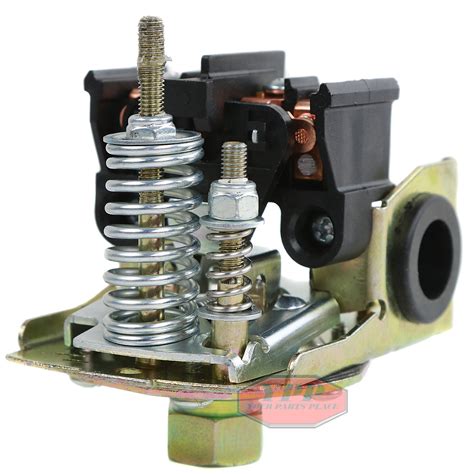

Use a screwdriver or your fingers to loosen the securing screw holding the plastic cover of the pressure switch in place. Lift the cover straight up and off to expose the internal brass contacts, springs, and adjustment nuts. Inside, you will see two springs: a large main spring and a smaller differential spring.

Step 3: Identify the Adjustment Nuts

Locate the large adjustment nut (the main spring assembly), which controls both the cut-in pressure and, indirectly, the cut-out pressure. Locate the smaller differential nut next to it, which sets the gap between the cut-in and cut-out thresholds.

Pro-Tip: Take a clear digital photograph of the spring positions before making any turns so you have a baseline reference point to return to if needed.

Step 4: Turn the Nuts to Adjust Settings

To raise both the cut-in and cut-out pressures, use a wrench or pliers to turn the large adjustment nut clockwise. Each full 360-degree clockwise turn typically increases pressure by about 2 to 3 psi. If you want to change the spread between turning the pump on and off, turn the smaller differential nut clockwise to increase the cut-out pressure without changing the cut-in pressure, or counterclockwise to narrow the gap.

Step 5: Test and Verify System Performance

Replace the plastic cover temporarily, restore power at the electrical breaker, and open a downstream faucet to drain water until the pump kicks on. Watch an attached pressure gauge to record the exact psi where the pump starts and where it shuts off. Repeat the power-off and adjustment cycle if fine-tuning is required to hit your target operating window.

Well Pump Pressure Switch Specifications & Settings Matrix

Common Site Failures & Field Fixes

• Rapid Cycling (Switch Clicking On and Off Repeatedly):


  • Root Cause: Waterlogged pressure tank where the internal bladder has failed or lost its air charge, causing immediate pressure spikes when the pump runs.
  • Actionable Fix: Turn off power, drain the tank completely, check the Schrader valve, and repressurize the air bladder to 2 psi below the cut-in pressure. Replace the tank if the bladder is ruptured.
• Pump Fails to Shut Off:


  • Root Cause: Debris, sand, or mineral scale wedged inside the small pressure inlet port beneath the switch, preventing the diaphragm from lifting and breaking electrical contacts.
  • Actionable Fix: Cut power, disconnect the switch from the pipe nipple, and use a piece of wire or pipe cleaner to clear out iron bacteria, sand, and sediment clogs.
• Burned or Pitted Electrical Contacts:


  • Root Cause: Electrical arcing due to loose terminal screws, low voltage supply, or a failing switch mechanism drawing too much amperage.
  • Actionable Fix: Inspect the internal contacts; if they are blackened, deeply pitted, or fused together, replace the entire pressure switch unit immediately.

Frequently Asked Questions

Which way do I turn the nut to increase well water pressure?

Turn the large adjustment nut clockwise (to the right) to increase both the cut-in and cut-out pressures. Turning it counterclockwise (to the left) will decrease the pressure settings. Always make adjustments in small increments of a half-turn at a time.

Why is my well pump pressure switch clicking rapidly?

Rapid clicking, known as short-cycling, usually indicates that your pressure tank is waterlogged and has lost its air cushion. This can also happen if there is a major leak in the distribution plumbing or if the pressure switch differential is set too narrow.

Can I adjust a 30/50 pressure switch to a 40/60 setting?

Yes, most standard residential pressure switches can be adjusted between standard ranges by tightening the large spring nut. However, you must also increase the air pressure in your pressure bladder tank to match the new lower cut-in threshold.

What is the difference between cut-in and cut-out pressure?

Cut-in pressure is the low water pressure threshold at which the switch triggers the pump to turn on. Cut-out pressure is the high threshold where the switch cuts power to stop the pump once the pressure tank is full.

How long does a well pump pressure switch last?

A standard mechanical pressure switch typically lasts between 5 to 10 years depending on water quality, mineral content, and pump cycling frequency. Units exposed to harsh environments or heavy iron content often fail sooner due to clogged ports and burned contacts.

Keep your residential water system running reliably by performing periodic pressure checks and replacing worn switches at the first sign of electrical contact failure.
