How To Adjust A Soft Close Hinge For Perfect Cabinet Door Alignment

Adjusting a soft close hinge involves manipulating three specific adjustment screws—depth, lateral, and vertical—to ensure the cabinet door sits flush and closes silently. By making incremental turns of these screws, you can correct sagging, uneven gaps, or doors that fail to engage the soft-close mechanism properly.

Essential Preparation and Tool Requirements

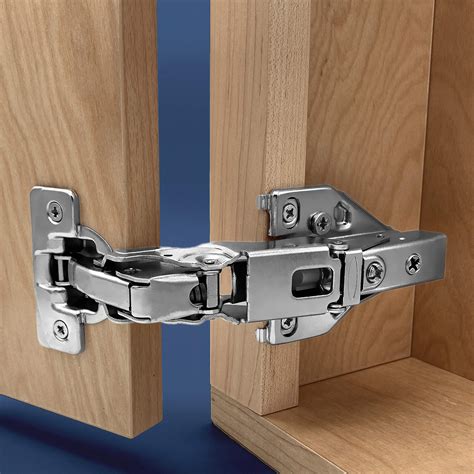

Before beginning the adjustment process, it is vital to understand that modern European-style concealed hinges operate on a three-axis system. Most adjustments require only basic hand tools, though having a steady hand and a clear line of sight is essential to avoid over-tightening, which can strip the internal threading of the hinge arm.

• Essential Tools: A standard No. 2 Phillips-head screwdriver is the industry standard for these adjustments. Some manufacturers utilize Pozi-drive screws, which resemble Phillips heads but require a specific tip to prevent cam-out.
• Prerequisite Knowledge: You must identify your hinge type. Most residential soft-close systems use a cam-adjustment mechanism, while older or entry-level models may utilize slotted adjustment plates.
• Estimated Duration: A standard adjustment takes 5 to 10 minutes per door, assuming the mounting plate is securely attached to the cabinet frame.
• Safety Note: Always support the weight of the door with your free hand or a support block while adjusting, as loosening the mounting plate screws can cause the door to drop suddenly.

Mastering the Three-Way Hinge Adjustment Workflow

Adjusting a cabinet door is a game of millimeters. Changes should be made in quarter-turn increments, followed by a test of the door swing to gauge the impact of the modification.

Step 1: Adjusting Lateral Positioning (Side-to-Side)

The lateral adjustment screw is typically the front-most screw located on the hinge arm, closest to the door itself. Rotating this screw moves the door left or right relative to the cabinet box.

1. Turning the screw clockwise moves the door toward the center of the cabinet frame (closing the gap between doors).
2. Turning the screw counter-clockwise moves the door away from the center (widening the gap).
3. If you have two hinges on one door, ensure you make proportional adjustments to both hinges to maintain a parallel alignment.

Step 2: Refining Depth Positioning (In-and-Out)

The depth adjustment screw is usually located toward the rear of the hinge arm, often featuring an eccentric cam mechanism. This controls how flush the door sits against the front face of the cabinet box.

1. Loosen the screw slightly and slide the hinge arm backward or forward to set the door depth.
2. Tighten the screw once the desired flushness is achieved.
3. If your hinge uses a cam-adjust feature, simply rotating the screw will automatically push or pull the hinge arm, allowing for micro-adjustments without manually sliding the plate.

Step 3: Calibrating Vertical Alignment (Up-and-Down)

Vertical adjustments are controlled by the screws located on the mounting plate, which is the piece fixed directly to the interior side wall of the cabinet. These screws are typically found in vertical slots.

1. Loosen the two screws on the mounting plate just enough to allow the hinge to move up or down.
2. Shift the door to the desired height, ensuring the top edge is level with neighboring doors.
3. Re-tighten both screws firmly.

Warning: Do not fully remove these screws, as the mounting plate may disengage, causing the cabinet door to fall and potentially damaging the finish of your flooring or the door itself.

Technical Comparison of Hinge Adjustment Parameters

The following table outlines the impact of specific screw manipulations on the cabinet door’s position, providing a quick reference for the adjustment process.

Common Site Failures and Field Fixes

Even with precise adjustments, physical variables in the cabinet construction can cause recurring issues. Addressing the root cause is necessary for a permanent fix.

• Issue: Door Hits the Adjacent Frame or Door


  • Root Cause: Lateral adjustment is too far inward.
  • Actionable Fix: Adjust the lateral screw counter-clockwise in small increments until the door clears the frame without binding.
• Issue: Door Pops Open or Doesn't Close Flush


  • Root Cause: The depth adjustment is set too far forward, or the mounting plate is misaligned.
  • Actionable Fix: Turn the depth adjustment screw clockwise to pull the door flush against the frame. Ensure the hinge arm is fully seated in the mounting plate.
• Issue: Soft-Close Mechanism is Non-Responsive


  • Root Cause: The door is hitting an obstruction, or the internal speed regulator is set to the weakest position.
  • Actionable Fix: Check for debris in the hinge pocket. If the mechanism has a dial or switch, move it to a higher setting to increase the dampening force.

Frequently Asked Questions

How do I know if my hinge is actually a soft-close model?

Look for a small piston or a hydraulic cylinder integrated into the hinge arm. If the hinge has a switch or a dial on the side of the arm, this usually allows you to adjust the dampening speed of the soft-close feature.

Can I adjust the speed of the soft-close mechanism?

Yes, most premium hinges feature a dedicated adjustment screw or dial for closing speed. Locate the small symbol representing a plus or minus sign and rotate it to increase or decrease the hydraulic resistance during the closing stroke.

Why does my door sag after I adjust it?

Sagging is often caused by loose mounting plate screws or a hinge that has reached the end of its adjustment range. Check that all mounting screws are tightened to the substrate and verify that the door weight does not exceed the load rating of the hinges installed.

Should I adjust both hinges on the door equally?

For lateral and depth adjustments, it is best practice to adjust both hinges equally to keep the door square. For vertical adjustments, you may need to adjust one hinge more than the other if the door is visibly out of level relative to the top or bottom of the cabinet.

Maintain Your Cabinet Hardware Longevity

Regularly checking your cabinet alignment ensures the longevity of both the hinge mechanism and the door finish by preventing improper collision stress. If you require specialized replacement hinges or further technical consultation for high-end cabinetry, contact a qualified cabinet hardware specialist to ensure compatibility with your specific brand and model.
