Complete Guide On How To Adjust Pressure Switch Well Pump Systems

Adjusting a well pump pressure switch requires cutting power to the system, draining the pressure tank, and systematically turning the large and small adjustment nuts to alter the cut-in and cut-off thresholds. Mastering this calibration process ensures consistent household water pressure, prevents short-cycling, and protects your submersible or jet pump motor from premature mechanical burn-out.

Pre-Operation & Equipment Checklist

Proper execution of a well pump pressure switch adjustment demands strict adherence to electrical safety and the use of precise diagnostic tools. Because standard well systems operate at 115V or 230V and control high-pressure water containers, verifying your setup before touching any mechanical components is mandatory.

• Essential gear, tools, and materials: Multimeter, flathead screwdriver, adjustable wrench or nut driver, flashlight, and a pressure gauge capable of attaching to a hose bib.
• Mandatory prerequisite knowledge and standards: Familiarity with basic electrical safety, understanding of standard residential water pressures (typically 30/50 or 40/60 psi differentials), and confirmation that your pressure tank has an air pre-charge set 2 psi below your cut-in pressure.
• Estimated budget and duration benchmarks: Zero cost if tools are already on hand, or under thirty dollars for a replacement pressure gauge; total project duration ranges from twenty to forty-five minutes.

Step-by-Step Pressure Switch Calibration Process

Step 1: Isolate Electrical Power to the Pump Circuit

Locate the dedicated circuit breaker supplying power to your well pump and flip it to the OFF position. Because well pumps run on high voltage, simply turning off a secondary switch is insufficient; you must completely kill power at the main electrical panel.

Warning: Always verify that power is fully disconnected by testing the pressure switch terminals with a reliable non-contact voltage tester or multimeter before touching any internal components.

Step 2: Drain the Pressure Tank Completely

Go to a nearby hose bib or indoor faucet and open it fully to drain all standing water from the pressure tank. Watch the system pressure gauge drop to zero psi. If the tank is not completely drained of water and pressure, your measurements and subsequent switch adjustments will be entirely inaccurate. Leave the faucet open during the next phase of the mechanical adjustment.

Step 3: Remove the Pressure Switch Cover

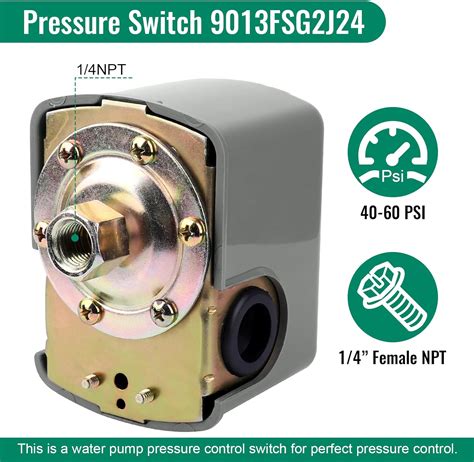

Locate your pressure switch, which is typically mounted directly on a nipple coming off the main water line near the pressure tank. Loosen the retaining screw—usually located on the front or top of the plastic cover—and lift the cover straight off to expose the electrical contacts, springs, and adjustment nuts.

Step 4: Adjust the Main Nut (Cut-In Pressure)

Identify the large adjustment nut (Nut 1), which controls the cut-in pressure (the low pressure point where the pump kicks on).

1. Using an adjustable wrench, turn the large nut clockwise to increase both the cut-in and cut-off pressures simultaneously, or counter-clockwise to decrease both pressures.
2. A single full 360-degree turn typically alters the pressure threshold by approximately 2 to 3 psi. Make incremental adjustments, generally no more than a half-turn at a time.

Step 5: Adjust the Differential Nut (Cut-Off Pressure)

Identify the smaller adjustment nut (Nut 2), which controls the differential—the gap between the cut-in and cut-off pressures.

1. Turning the small nut clockwise increases the cut-off pressure while leaving the cut-in pressure relatively steady, thus widening the operational window.
2. Turning it counter-clockwise narrows the differential. Standard residential systems maintain a strict 20 psi differential, such as switching on at 30 psi and off at 50 psi, or 40 psi and 60 psi.

Step 6: Test and Verify System Operation

Reinstall the plastic protective cover over the pressure switch terminals, close the open faucets, and restore power at the main electrical breaker panel. Watch the system pressure gauge as the pump refills the tank. Note the exact psi value where the pump automatically clicks on (cut-in) and where it turns off (cut-off). If the readings do not match your target requirements, repeat the power-down and draining process to fine-tune the nuts further.

Pressure Switch Settings and Performance Matrix

Common Site Failures and Field Fixes

• Symptom: Short-Cycling (Rapid Clicking)


  • Root Cause: The pressure tank has become waterlogged (lost its air charge), or the differential setting on the pressure switch is set too narrow.
  • Actional Fix: Shut off power, drain the tank completely, check and reset the air bladder pre-charge to 2 psi below cut-in, and inspect the switch differential settings.
• Symptom: Pump Fails to Turn On


  • Root Cause: Cut-in pressure is adjusted higher than the well pump's actual mechanical capacity, or sediment has clogged the pressure switch inlet pipe.
  • Actional Fix: Back off the main adjustment nut counter-clockwise to lower the cut-in threshold, and clear any debris out of the small nipple feeding the switch.
• Symptom: Pump Fails to Turn Off


  • Root Cause: The cut-off setting is adjusted beyond the pump's maximum pressure capability, or the switch contacts are fused shut from an electrical short.
  • Actional Fix: Lower the cut-off threshold via the adjustment nuts, or replace the entire pressure switch if the electrical contacts are visibly burned or pitted.

Frequently Asked Questions

What tools do I need to adjust a well pump pressure switch?

You only need a flathead screwdriver or nut driver to remove the cover, an adjustable wrench to turn the calibration nuts, a flashlight, and a multimeter for electrical verification. A standard tire pressure gauge is also necessary for checking the bladder tank air pressure separately.

How many turns equal one PSI on a pressure switch?

Generally, one full 360-degree turn of the large adjustment nut changes the pressure threshold by roughly 2 to 3 psi. Always make small, incremental adjustments of a half-turn or less to avoid overshooting your target operational range.

Why won't my well pump reach the new cut-off pressure?

If your pump continually runs without shutting off, you have likely adjusted the cut-off threshold higher than the maximum head pressure your pump is capable of generating. Back the adjustment nuts down immediately to prevent the pump motor from overheating and burning out.

Should I adjust the large nut or the small nut first?

Always adjust the large nut first, as it sets the baseline cut-in pressure and shifts the entire operating window up or down. Use the small differential nut second to fine-tune the span between when the pump turns on and when it turns off.

Optimize Your Water System Performance Today

Mastering your well pump pressure switch calibration guarantees reliable household water flow while shielding your expensive submersible pump from continuous mechanical strain. Take control of your home's water delivery system safely and efficiently by applying these precise adjustment methods today.
