How To Adjust A Pendulum Clock For Precision Timekeeping
Regulating a pendulum clock involves manipulating the bob’s vertical position to alter the effective length of the pendulum, thereby changing the oscillation frequency to match standard time. By turning the rating nut to move the bob upward, you increase the speed of the clock, while moving it downward slows the beat to correct for time loss.
Essential Preparation and Maintenance Prerequisites
Before attempting to regulate the movement, ensure the clock is placed on a level surface and the case is secured to the wall or floor to prevent vibrational interference. Mechanical clocks operate on the principle of gravity and leverage; if the housing is skewed, the escapement will suffer from uneven "beat," rendering even the most precise pendulum adjustments ineffective.
- Essential Tools and Supplies:
- A high-precision digital reference clock (atomic time sync).
- A small piece of masking tape or a fine-point permanent marker for marking current nut positions.
- A soft microfiber cloth to prevent transferring skin oils to brass surfaces.
- Chronometer oil (synthetic clock oil) if the movement has been dormant for over two years.
- Mandatory Standards:
- The clock must be in "beat"—the rhythmic ticking must be perfectly equidistant. If the beat is uneven, pendulum adjustment will not solve the underlying timekeeping drift.
- Temperature consistency is critical; pendulum rods constructed of steel expand in heat and contract in cold, which naturally alters the period of oscillation.
- Benchmarks:
- Duration: Allow a 24-hour observation window between each individual adjustment.
- Accuracy Expectation: A well-maintained antique pendulum clock should typically maintain accuracy within one to two minutes per week.
Systematic Procedural Workflow for Pendulum Regulation
Step 1: Establishing the Baseline Observation
Synchronize your clock to a reliable atomic time source. Record the exact time difference after a full 24-hour cycle. Do not attempt to adjust the rate until you have established whether the clock is consistently gaining or losing time over a complete solar day.
Step 2: Calculating the Adjustment Magnitude
Most pendulum rating nuts feature a threaded rod. A standard rule of thumb for many grandfather or wall clocks is that one full rotation of the rating nut equates to approximately 30 seconds to one minute of adjustment per day, depending on the thread pitch. If your clock is losing 4 minutes per day, you need to calculate the approximate number of turns required based on your specific movement's sensitivity.
Pro-Tip: If your clock lacks clear markings, use a marker to place a single dot on the rating nut. This provides a visual anchor point so you can count exact rotations or partial turns accurately.
Step 3: Modifying the Pendulum Length
Open the clock case and support the pendulum bob with one hand to remove weight from the rating nut. Use your other hand to gently turn the nut. To speed up a clock that is losing time, rotate the nut to move the bob upward toward the clock movement. To slow down a clock that is gaining time, rotate the nut to move the bob downward, effectively lengthening the pendulum rod.
Warning: Never force the rating nut if it feels seized. Over-tightening or forcing a stubborn nut can strip the fine threads on the pendulum rod, which often requires a complete rod replacement to rectify.
Step 4: Verification and Stabilization
After the adjustment, allow the clock to run for another 24-hour period. Because mechanical clocks are sensitive to thermal expansion and humidity, it may take three to four days of iterative adjustments to reach the "sweet spot" of precision. Avoid the urge to make large, multiple-turn adjustments, as this often leads to overcompensation and an erratic timekeeping cycle.

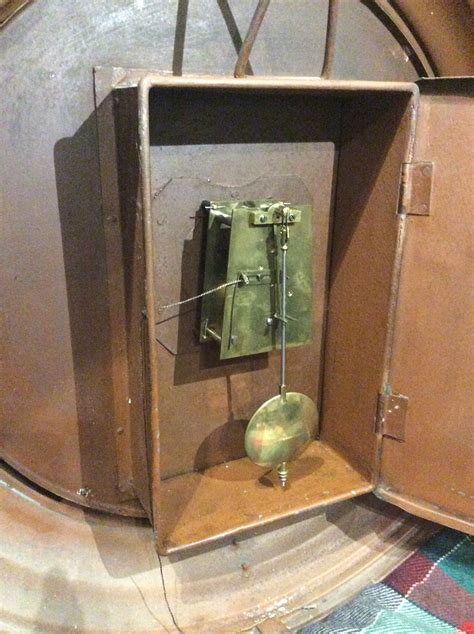

Pendulum Clock Uneven Tick at Joshua Mayes blog
Technical Parameters of Pendulum Performance
The following table outlines the correlation between environmental conditions, mechanical state, and timekeeping accuracy. Use these metrics to determine if the pendulum needs adjustment or if the movement requires professional servicing.
| Condition Factor | Observed Symptom | Technical Root Cause | Recommended Action |
|---|---|---|---|
| Pendulum Length | Clock loses time | Pendulum is too long | Raise the bob via the rating nut |
| Pendulum Length | Clock gains time | Pendulum is too short | Lower the bob via the rating nut |
| Escapement | Uneven tick-tock | Out of beat | Level the clock case/base |
| Temperature | Gains time in winter | Thermal contraction | Lower bob to account for rod shortening |
| Oil/Lubrication | Erratic stopping | High friction/gummed oil | Professional cleaning and re-oiling |
Troubleshooting Common Timekeeping Failures
- The Clock Stops Periodically:
- Root Cause: The pendulum bob is striking the interior of the case, or the movement is severely under-powered.
- Actionable Fix: Ensure the case is plumb. Check the suspension spring for kinks or hairline fractures that prevent consistent oscillation.
- Inconsistent Timekeeping despite Adjustments:
- Root Cause: The escapement is "out of beat," meaning the interval between the "tick" and the "tock" is not equal.
- Actionable Fix: Listen closely to the rhythm. If unequal, gently tilt the clock case until the sound is perfectly balanced. If the case cannot be tilted, use the leveling feet to adjust the geometry.
- Rating Nut Will Not Turn:
- Root Cause: Oxidation on the threaded rod or grit in the nut threads.
- Actionable Fix: Apply a minuscule drop of high-quality synthetic clock oil to the threads. Let it penetrate for an hour, then attempt to turn the nut back and forth in tiny increments to break the bond.
Frequently Asked Questions
How do I know if my clock is gaining or losing time?
You must track the clock against a known atomic time source for 24 hours. If the clock shows a later time than the reference source, it is losing time and the pendulum must be shortened; if it shows an earlier time, it is gaining and must be lengthened.
Can I adjust the pendulum while the clock is running?
Yes, you can adjust the rating nut while the clock is running, provided you support the weight of the pendulum bob with your hand. Ensure you do not accidentally stop the pendulum during the adjustment, as this can strain the suspension spring.
Why does my clock keep different time in summer and winter?
Metal pendulum rods expand in heat and contract in the cold. This physical change in length alters the oscillation period, necessitating minor seasonal adjustments to the rating nut to maintain peak accuracy.
What is a "suspension spring" and why is it important?
The suspension spring is the thin, flexible metal strip that connects the pendulum to the movement. It is the most fragile part of the assembly; if it is bent, kinked, or rusted, the pendulum cannot swing with the necessary consistency for accurate timekeeping.
Maintaining the precision of your timepiece is a rewarding craft that preserves the integrity of mechanical horology. Should you find that manual regulation fails to produce consistent results, consult a horologist to inspect the movement for worn bushings or escapement fatigue.
