How To Adjust Coilovers: The Complete Professional Tuning Guide
Adjusting coilovers requires a methodical approach to ride height, spring preload, and damping forces to achieve optimal vehicle handling and dynamic balance. Mastering this process transforms a compromised suspension setup into a finely tuned chassis capable of predictable cornering and superior grip.
Preparation and Tooling for Suspension Tuning
Successful coilover adjustment relies on precision preparation, proper loading conditions, and clean components. Rushing through the setup or ignoring corner weights will result in an imbalanced chassis, erratic steering response, and premature damper wear.
- Essential Gear and Tools: Floor jack, heavy-duty jack stands, calibrated torque wrench, coilover adjustment spanner wrenches, wire brush, penetrating fluid, tape measure or ride-height gauge, and a notebook for logging measurements.
- Mandatory Prerequisites: The vehicle must be parked on a completely level surface with a full tank of fuel. Suspension bushings must be pre-loaded and torqued only at final ride height to prevent binding and premature bush degradation.
- Budget and Duration Benchmarks: Professional setup time ranges from two to four hours for a complete corner-balancing and ride-height adjustment. Budget for a professional four-wheel alignment immediately following the suspension modifications.
Step-by-Step Coilover Tuning Procedure
Step 1: Cleaning and Thread Preparation
Raise the vehicle securely on four jack stands and remove all four wheels to gain unobstructed access to the damper assemblies. Use a wire brush to thoroughly clean any accumulated road grime, salt, or debris from the threaded bodies of the coilover dampers. Apply a liberal amount of penetrating fluid or anti-seize compound to the locking collars and body threads to ease collar rotation and prevent thread galling.
Warning: Never use an impact gun or hammer on coilover locking collars, as this will shatter the aluminum flanges and ruin the damper body threads.

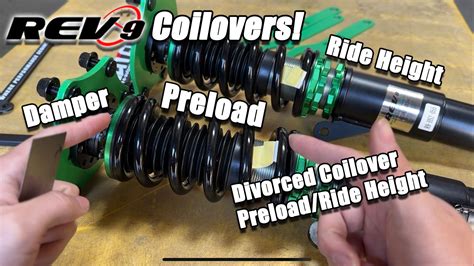

Step 2: Adjusting Spring Preload
Measure the length of the main spring while it is completely uncompressed on the shock body, known as free length. Loosen the lower locking collar and spin the upper spring perch down until it just makes contact with the spring with zero play, establishing zero preload. For standard street setups, spin the perch down an additional two to four millimeters to apply minimal preload, ensuring the spring does not unseat during full droop. Tighten the upper locking collar firmly against the spring perch using the supplied spanner wrenches while holding the lower collar.
Step 3: Setting Target Ride Height
Measure the distance from the bottom edge of the wheel rim vertically up to the center of the wheel arch on all four corners. Loosen the lower locking collar located above the lower bracket mount on threaded-body coilovers. Rotate the entire damper body clockwise to lower the vehicle or counter-clockwise to raise it, referencing your target ride height specifications.
Pro-Tip: Always adjust ride height by turning the entire shock body rather than altering spring preload, as changing preload alters suspension travel and handling dynamics.
Step 4: Securing Locking Collars and Damping Adjustment
Once the target ride height is achieved across all four corners, lock the lower collar against the bottom mount or lower spring perch using a hammer and spanner wrench in tandem, ensuring zero movement during operation. Locate the damping adjustment knobs at the top of the piston shafts or at the base of the damper bodies. Turn the adjusters fully clockwise to reach the absolute stiffest setting, then back them off counter-clockwise by the manufacturer's recommended number of clicks for street or track use.
What Is Damper Adjustment In Coilovers at Marvin Peters blog
Suspension Tuning Parameters and Specifications
| Adjustment Parameter | Street Setup Benchmark | Track / Competition Benchmark | Potential Consequence of Error |
|---|---|---|---|
| Spring Preload | 2mm to 4mm | 0mm to 2mm | Unseated springs on droop or harsh ride quality. |
| Ride Height | 10mm to 20mm drop from stock | 25mm to 40mm drop (chassis-dependent) | Accelerated CV axle wear, bottoming out, or poor bump steer. |
| Rebound Damping | Middle of adjustment range | 75% to 90% towards maximum stiffness | Undamped oscillations or overly harsh impact absorption. |
| Compression Damping | Soft to middle range | Stiff to control high-speed body roll | Loss of tire contact patch over bumps or severe comfort loss. |
Common Tuning Failures and Field Fixes
- Seized Locking Collars: Corrosion and road grit often lock aluminum collars onto steel or aluminum bodies.
- Root Cause: Galvanic corrosion and lack of anti-seize application during the initial installation.
- Actionable Fix: Soak the threads overnight with a high-penetration fluid, gently apply heat with a heat gun to expand the outer collar, and use a brass punch with a mallet to shock the collar loose.
- Unwanted Chassis Squeaks and Clunks: Loose top mounts or unsecured locking collars cause sharp metallic noises over bumps.
- Root Cause: Vibration backing off the lower locking collars or loose top hat retaining nuts.
- Actionable Fix: Re-torque all locking collars using two spanner wrenches in opposition, and inspect top hat pillow-ball bearings for play.
- Sluggish or Unresponsive Turn-In: The vehicle feels lazy on initial steering input.
- Root Cause: Insufficient rebound damping or excessive rake angle upsetting the aerodynamic and weight distribution balance.
- Actionable Fix: Increase front rebound damping by two to four clicks and verify front-to-rear rake measurements.
Frequently Asked Questions
Does adjusting ride height change wheel alignment?
Yes, altering ride height directly impacts camber, toe, and caster angles through the suspension geometry arc. Raising or lowering a vehicle changes the effective length of control arms and tie rods, necessitating a professional four-wheel alignment after any height adjustment.
How do I know if my coilover spring preload is correct?
Correct preload means the spring is held firmly between the upper perch and lower collar without excess tension when the suspension is at full droop. Excessive preload raises the ride height without increasing spring rate, while insufficient preload causes the spring to rattle when the wheel lifts off the ground.
Should street coilovers be set stiffer in the front or the rear?
Most street setups require slightly stiffer settings in the front to promote stable understeer characteristics and predictable corner entry. Track setups often run stiffer rear rates or damping to promote rotation and reduce understeer, depending on drive layout and tire selection.
Can I adjust coilovers while they are still on the car?
Ride height, spring preload, and damping forces can all be adjusted while the coilovers remain installed on the vehicle. However, adjusting ride height and preload requires lifting the vehicle, removing the wheels, and using specialized spanner wrenches to access the locking collars.
Master Your Vehicle Dynamics Today
Fine-tuning your suspension geometry unlocks the true potential of your chassis for both street performance and track days. Take control of your handling characteristics by logging your adjustments, testing incrementally, and dialing in your ideal setup today.
