How To Adjust Auto Slack Adjusters: A Comprehensive Maintenance Guide For Air Brake Systems

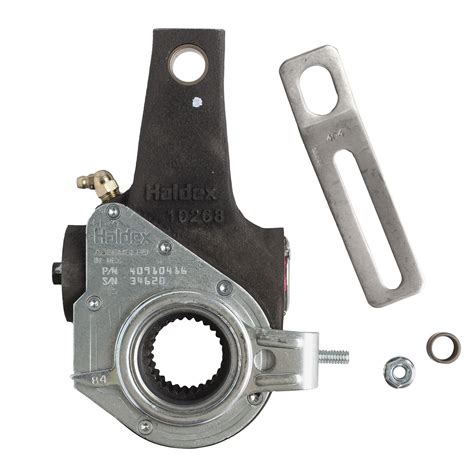

Automatic slack adjusters are designed to maintain a constant lining-to-drum clearance throughout the life of the brake lining, but they require periodic manual verification and lubrication to ensure optimal stopping performance. Technicians must strictly follow the Technology and Maintenance Council (TMC) Recommended Practice RP 609, ensuring that the adjuster pawl is correctly engaged and that brake stroke remains within federal compliance limits to prevent OOS (Out-of-Service) violations.
Prerequisite Safety and Diagnostic Preparation
Before attempting any adjustment, you must recognize that automatic slack adjusters are intended to be self-adjusting; a manual adjustment is often a symptom of an underlying mechanical failure. If an adjuster is not maintaining the correct stroke, you must first diagnose the root cause—such as worn clevis pins, seized rollers, or damaged internal clutch mechanisms—rather than simply performing a manual reset.
- Essential Equipment and Tools:
- Heavy-duty wheel chocks to secure the vehicle on a level surface.
- 7/16-inch or 1/2-inch wrench for the adjustment nut (depending on the manufacturer).
- A brake stroke indicator or a ruler for measuring slack.
- High-temperature NLGI No. 2 grade chassis grease and a manual grease gun.
- A pry bar (or "slack bar") for verifying free play.
- Safety glasses and high-visibility work gloves.
Prerequisite Knowledge and Benchmarks:
- Technical Standard: FMVSS 121 (Federal Motor Vehicle Safety Standards for Air Brake Systems).
- Compliance Threshold: At 90-100 PSI, the pushrod stroke on a Type 30 brake chamber must typically be within 1.5 to 2.0 inches, depending on the specific chamber size and type.
- Estimated Duration: 15–20 minutes per axle.
Systematic Procedure for Adjuster Verification and Calibration
Step 1: Secure the Vehicle and Release the Parking Brake
Position the vehicle on a flat, concrete surface. Chock the wheels securely in both directions. Drain the air system or ensure the tractor-trailer is disconnected if testing a trailer. You must release the parking brake to allow the slack adjuster to move freely, but ensure the wheels are blocked so the vehicle cannot roll.
Step 2: Measure the Current Pushrod Stroke
With the air system pressurized to 90–100 PSI, have an assistant make a full-service brake application. Using a ruler or specialized brake stroke indicator, measure the distance from the face of the air chamber to the center of the clevis pin. Record the "applied" measurement. Release the brake, measure the "released" position, and calculate the difference to determine the total stroke.
Warning: Never measure the stroke with the parking brake applied; this will lead to inaccurate readings and potential safety risks. Always ensure the system is at full operating pressure to test the stroke accurately.
Step 3: Inspect for Mechanical Wear
Before adjusting, perform a visual and physical inspection. Check the clevis pin for excessive wear or grooves. Ensure the internal rollers are not flat-spotted. Inspect the anchor bracket and the mounting hardware. If the clevis pin shows significant "necking" or the adjuster body shows signs of grease leakage, the unit has reached its service life and must be replaced, not adjusted.
Step 4: Perform the Manual Adjustment
If the stroke exceeds the manufacturer's limit, use your wrench to turn the adjustment nut. Most automatic slack adjusters require you to lift or depress the spring-loaded pawl (the small locking mechanism on the back of the housing) to release the internal clutch. Turn the nut in the direction that moves the pushrod back toward the air chamber until the shoes contact the drum, then back the nut off by one-half turn (approximately 180 degrees).
Pro-Tip: If the adjuster does not "click" when you turn the nut, or if the nut spins freely without moving the pushrod, the internal gear assembly is stripped, and the unit is non-functional. Replace the entire assembly immediately.
Step 5: Lubrication and Functional Testing
Once the adjustment is set, apply fresh grease through the zerk fitting until you see clean grease purge from the relief port or the boot. This purges old contaminants and ensures the internal worm gear remains free. Re-test the brake application to ensure the stroke is now within the specified range for your chamber size.
Slack Adjuster For Meritor _ How To Adjust Meritor Slack - NOSXAT
Technical Specifications and Brake Stroke Limits
The following table summarizes the maximum legal stroke limits for common air brake chamber types. Exceeding these measurements is a primary cause for roadside citations during Level 1 inspections.
| Chamber Type | Size / Type | Max Stroke Limit (Inches) |
|---|---|---|
| Type 12 | Standard | 1.375 Inches |
| Type 16 | Standard | 1.75 Inches |
| Type 20 | Standard | 1.75 Inches |
| Type 24 | Standard | 1.75 Inches |
| Type 30 | Standard | 2.00 Inches |
| Type 36 | Long Stroke | 2.25 Inches |
Field Troubleshooting and Component Failure Remedies
When automatic slack adjusters fail to perform, it is rarely a calibration issue and almost always a mechanical failure. Addressing these common field scenarios prevents repetitive maintenance cycles.
Scenario: The Adjuster "Backs Off" Excessively
Root Cause: Worn or seized internal clutch mechanism caused by improper or infrequent lubrication.
Actionable Fix: Remove the adjuster and inspect the internal clutch for pitting. If evidence of seizure exists, replace the unit. Do not attempt to repair internal gearing.
Scenario: Excessive Stroke Despite Manual Adjustment
Root Cause: Worn brake linings or drum diameter expansion beyond service limits.
Actionable Fix: Measure the drum thickness and lining depth. If the foundation brakes are out of spec, no amount of adjustment will bring the stroke into range. Replace brake shoes and turn or replace drums.
Scenario: Slack Adjuster Pawl is Stuck
Root Cause: Corrosion buildup inside the pawl housing due to water intrusion.
Actionable Fix: Use a high-penetrating lubricant to free the pawl. If it remains seized, the unit must be replaced to ensure the automatic adjustment feature remains active.
Frequently Asked Questions
Why does my slack adjuster keep needing manual adjustment?
Automatic slack adjusters are designed to be "set and forget." If you find yourself manually adjusting them frequently, the internal clutch is likely worn out or the brake foundation (shoes/drums/pins) has significant wear that prevents the adjuster from catching the next tooth on its internal ratchet.
Can I mix automatic and manual slack adjusters on the same axle?
No. Federal regulations and safety standards strictly forbid mixing slack adjuster types on the same axle. Doing so results in uneven braking force, which causes the vehicle to pull to one side during emergency stops.
Does "greasing" the slack adjuster actually help it adjust?
Yes. Automatic slack adjusters rely on the grease to move the internal worm gear and the clutch assembly. If the grease is hardened or contaminated, the adjuster becomes sluggish and fails to self-calibrate during normal brake applications.
How do I know if I have a "long-stroke" air chamber?
Long-stroke chambers are identified by a square-shaped air chamber port or a tag on the chamber body. They have a greater maximum stroke capacity than standard chambers, and using standard measurement criteria may result in a false "out-of-service" finding.
For professional fleet maintenance or to source high-quality replacement slack adjusters, ensure you consult your vehicle’s OEM service manual for specific torque and installation requirements. Regular inspection intervals of 3,000 to 5,000 miles are the industry standard for maintaining consistent, safe braking performance.
