How To Add Percentage To Pie Chart In Excel
Displaying percentage labels directly on a pie chart in Microsoft Excel transforms raw categorical numbers into immediately digestible visual data for stakeholders. By customizing the Chart Elements and modifying the underlying number formatting properties, you can eliminate manual calculations and ensure your data visualization meets professional presentation standards.
Prerequisites for Excel Percentage Data Visualization
Before modifying your visual layout, you must establish a clean tabular structure that Excel can interpret correctly for proportional mapping. A standard Excel pie chart relies on a single data series where values represent parts of a whole, making data integrity vital for accurate calculations.
- Essential Tools: Microsoft Excel (Office 365, Excel 2019, Excel 2021, or Excel for Web).
- Mandatory Prerequisite Knowledge: Basic understanding of spreadsheet data ranges, cell formatting menus, and the difference between raw counts and calculated percentages.
- Estimated Duration: 2 to 5 minutes from raw data table to finalized percentage-labeled chart.
Step-by-Step Guide to Inserting and Formatting Percentage Labels
Step 1: Create the Initial Pie Chart

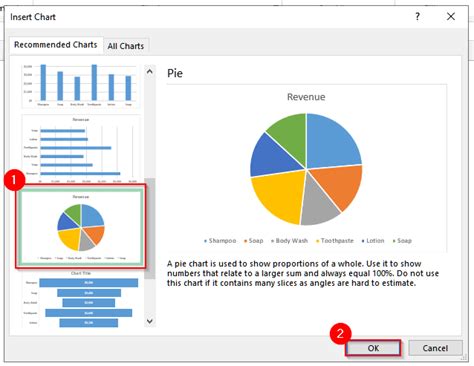

Select your source data range, ensuring you highlight both the category headers and the numerical values. Navigate to the Insert tab on the Excel ribbon, click the Insert Pie or Doughnut Chart icon within the Charts group, and select the standard 2D Pie option. Excel will automatically generate a preliminary chart displaying the default numerical values assigned to each slice.
Pro-Tip: Always ensure your source data table features clear, concise column headers because Excel uses these labels to automatically populate your chart title and legend fields.
Step 2: Access the Chart Elements Menu
Click anywhere inside the chart area to activate it, which triggers the appearance of three floating control icons on the top-right corner of the chart border. Click the green plus sign icon labeled Chart Elements to open the dropdown menu containing structural display options for your data visualization.
Step 3: Enable Data Labels
Locate Data Labels within the expanded Chart Elements checklist and check the corresponding box. Excel will immediately overlay the default values from your data source directly onto the corresponding pie slices. If your source data consists of raw integers rather than calculated percentages, these initial text markers will display those raw numbers, requiring an adjustment to the label options.
Step 4: Configure Percentage Formatting Options
Hover over the Data Labels entry in the Chart Elements menu and click the small right-facing arrow, then select More Options to open the Format Data Labels task pane on the right side of your workspace. Under the Label Options section, uncheck the Value box and check the Percentage box. Excel will automatically compute the relative share of each slice against the total sum of the data series and display those accurate percentage values on your chart.
Warning: Avoid checking both Value and Percentage simultaneously unless your chart is exceptionally large, as overlapping text strings will severely compromise the readability of your visualization.
Step 5: Adjust Label Position and Leader Lines
Within the same Format Data Labels task pane, navigate to the Label Position settings and select Best Fit or Outside End depending on your aesthetic preferences and slice distribution. If you choose Outside End for smaller slices, ensure that Show Leader Lines remains checked to maintain a clear visual connection between the isolated percentage label and its corresponding pie slice.
How To Create a Pie Chart in Power BI
Excel Data Label Configuration Options
| Setting Name | Default State | Recommended Configuration | Primary Purpose |
|---|---|---|---|
| Value | Enabled | Disabled | Displays raw numerical entries; redundant when using percentages. |
| Percentage | Disabled | Enabled | Calculates and displays the proportional share of each data point. |
| Category Name | Disabled | Optional | Embeds category titles directly onto slices, reducing legend reliance. |
| Show Leader Lines | Enabled | Enabled | Connects offset labels to small slices to prevent visual overlap. |
Troubleshooting Common Excel Pie Chart Labeling Issues
- Root Cause: Data labels display decimals with excessive length, such as 33.33333 percent, cluttering the visual space.Actionable Fix: Open the Format Data Labels pane, scroll down to the Number category, and adjust the decimal places spinner down to zero or one to streamline your text output.
- Root Cause: The percentage values total more or less than 100 percent due to manual data entry errors.Actionable Fix: Audit your source data table to verify that your categorical values represent mutually exclusive parts of a singular whole rather than independent metrics.
- Root Cause: Percentage labels overlap completely inside small pie slices, making the text entirely illegible.Actionable Fix: Switch your label position setting from Center to Outside End, or convert your standard pie chart into a Pie of Pie or Bar of Pie layout to segment dense clusters.
Frequently Asked Questions
Why is the percentage option missing from my Excel chart elements?
This issue typically occurs if your chart type is incompatible or if Excel is reading your data series as text strings rather than numeric values. Verify that the cells in your source table are formatted as numbers or currency, then recreate the chart to restore full calculation capabilities.
Can I display both the category name and the percentage on the same slice?
Yes, you can enable multiple label options simultaneously by checking both the Category Name and Percentage boxes inside the Format Data Labels task pane. To keep the display clean, select New Line as the separator so the category sits directly above its corresponding percentage.
How do I change the font size of the percentages on my pie chart?
Click once on any data label within the chart to select the entire series, then use the standard Home tab font controls to adjust the size, color, or weight. Alternatively, right-click the selected labels, choose Font from the contextual menu, and apply your desired typography styling.
What should I do if my pie chart has too many slices to read percentages clearly?
Pie charts lose analytical effectiveness when they exceed five or six categories because human eyes struggle to compare angles accurately. Group your smaller secondary categories into an "Other" bucket in your source table, or switch to a horizontal bar chart to maintain data clarity.
Master your spreadsheet workflows today by applying these precise percentage labeling techniques to build impactful, executive-ready presentations.
